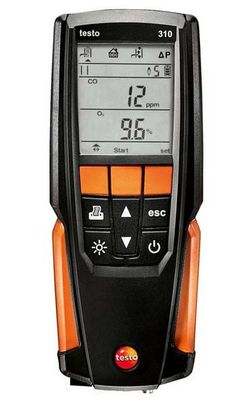

Testo 310 Residential Analyzer Kit - 0563 3100 01
Item #:
0563-3100-01
Brand:
Testo
Share this product:
0563 3100 01 310 Residential Analyzer Kit by Testo
The testo 310 has two measurement cells for O2 and CO, and a temperature sensor integrated into the flue gas probe. The gas sensors measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature. From these data, all relevant measurement parameters such as CO2 value, degree of effectivity and flue gas loss are calculated. The instrument stands out thanks to its easy handling and simple menu structurey. You can read off the measurement values confidently and conveniently from the well-lit display, even in bad light conditions. The fuels are stored not just as numbers, but are each described. At the top edge of the clear display, the symbols for the different measurement menus are always in view. The display and the dirt-insensitive keypad are clearly structured. Operation is very easy – even if you only have one hand free.
Kit Includes:
- testo 310 analyzer
- probe & hose
- silicon tubing
- extra particulate filters (5)
- pressure plugs (5)
- AC power supply/recharger (USB)
- calibraton certificate
- hard case
- Robust and light instrument for daily use
- 30 seconds sensor zeroing
- O2 and CO measurement
- Integrated magnets for easy fixing to burner
Applications:

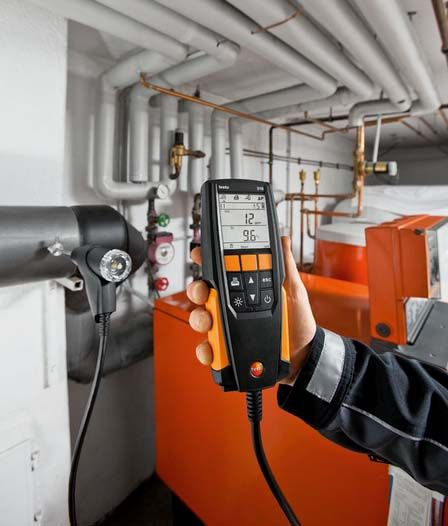

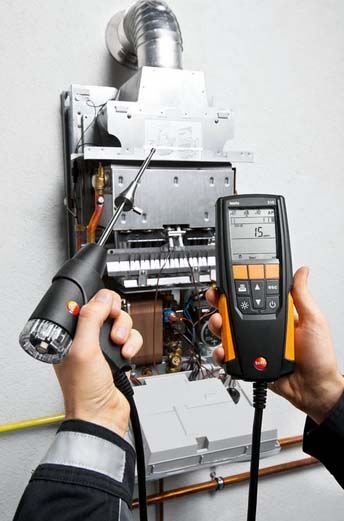

- Flue gas measurement
- Draught measurement
- Ambient CO measurement
- Pressure measurement
| Display | Backlit 2-line display |
| Storage temperature | -20 to +50 °C |
| Operating temperature | -5 to +45 °C |
| Weight | Approx. 700 g |
| Dimensions | 201 x 83 x 44 mm |
| Probe type Type K | Meas. Range: -20 to +100.0 °C Accuracy: ±1 °C Resolution: 0.1 °C Response time: < 50 s |
| Probe type CO | Meas. Range: 0 to 4000 ppm Accuracy: ±20 ppm (0 to 400 ppm); ±5% of mv (401 to 2000 ppm); ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Response time: 60 s |
| Probe type Differential pressure | Meas. Range: -40 to 40 hPa Accuracy: ±0.5 hPa Resolution: 0.1 hPa |
| Probe type Draught measurement | Meas. Range: -20 to +20 hPa Accuracy: ±0.03 hPa (-3.00 to +3.00 hPa); ±1.5% of mv (remaining range) |
| Probe type Exhaust gas loss measurement | Meas. Range: 0 to 99.9% Resolution: 0.1% |
| Probe type Electrochemical measurement O2 | Meas. Range: 0 to 21 Vol. % Accuracy: ±0.2 Vol. % Resolution: 0.1 Vol. % |
| Probe type Efficiency Measurement (Eta) | Meas. Range: 0 to 120 % Resolution: 0.1% |
| Probe type Typ J (FeCuNi) | Meas. Range: 0 to +400 °C Accuracy: ±1 °C (0 to +100 °C); ±1.5% of mv (>100 °C) |
| Reaction time | < 50 s |
