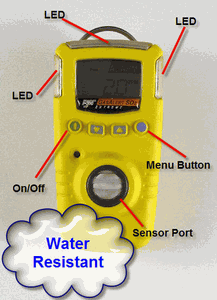

BW Technologies has raised the bar for maintenance-free detection with the new GasAlertClip Extreme. Providing two years of protection from H2S, SO2, CO or O2, the water-resistant GasAlertClip Extreme has a built-in concussion-proof boot and is ideal for amphibious operations and high-moisture environments.

Equipped with two alarm levels and an internal vibrator, the GasAlertClip Extreme now features four visual LEDs, and a high-output audible alarm.. The large, alphanumeric display provides instant notification of gas alarms, test status, life remaining (months then days then hours) and peak (maximum) exposures encountered.

The GasAlertClip Extreme`s advanced microprocessor performs a full function self-test automatically on startup and on demand to verify sensor, circuit and battery integrity, as well as audible/visual alarm operation.

Generating a permanent record of gas alarm events has never been easier. The GasAlertClip Extreme allows for effortless transmission of stored event data to a cordless printer or a PC for review and analysis.

Despite being loaded with features, the GasAlertClip Extreme is compact and light, which makes it comfortable to wear. Clip it to your lapel, pocket, belt or hardhat for unequalled protection.

BW Technologies has raised the bar for maintenance-free detection with the new GasAlertClip Extreme. Providing two years of protection from H2S, SO2, CO or O2, the water-resistant GasAlertClip Extreme has a built-in concussion-proof boot and is ideal for amphibious operations and high-moisture environments.

Equipped with two alarm levels and an internal vibrator, the GasAlertClip Extreme now features four visual LEDs, and a high-output audible alarm.. The large, alphanumeric display provides instant notification of gas alarms, test status, life remaining (months then days then hours) and peak (maximum) exposures encountered.

The GasAlertClip Extreme`s advanced microprocessor performs a full function self-test automatically on startup and on demand to verify sensor, circuit and battery integrity, as well as audible/visual alarm operation.

Generating a permanent record of gas alarm events has never been easier. The GasAlertClip Extreme allows for effortless transmission of stored event data to a cordless printer or a PC for review and analysis.

Despite being loaded with features, the GasAlertClip Extreme is compact and light, which makes it comfortable to wear. Clip it to your lapel, pocket, belt or hardhat for unequalled protection.

• Single Gas monitor which detects one of the following gases: CO, H2S, O2, SO2, PH3, CL2, NH3, NO2, HCN, ETO, CLO2, O3, NO

• Multiple language and datalogging option
• Rugged, IP-66/67 highly water-resistant design
• Built-in concussion-proof boot
• Continuous LCD shows real-time gas concentration with backlight in low light (auto and on demand); in alarm (auto)
• LOW, HIGH, TWA and STEL alarms with adjustable set points
• Provides 95 dB tone and bright LED indication on alarm (typical)
• Internal vibrating alarm
• Compact (1.1 x 2.0 x 3.75 in. / 28 x 50 x 95 mm) and Lightweight (2.9 oz. / 82 g)
• 2-year battery life (typical) with replaceable 3V camera battery
• Simple auto-zero and calibration procedure
• Full function self-test of: sensor, battery, and circuitry integrity

How easy is the Gas Alert Extreme to use?

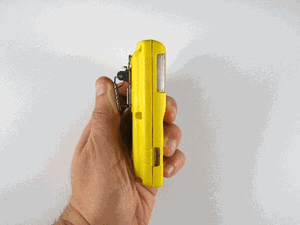

Alligator Clip

Highly Water Resistant

Durable

Calibration

• Rugged, ultra-compact (4.2 x 2.4 x 1.4 in / 10.7 x 6.0 x 3.6 cm) and lightweight (5.6 oz. / 160 g)
• Simple one-button operation
• Standard datalogger (16 hours) and eventlogger (10 events)
• Durable, stainless steel alligator clip
• Integral concussion-proof boot for the most rugged environments
• Continuous LCD shows simultaneous gas concentrations for H2S,CO, O2, and combustibles (0-100% LEL or 0-5.0% Methane)
• Powered by a lithium polymer battery (run-time typically 14 hours;recharge in less than 3 hours)
• Provides 95 dB alarm tone and bright wide-angled alarm bars
• Equipped with internal vibrating alarm for high noise areas
• Backlight: in alarm (auto) and on demand reactivation
• Four alarm levels: Instant Low and High Alarm for all gases;TWA (time weighted average) and STEL (short term exposure limit) for H2S, CO; OL (over limit alarm)
• Simple automatic calibration procedure
• Fully compatible with BW's MicroDock II automatic test and calibration system
• Records TWA, STEL and maximum exposures to gas and displays readings on command
• User selectable options include: confi dence beep, latching alarm, calibration due date, bump due date, "SAFE" display function, multi-language, span concentration values, combustible sensor measurement selection (0-100%LEL or 0-5.0% v/v methane) and stealth mode
• Full function self-test of: sensor, battery, circuitry and audible/visual/vibration alarms
• Delivered ready for use with sensors, lithium polymer battey, stainless steel alligator belt clip, calibration hose/cap and instructions

GasAlertQuattro multi gas monitor by BW Technologies

After many years of intense research and development, BW Technologies by Honeywell introduces the state of the art Gas Alert Quattro Multigas Detector. BW Technologies aspires to be the world’s leading supplier of gas detection equipment and consistently produces some of the world’s greatest gas detection systems. This unit fits in perfectly with its previous designs and features an easy to operate and read user interface, intelligent flash system, and system durability. The simple portable design helps to reduce training time and costs while ensuring the highest standards of workplace safety.

One Button Operation and Easy to Read Display

The easy to use one button operation system is effective and cost efficient by reducing training costs and training time. The one button system is glove friendly and complemented by an easy to read user interface. The user interface provides intuitive constant readings of gas levels and battery status. The simple design is ideal for hazardous working conditions when users need to be aware of their environment and less concerned with complicated equipment. The easy to read user interface displays consistent and simultaneous readings of all gases, battery status, and sensor status. This information is displayed on a very easy to read display that is free of any distractors and unnecessary information.

Standard features

The IntelliFlash feature is one of the more unique aspects of the Gas Alert Quattro multigas detector. The easily identifiable illuminated indicator signals to users and those nearby that the detector is operational and functioning correctly. The top mounted flash system provides a steady and consistent green light signal at regular intervals during the time when the unit is operational. This feature eliminates the need for guesswork when in potentially hazardous working conditions.

Powered by SureCell Sensors

Utilizing the most advanced technology available, Honeywell’s SureCell Sensor is a revolution in electrochemical technology. The patented cell technology is designed to detect a wide range of toxins while maintaining a resistance to common industrial gas interference errors. This focus on detection integrity improves sensor performance and reliability.

Rugged and Durable

This multigas detector was made with the high standards of durability in mind. The built in concussion proof boot protects the detector from regular every day hazards and accidental drops. The unit features durable bumpers to protect the internal circuitry and render the device resilient against abusive working conditions. As an added safety feature, the heavy-duty outer casing is dyed a vivid yellow hue. This reduces the likelihood that users might accidentally set down the device while on the workplace and walk away. The bright color is not likely to blend in to the background and acts as an additional safety feature for one of BW Technologies’ most intelligent gas detection designs.

Gas Alert Quattro Specifications

The Gas Alert Quattro Multigas Detector is portable (with dimensions of 5.1 x 3.2 x 1.9 inches) and lightweight (weighing less than 12 ounces). The device is also compatible with AA alkaline batteries of rechargeable battery packs. With alkaline batteries, users can expect approximately 14 hours of runtime, and with rechargeable batteries, users can expect between 18 and 20 hours. The Gas Alert Quattro is compatible with sensors for Hydrogen Sulfide, Carbon Monoxide, Oxygen, and Combustible gases at various detection and resolution ranges. The device and all of its sensors include a full two year warranty.

World's most versatile and economical multi-gas monitor

• Integrated sampling pump
• SmartSample technology and powerful diaphragm pump provide reliable block detection and consistent, uniform flow
• Easy-to-read, multi-language LCD displays all four gas concentrations (H2S, CO, O2 and combustibles) simultaneously
• Visual, vibrating and audible alarm indicators
• Low, High, TWA (time weighted average) and STEL (short-term exposure limit) alarms
• LCD icons help with fast and easy notification of detector operation
• Built-in concussion-proof boot
• Simple auto-calibration procedure
• Rechargeable batteries provide enough power for a 13-hour shift
• Best in class block detection with semi-conductor pressure sensor
• Easy, one-button interface for simple operation
• Flexible user options minimize training
• Tamper-proof field operation
• Multi-language support in English, French, German, Spanish and Portuguese
• Compatible with MicroDock II automated test and calibration system
• Confined space includes Concusision-proof boot with aliigator clip, carrying holster, 1 ft. sampling probe, 10 Ft. hose and quick disconnect, 3 ft. calibration hose with quick connect, IR connectivity kit with Fleet Manager II software, 0.5 LPM Regulator, Location for 34 Liter calibration gas cylinder and detector

5 Gas Monitor with optional sampling pump

Build to order

Multi-gas Monitor with PID capability for VOC's

Build to order

• Smaller and over 50% lighter than competitive instruments
• Water-resistant design in an integral concussion-proof enclosure
• Continuous LCD shows simultaneous gas concentrations for five gases0 - 1000 ppm measurement of VOCs (Volatile Organic Compounds)

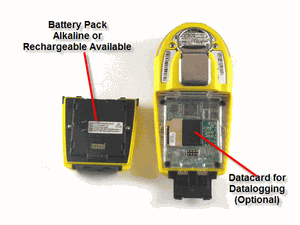

• Integral motorized pump option for remote samplingTwo power options: AA alkaline or rechargeable hot-swappable battery pack
• Provides 95 dB alarm tone and two bright wide-angled alarm bars
• Equipped with internal vibrating alarm for high noise areas
• Multi-language support in English, French, German, Spanish, and Portuguese
• Three backlight options: standard- activates in low light (auto), in alarm (auto) and reactivates on-demand; alarm only- activates in alarm conditions and reactivates on-demand; stealth mode
• Four alarm levels: instantaneous Low and High Alarm for all gases; TWA (time-weighted average) and STEL (short-term exposure limit) for VOCs and toxic gases
• Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
• Records TWA, STEL, and maximum exposures to gas and displays readings on command
• User selectable field options include: PID correction factor, language selection, confidence beep, span level, set TWA/STEL calculation choice, set calibration due date, pass code protection, latching alarm, 'SAFE' display function, stealth mode, and selectable ppm resolution for some gases (e.g. SO2 0.1 ppm)
• Full function self-test of: sensor, battery and circuit integrity; and audible/visual alarms
