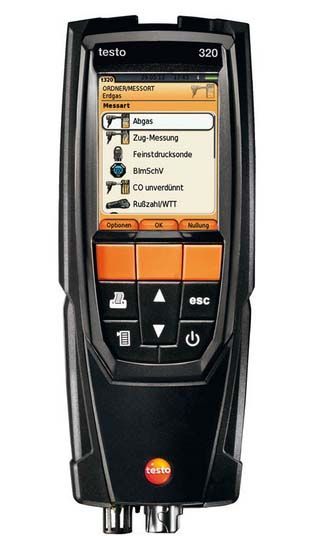

Testo 320 Residential / Commercial Analyzer Kit (with printer) - 0563 3220 71
Item #:
0563-3220-71
Brand:
Testo
Share this product:
0563 3220 71 320 Residential / Commercial Analyzer Kit (with printer) by Testo
Are you looking for a multi-function instrument for efficient flue gas analysis? Which confidently solves every task on a heating system? And is still convenient to use? The new testo 320 fulfils all of these requirements, because that is exactly what it was developed for. The testo 320 has a high-resolution colour display which presents the measurement results graphically. It provides simple, self-explanatory measurement menus. The testo 320 is very robust, ergonomic, and at the same time aesthetically designed. It has two sensors for O2 and CO as well as a temperature probe integrated into the flue gas probe for the direct measurement of temperature, O2 and CO. From these data, the instrument calculates all relevant flue gas measurement parameters such as CO2 value, degree of effectivity and flue gas loss. Direct draught or pressure measurements are additionally possible. Using the fine pressure probe, the flue draught or gas pressure values can optionally be measured parallel to the flue gas measurement. - TÜV-tested according to EN 50379, Parts 1-3.

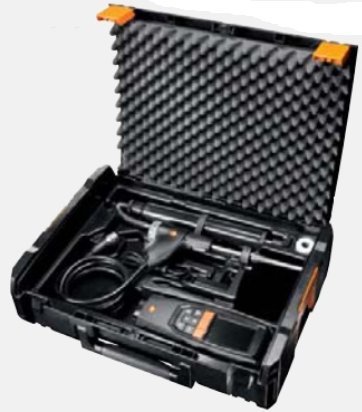

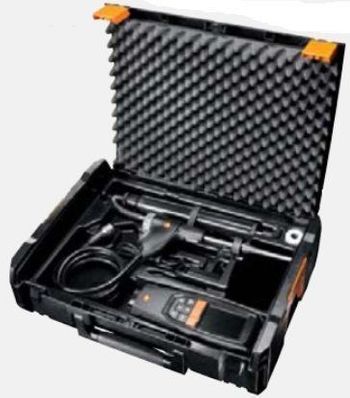

Kit Includes:
- testo 320 analyzer
- probe & hose
- extra particulate filters (10)
- AC power supply/recharger (USB)
- calibraton certificate
- IR printer
- 6 rolls of thermal paper
- rugged hard case
- High-resolution graphic display
- TÜV-tested according to EN 50379, Parts 1-3
- Sensor exchange by the user
- Memory up to 500 measurement protcols
Applications:

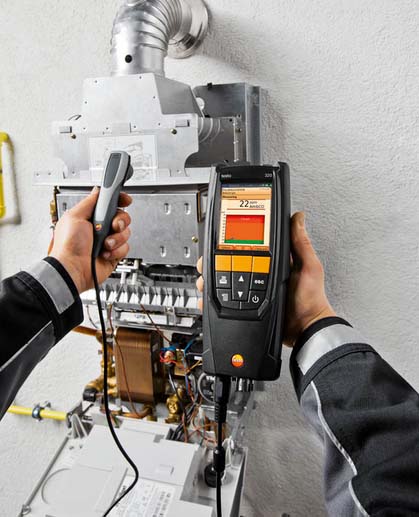

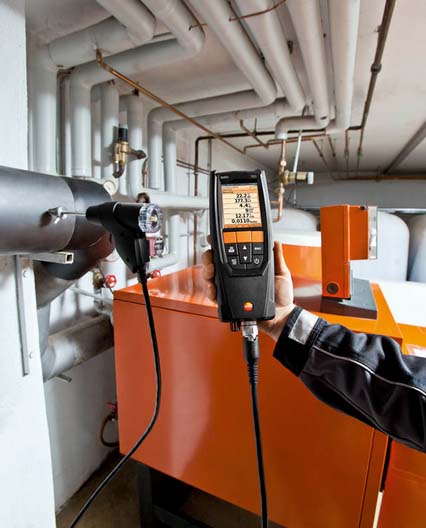

- Flue gas measurement
- Draught measurement
- Gas flow and static gas pressure
- Gas leak detection
- Ambient CO measurement
- Differential temperature measurement
| Memory | 500 readings |
| Display | Colour graphic display 240 x 320 pixels |
| Storage temperature | -20 to +50 °C |
| Operating temperature | -5 to +45 °C |
| Weight | 573 g |
| Dimensions | 240 x 85 x 65 mm |
| Probe type Type K | Meas. Range: -40 to +1200 °C Resolution: 0.1 °C (-40 to +999,9 °C); 1 °C (> +1000 °C) |
| Probe type CO | Meas. Range: 0 to 500 ppm Accuracy: ±5 ppm (0 to 100 ppm); ±5% of mv (> 100 ppm) Resolution: 1 ppm |
| Probe type CO2 | Meas. Range: 0 to 1 Vol. %;
0 to 10.000 ppm Accuracy: ±50 ppm or ±2% of mv (0 to 5000 ppm); ±100 ppm or ±3% of mv (5001 to 10000 ppm) |
| Probe type Differential pressure | Meas. Range: 0 to +300 hPa Accuracy: ±0.5 hPa (0.0 to 50.0 hPa); ±1% of mv (50.1 to 100.0 hPa); ±1.5 % of mv (remaining range) Resolution: 0.1 hPa |
| Probe type Draught measurement | Meas. Range: -9.99 to +40 hPa Accuracy: ±0.02 hPa or ±5% of mv (-0.50 to +0.60 hPa); ±0.03 hPa (+0.61 to +3.00 hPa); ±1.5% of mv (+3.01 to +40.00 hPa) |
| Probe type Exhaust gas loss measurement | Meas. Range: 0 to 99.9% Resolution: 0.1% |
| Probe type Electrochemical measurement CO | Meas. Range: 0 to 4000 ppm Accuracy: ±20 ppm (0 to 400 ppm); ±5% of mv (401 to 2000 ppm); ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm |
| Probe type Electrochemical measurement O2 | Meas. Range: 0 to 21 Vol. % Accuracy: ±0.2 Vol. % Resolution: 0.1 Vol. % |
| Probe type Efficiency Measurement (Eta) | Meas. Range: 0 to 120% Resolution: 0.1% |
| Probe type CO2-determination | Meas. Range: 0 to CO2 max Accuracy: ±0.2 Vol. % |
