BW Technologies Sampler Pack
Item #:
GA-SPAK
Brand:
BW Technologies
Share this product:

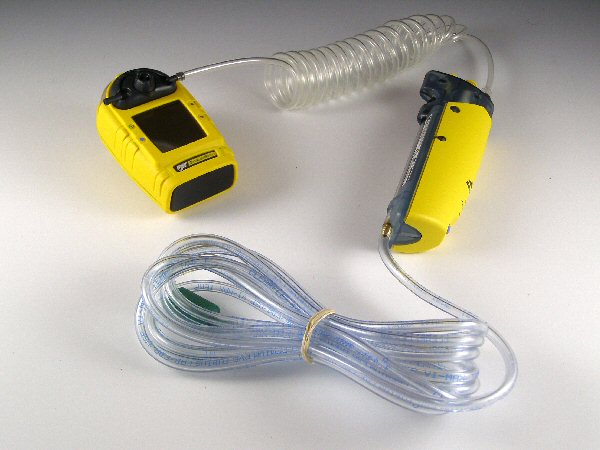

Designed for use with most BW single-gas and multi-gas detectors, the Sampler is an ideal confined space entry accessory. Simply attach it to your detector and activate for continuous remote sampling.
With a rugged pump and a robust, ergonomic design, the Sampler features intelligent diagnostics that tell the instrument when to calibrate itself. Motor speed is self-regulating to provide consistent airflow in ever-changing environmental conditions, and a 30-hour runtime on 2 AA alkaline or NiMH batteries ensures trouble-free operation through multiple shifts.
Features
* Compact (7.4 x 1.3 x 2.1 in. / 18.8 x 3.35 x 5.4 cm) and lightweight (6.2 oz. / 175 g)
* Compatible with most BW single-gas and multi-gas detectors, including GasAlert and GasAlertMicro
* Pump constantly monitors itself for proper performance
* Low flow alarm, battery alarm and system fault alarm with audible/visual warnings
* Unique, manual flow-block test verifies proper performance
* Up to 30 hours of continuous operation on a single set of AA alkaline or rechargeable NiMH batteries
* Built-in water trap and particulate filters
* Optional extra-long probes and sampling hoses available
Size | 7.4 x 1.3 x 2.1 in. / 18.8 x 3.35 x 5.4 cm |
Weight | 6.2 oz. / 175 g |
Temperature | -4 to +122°F / -20 to +50°C (North American model) -4 to +104°F / -20 to +40°C (European model) |
Humidity | 5% - 95% RH (non-condensing) |
Alarms | - Visual and audible (90dB) - Warning conditions: Low flow, low battery, system fault |
Sample flow rate | 300 ml/min (typical) |
Sample distance | 50 ft. / 15.2 m |
Sample delay time | 3 seconds per 1 ft. / 0.3 m |
Outlet connection | 1/8 in. / 0.32 cm barbed fitting for flexible sampling hose |
Inlet connection | Flexible sampling hose: 1/8 in. / 0.32 cm Rigid sample tube: 1/4 in. / 0.63 cm O.D. |
Typical battery life | 30 hrs with 2 AA alkaline batteries or 2 AA NiMH rechargeable batteries |
Warranty | Full 2 year warranty |
Datasheets & User Manuals
Questions & Answers
1 Question &
1 Answer
Kevin
from Sioux Falls South Dakota asked:
December 30, 2019
Will this sampler work with the BW Tech Quad Gas CH4 SKU # CG-Q34-4 Multi Gas Detector?
1 Answer
Hi Kevin,
If you are looking for the regulator that attaches to the cylinder CG-Q34-4 you would need this item https://www.jjstech.com/reg-0-5.html.
Submitted by:
Joe Spratley
on December 30, 2019
