Extech 382270 Quad Output DC Power Supply
Item #:
EXT-382270
Brand:
Extech
Share this product:

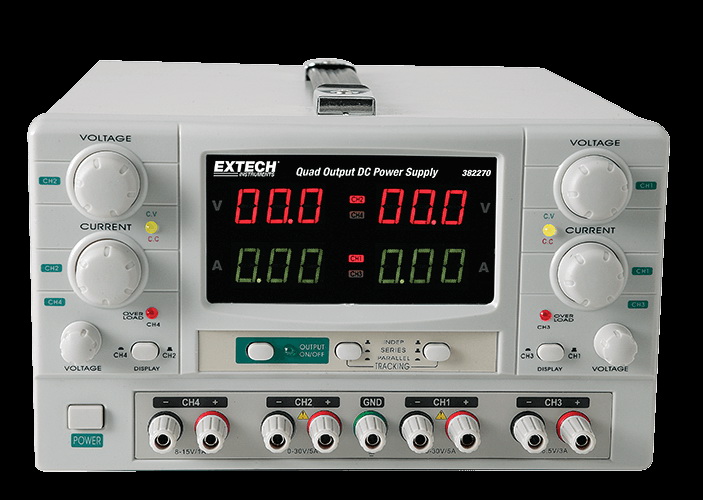

382270 Quad Output DC Power Supply by Extech
Features
- Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
- Outputs up to 60V in series mode or 10A in parallel mode
- Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A
- Overload and short circuit protection
- Complete with power cord and 4 pairs of test leads (banana plug to alligator clip)
Range | |||
Output1 (CH1) |
Output2 (CH2) |
Output3 (CH3) |
Output4 (CH4) |
0~30V/0~5A |
0~30V/0~5A |
3~6.5V/3A |
8~15V/1A |
Electrical | |||
Input voltage | 110~127VAC±10%; 220~240VAC±10% (switchable) | ||
Line regulation | |||
CV | ≤ 1 x 10-4 + 3mV | ||
CC | ≤ 2 x 10-3 + 3mA | ||
Two semi-adjustable outputs | ≤ 5mV | ||
Load regulation | |||
CV | ≤ 5 x 10-4 + 5mV | ||
CC | ≤ 2 x 10-3 + 5mA | ||
CH3 | ≤30mV | ||
CH4 | ≤15mV | ||
Ripple and noise | |||
CV | ≤ 1mV rms | ||
CC | ≤ 3mA rms | ||
Fixed output | ≤ 2mV rms | ||
Protection | current-limit | ||
Display accuracy | |||
Volt-indication | LED ± (0.5%rdg+2 digits) | ||
Amp-indication | LED ± (0.5%rdg+2 digits) | ||
General | |||
Display | Four 3-digit color-coded LED displays and four status LED lights | ||
Dimensions | 260 x 160 x 370mm (10.2 x 6.3 x 14.6") (W x H x D) | ||
Weight | 12 kg (26.4lbs) |
