Extech 382202 18V/3A Single Output DC Power Supply
Item #:
EXT-382202
Brand:
Extech
Share this product:

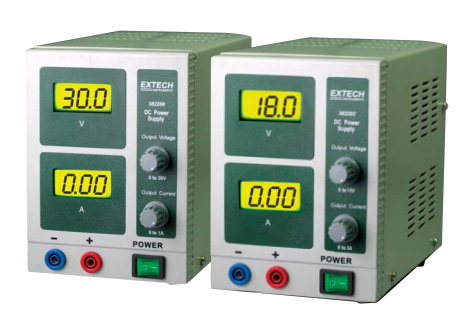

382202 18V/3A Single Output DC Power Supply by Extech
Features
- Constant voltage or current
- Dual backlit LCD displays for voltage and current
- Short circuit protection
- Current limiting
- High load/line regulation
- Low noise/ripple
- Banana plug output terminals
- Complete with power cord
| Model | 382200 |
382202 |
| Display | Dual LCD |
|
| Display Accuracy (V) | ±(1.5%rdg +5D) |
|
| Display Accuracy (A) | ±(2.0%rdg + 5D) |
|
| Voltage Output, DC | 30.0 Volts |
18.0 Volts |
| Current Output, DC | 0 - 1.00 Amp |
0 - 3.00 Amps |
| Ripple and Noise | <0.5mV/<3mA |
|
| Line Regulation | < 0.01% + 3mV/< 0.2% + 3mA |
|
| Load Regulation | < 0.01% + 2mV/< 0.2% + 3mA |
|
| Power | 115/230VAC (50/60Hz) |
|
| Dimensions | 9.4 x 4.25 x 6" (240 x 108 x 154mm) (WxHxD) |
|
| Weight | 4.4lbs. (2 kg) |
6.6lbs. (3kg) |
