Extech 382203 Analog Triple Output DC Power Supply
Item #:
EXT-382203
Brand:
Extech
Share this product:

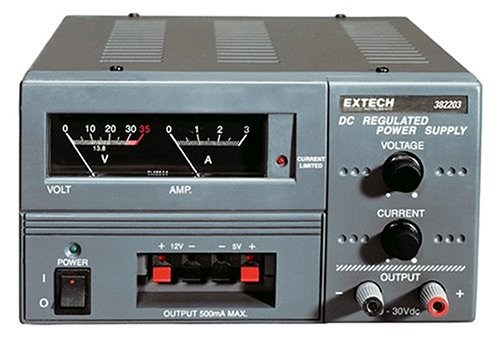

382203 Analog Triple Output DC Power Supply by Extech
Features
- 382203 - Analog display; 382213 - Digital LCD display
- Triple Output: Adjustable 0-30V, 0-3A plus fixed 5V and 12V
- 0-30V Adjustable Voltage Output
- 0-3A Adjustable Current Output
- Independent 5V and 12V Outputs Provide Power for TTL or CMOS Projects
- Easy Snap Terminals for 5V and 12V outputs
- Overload and Short Circuit Protection
- Constant Voltage or Current
- Current Limiting Front Panel LED Indicator
- Binding Post Terminals for Variable Supply
- Complete with power cord
| Model | 382203 |
382213 |
| Display | Dual Analog Metering |
Dual 3-digit LCD Displays |
| Voltage Output, DC | 0-30V |
|
| Current Output, DC | 0 - 3 Amps |
|
| Current Limiting Indicator | Status LED |
|
| Accuracy | ± 7% Full Scale |
± 1% Full Scale + 2 digits |
| Ripple and Noise | < 5mV |
|
| Line Regulation | < 0.05% + 10mV |
|
| Fixed Output Voltage | 5V / 0.5A (continuous); 1A (max.) 12V / 0.5A (continuous); 1A (max.) |
|
| Power | 110/220VAC 50/60Hz (switchable) |
|
| Dimensions | 152 x 142 x 242mm (6 x 5.6 x 9.5") (WxHxD) |
|
| Weight | 4.5 kgs (10 lbs) |
|
