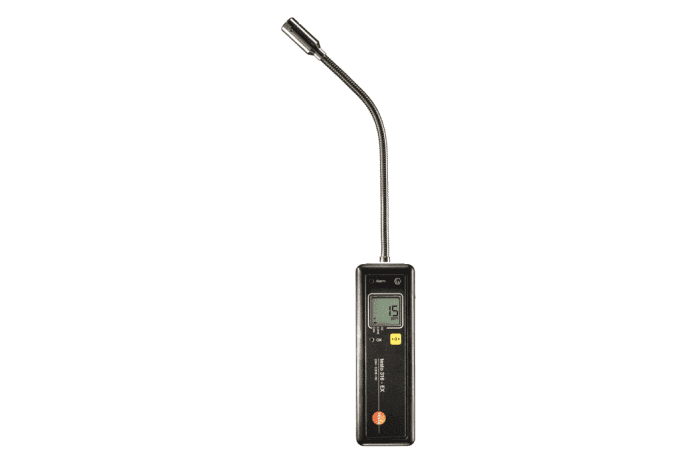

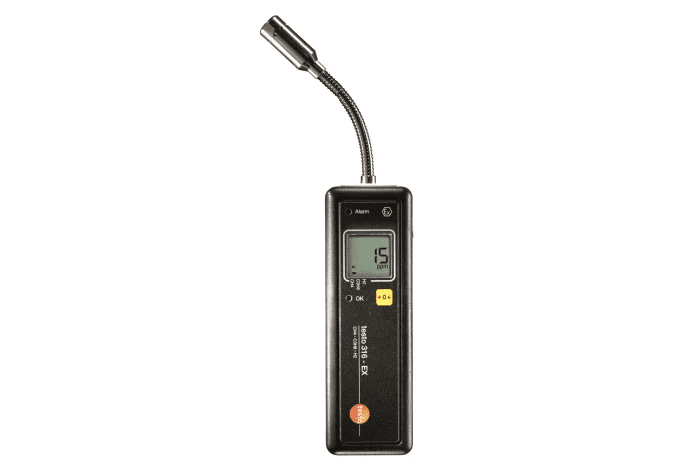

Testo 316 Ex, Gas Leak Detector - 0632 0336
Item #:
0632-0336
Brand:
Testo
Share this product:
0632 0336 316 Ex, Gas Leak Detector by Testo
Proof of gas and leakage localization on gas pipes and installations in indoor and outdoor areas The testo 316-EX, which conforms to the guideline 94/9/EG (ATEX), is a multi-range gas detector with Ex protection for the gases methane, propane and hydrogen. The gas concentrations are measured by the semi-conductor sensor in the ppm range and are shown in the display with a resolution of 1ppm.
- Flexible measurement probe for inaccessible pipes
- 1 ppm resolution on display
- Indicator suppression for comfortable locating of the leak
- 94/9/EG (ATEX) conform
Kit Includes:
testo 316-EX electronic gas leak detector with EX protection, including batteries, case, Allen key and calibration protocol
| General technical data | |
| Storage temperature | -10 to +50 °C |
| Operating temperature | -10 to +40 °C |
| Oper. humidity | 20 to 80 %RH (not condensed) |
| Voltage supply | 2 x 1,5 V (Mignon) / AA Type permitted for use in areas with danger of explosion: Camelion Plus Alkaline LR6 (see order data, order no. 0515 0316) |
| Battery life | to 10 h |
| t90 | 14 s |
| Weight | Approx. 200 g |
| Dimensions | 135 x 45 x 25 mm |
| Protection class | IP54 |
| EU guideline | 94/9/EG (ATEX) 2004/108/EG |
| EX-protection | II 2G EEx ib IIC T1 (Ex Zone 1) |
| Sensor types | |
| Measuring range | Methane: 1 ppm to 2.5 Vol. % CH4 Propane: 1 ppm to 1.0 Vol. % C3H8 Hydrogen: 1 ppm to 2.0 Vol. % H2 |
| Trigger threshold | Methane: 1 ppm Propane: 1 ppm Hydrogen: 1 ppm |
| Resolution | Methane: 1 ppm / 0,1 Vol. % Propane: 1 ppm / 0,1 Vol. % Hydrogen: 1 ppm / 0,1 Vol. % |
