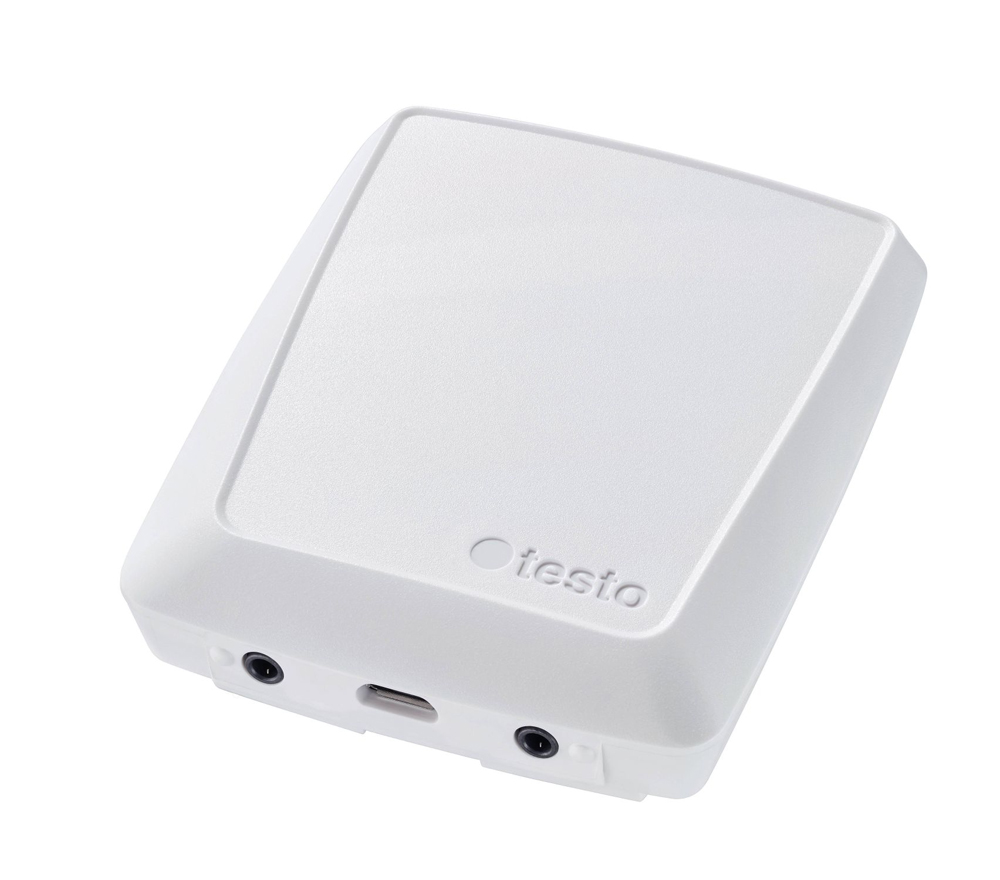

Testo 160 E Wi-Fi Data Logger with 2 Connections for Temperature and Humidity Probe, Lux Probe or UV Radiation and Lux Probe - 0572 2022
Item #:
0572-2022
Brand:
Testo
Share this product:
0572 2022 160 E Wi-Fi Data Logger with 2 Connections for Temperature and Humidity Probe, Lux Probe or UV Radiation and Lux Probe by Testo
The testo 160 Museum and Archives Monitoring System monitors ambient conditions in display cases, exhibition rooms, and storage rooms. The loggers transfer measurement values by wireless LAN to the Testo Cloud. You can access all data at any time with the testo Saveris 2 App or by PC/tablet/smartphone and a normal browser. If limit values are exceeded, an alarm is immediately provided by text message and/or email. For light intensity, an alarm can also be triggered if the accumulated light quantity within a day, a week or a month exceeds a limit value.
Testo 160 loggers can be easily hidden within the exhibit area thanks to paintable deco-covers. The temperature and humidity probe with wall bushing is ideal for monitoring small display cabinets in which a data logger cannot be placed.
The testo 160 enables you to check all relevant ambient conditions, in order to safeguard the value of the exhibits and fulfill the obligation of documentation.
- Measurement values transfer by wireless LAN to the Cloud storage
- Measurement values can be accessed on any device with a browser
- Text message or email alarms
- Small devices designed to blend in with surroundings
- Paintable deco-cover to match surrounding color
WiFi data logger testo 160 TH |
WiFi data logger testo 160 THE |
WiFi data logger testo 160 THL |
WiFi air quality logger testo 160 IAQ |
WiFi data logger testo 160 E |
|
| Temperature measurement | |||||
| Measuring range | -10 to +50 °C / 14 to 122 °F |
see external probe |
|||
| Accuracy | ± 0.5 °C / 0.9 °F |
||||
| Resolution | 0.1 °C / 0.1 °F |
||||
| Humidity measurement | |||||
| Measuring range | 0 to 100 %RH |
||||
| Accuracy | ±2 %RH at +25 °C / 77 °F and 20 to 80 %RH ±3 %RH at +25 °C / 77 °F and < 20 %RH or > 80 %RH ±1 %RH hysteresis ±1 %RH / year drift |
see external probe |
|||
| Resolution | 0.1% RH |
||||
| Lux measurement | |||||
| Measuring range | see external probe |
0 to 20,000 Lux |
see external probe |
||
| Accuracy | DIN 5032-7 Class C-compliant. ±3 Lux or ±3 % of reference (DIN 5032 A) |
||||
| Resolution | 0.1 lux |
||||
| UV measurement | |||||
| Measuring range | see external probe |
0 to 10,000 mW/m2 |
see external probe |
||
| Accuracy | ±5 mW/m2 or ±5 % of m.v. (for UV; the larger value applies) |
||||
| Resolution | 0.1 mW/m2 |
||||
| CO2 measurement | |||||
| Measuring range | 0 to 5,000 ppm |
||||
| Accuracy | ±(50 ppm + 2 % of m.v.) at +25 °C / 77 °F Without external power supply: ±(100 pm + 2 % of m.v.) at +25 °C / 77 °F |
||||
| Resolution | 1 ppm |
||||
| Pressure measurement | |||||
| Measuring range | 600 to 1100 mbar |
||||
| Accuracy | ±3 mbar at +22 °C / 71.6 °F |
||||
| Resolution | 1 mbar |
||||
| WLAN+ | |||||
| Standard | 802.11 b/g/n |
||||
| Security | WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP |
||||
| General | |||||
| Operating temperature | -10 to +50 °C / 14 to 122 °F |
||||
| Storage temperature | -20 to +50 °C / -4 to 122 °F |
||||
| Protection class | IP20 |
||||
| Measuring cycle | Dependent on Cloud license / Basic: 15 min to 24 h / Advanced: 1 min to 24 h selectable |
||||
| Communication cycle | Dependent on Cloud license / Basic: 15 min to 24 h / Advanced: 1 min to 24 h selectable |
||||
| Memory | 40,000 readings (sum of all channels) |
||||
| USB Power supply | Optional |
||||
| Battery | 4 x AAA 1.5 V alkaline batteries |
4 x AA 1.5 V alkaline batteries (optional backup) |
4 x AAA 1.5 V alkaline batteries |
||
| Battery life (approximate) | 18 months* |
12 months* |
18 months* |
||
| Dimensions | 64 x 76 x 22 mm 2.51 x 2.99 x 0.87" |
64 x 76 x 22 mm 2.51 x 2.99 x 0.87" |
64 x 92 x 24 mm 2.51 x 3.62 x 0.94" |
82 x 117 x 32 mm 3.29 x 4.6 x 1.26" |
64 x 76 x 22 mm 2.51 x 2.99 x 0.87" |
| Weight (incl. batteries) | 94 g / 3.31 oz. |
94 g / 3.31 oz. |
113 g / 3.99 oz. |
269 g / 9.49 oz. |
96 g / 3.39 oz. |
| *Actual battery life depending on user settings for measurement and communication cycles | |||||
