Testo 160 IAQ Wi-Fi Data Logger (temperature, humidity, CO2, pressure) - 0572 2014
Item #:
0572-2014
Brand:
Testo
Share this product:
0572 2014 160 IAQ Wi-Fi Data Logger (temperature, humidity, CO2, pressure) by Testo

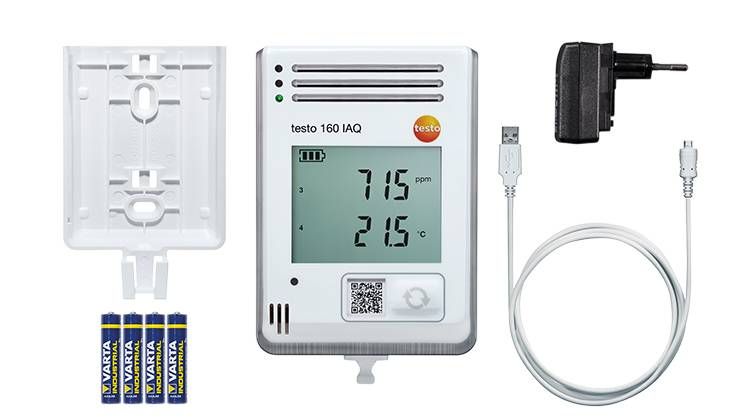

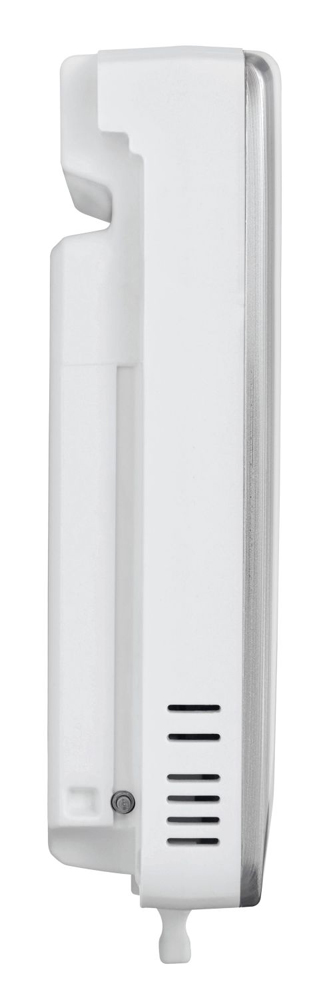

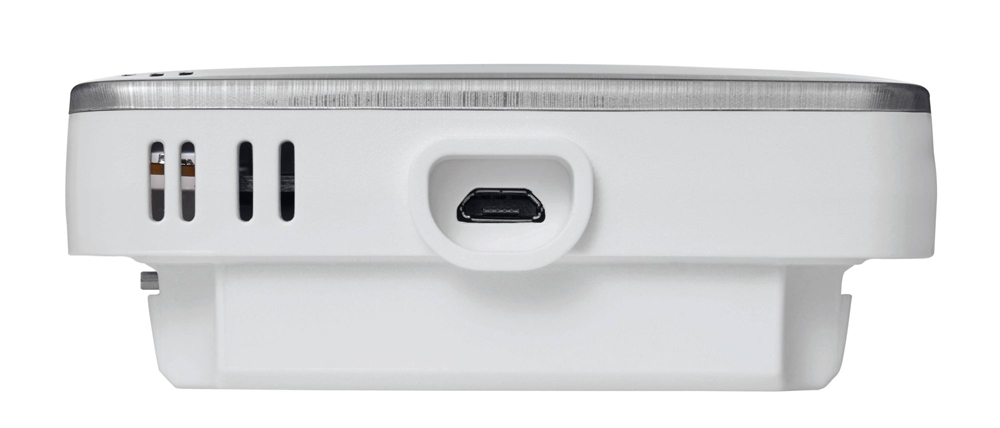

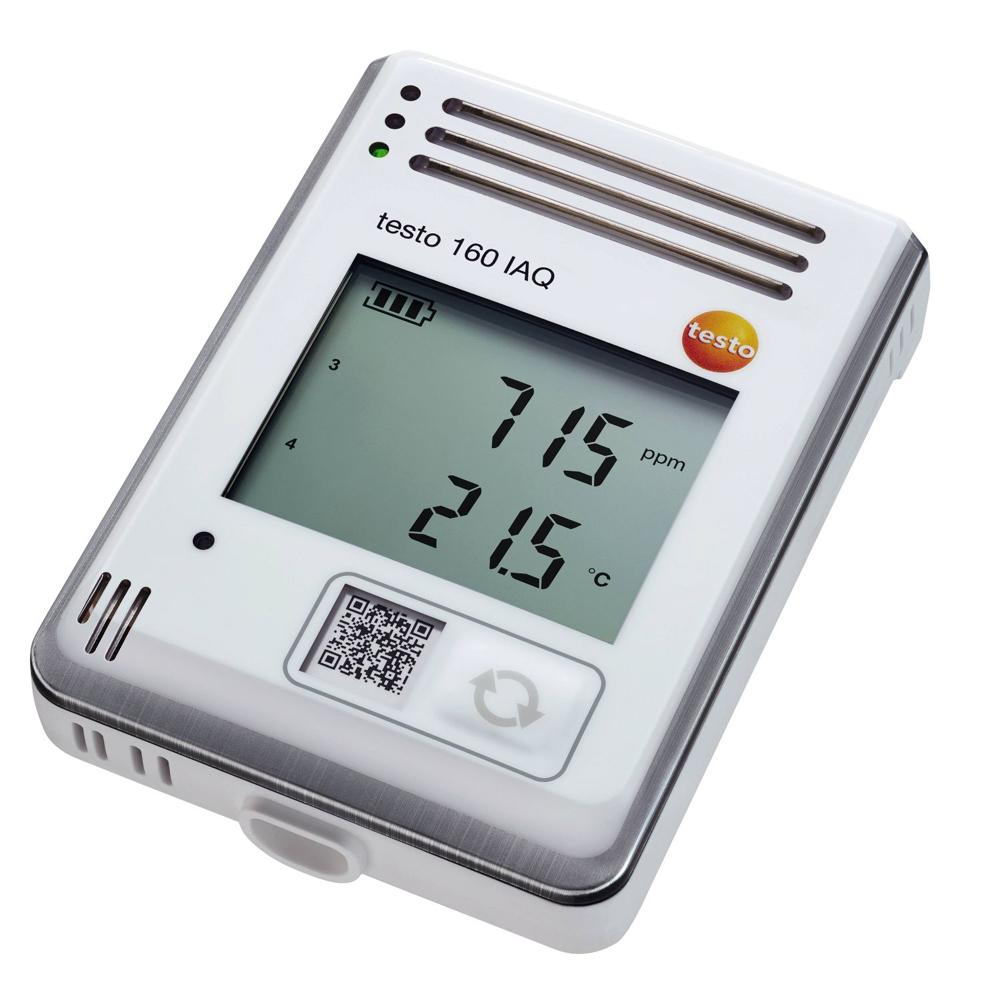

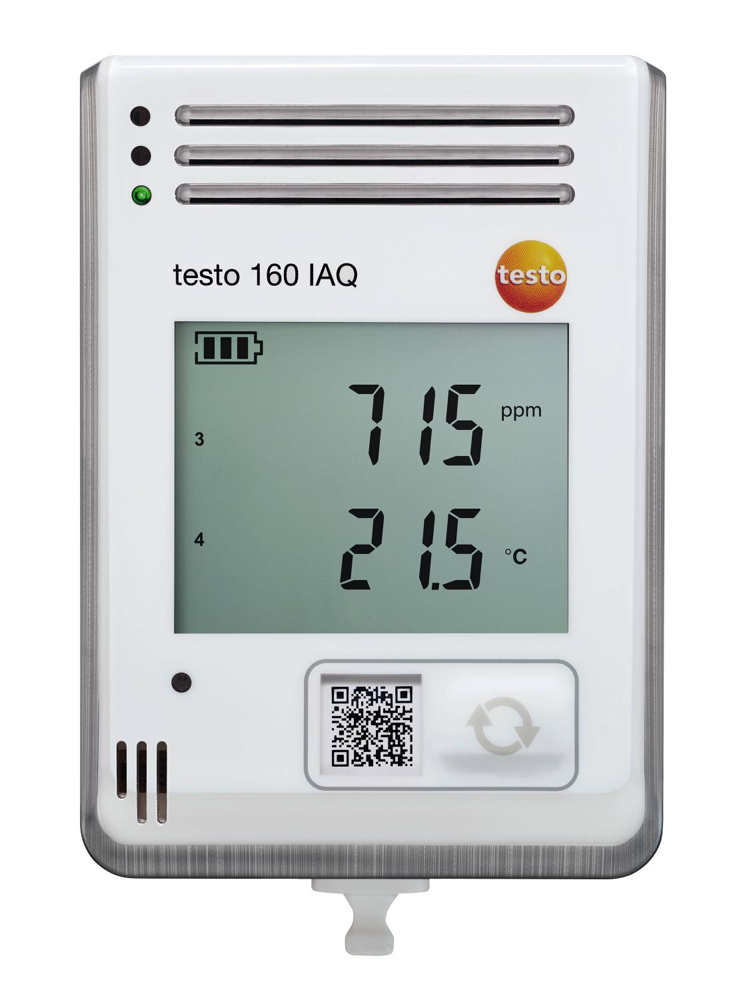

The easy to use testo 160 IAQ Wi-Fi Data Logger is ideal for monitoring indoor air quality. Using internal sensors for temperature, humidity, CO2, and atmospheric pressure, the testo 160 IAQ accurately determines the air quality of your desired area. The logger comes with a large internal memory that stores 40,000 measurement values, as well as a battery back up to protect your data in the event of a blackout or Wi-Fi network issues.
The testo 160 logger transfers these measurement values wirelessly to the testo Cloud.
On your testo Cloud account, you can configure multiple data loggers and set alarm points, designate authorized users, and set recipients for alarms and reports. This data is accessible at any time from any enabled device, such as a smart phone, tablet, PC or Mac. Additionally, you can preset measurement limits and, if these limits are exceeded, an alarm is immediately provided by text and/or e-mail.
- Wireless measurement value transfer to the testo Cloud
- Measurement values can be monitored on all devices
- Alarm notifications sent by text or e-mail automatically
- Small dimensions for inconspicuous design
- Internal sensors for easy and convenient set up
Temperature measurement | |
Measuring range | 32 to 122 °F (0 to +50 °C) |
Accuracy | ± 0.9 °F (± 0.5 °C) |
Resolution | 0.1 °F (0.1 °C) |
Humidity measurement | |
Measuring range | 0 to 100 %RH (non-condensing) |
Accuracy | ±2 %RH at 77 °F (+25 °C) and 20 to 80 %RH ±3 %RH at 77 °F (+25 °C) and < 20 %RH and > 80 %RH ±1 %RH hysteresis ±1 %RH / year drift |
Resolution | 0.1% RH |
CO2 measurement | |
Measuring range | 0 to 5,000 ppm |
Accuracy | ±(50 ppm + 3 % of m.v.) at 77 °F (+25 °C) Without external power supply: ±(100 ppm + 3 % of m.v.) at 77 °F (+25 °C) |
Resolution | 1 ppm |
Pressure measurement | |
Measuring range | 600 to 1100 mbar |
Accuracy | ±3 mbar at 71.6 °F (+22 °C) |
Resolution | .40 inH20 (1 mbar) |
WLAN | |
Standard | 802.11 b/g/n |
Security | WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-EAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP |
General | |
Operating temperature | 32 to 122 °F (0 to +50 °C) |
Storage temperature | 32 to 122 °F (0 to +50 °C) |
Protection class | IP20 |
Measuring cycle | Dependent on Cloud licence Basic: 15 min to 24 h Advanced: 1 min to 24 h |
Communication cycle | Dependent on Cloud licence Basic: 15 min to 24 h Advanced: 1 min to 24 h |
Memory | 32,000 readings (sum of all channels) |
Voltage supply (alternatively, power via USB connection) | 4 x AA alkaline batteries 1.5 V |
Battery life (depending on the measuring and communication cycle through the Cloud) | 1 year |
Dimensions | 4.6 x 3.23 x 1.26 in. (117 x 82 x 32 mm) |
Weight (including batteries) | 0.6 lbs. (269 g) |
