Zarbeco USB3 HDMI Videolink Frame Grabber with Video ToolBox Pro Software - USB3-002-HDMI

USB3-002-HDMI USB3 HDMI Videolink Frame Grabber with Video ToolBox Pro Software by Zarbeco

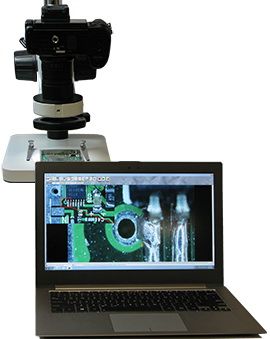

The USB3 HDMI VidoLink connects an HD video microscope or any other HDMI video output device to a laptop or desktop computer with a USB 3.0 port. It displays high resolution images up to 1920 x 1080 pixels at up to 60 frames/second (1080p) right on your computer screen.

Use the USB3 VideoLink with an HD video camera, HD compatible digital camera, camcorder, iPad (with HDMI adapter), tablet, laptop or desktop computer (with HDMI output) to view and capture the live video image.

The USB3 HDMI VideoLink includes Video ToolBox Pro software which provides easy access to advanced capture, labelling and measurement functions.

Capture images, movies and time-lapse sequences. Add labels or markers, freehand notes and time stamps. Advanced measurement tools include distance, angle, multipoint circles and arcs. Make relational measurements (the distance between the center of a circle and the midpoint of a reference line) and export all the measurement data to EXCEL®. Use picture-in-picture freeze frame and transparent overlays for image comparison.

Or upgrade to Video ToolBox Premier software with edge detection assist for measurements, CAD file overlays (with the optional CAD package), side-by-side image comparison, high dynamic range image capture, split screen overlays and more.

Features

• Input HDMI video up to 1080p/60Hz
• Display live video at up to 1920 x 1080 pixel resolution, up to 60 frames/seconds
• Automatic detection of HDMI video format (HDMI Specification 1.4a)
• Manually adjust brightness, contrast, hue and saturation
• Video ToolBox Pro Software to capture, record, annotate, and measure still images, movies or time-lapse sequences
• Capture images directly into your favorite image-editor for further enhancement and annotation
• Make measurements directly on the live video image. Export measurements to EXCEL®
• Zoom-in (without jaggies) on the live image

Applications

• Industrial Inspection and Measurement
• Microscopy (brightfield, darkfield, fluorescence)
• Image and Video Documentation
• Surveillance and Security
• Mobile Imaging

Specifications

• HDMI video input up to 1080p/60Hz (one standard HDMI cable input)
• Meets HDMI Specification version 1.4a
• Ouput Size: Up to1920 x 1080 pixels at up to 60 frames/second
• No drivers required (UVC device)
• Up to 350MB/s throughput (limited by processor speed and USB 3.0 host chip)
• 64 MB onboard video buffer
• Powered directly from the USB 3.0 port
• Software: Drivers: DirectShow UVC, Capture Program: Video ToolBox Pro

Computer Requirements

• Windows 7/8
• Free USB 3.0 Port (compatible with USB 2.0 at reduced performance)
• iCore 3+ processor for best frame rate(compatible with Atom processors at reduced performance)
• 2+ GB of Free Memory
