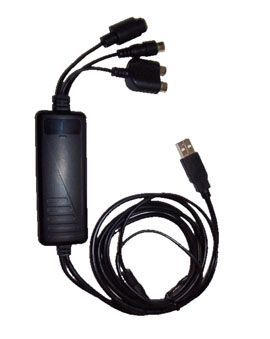

Zarbeco USB 2.0 Videolink for Computers with USB 2.0 Port - USB-002-2B

USB-002-2B USB 2.0 Videolink for Computers with USB 2.0 Port by Zarbeco

The USB 2.0 Videolink connects a video camera to any laptop or desktop computer with a USB 2.0 port. It provides the same level of performance as an internal frame grabber with a 30 frames/second capture rate at full NTSC 640 x 480 pixel resolution. The USB 2.0 VideoLink supports the popular Microsoft DirectShow WDM format which makes it compatible with hundreds of commercial programs written for that standard.

The USB 2.0 VideoLink includes Video ToolBox software which provides easy access to advanced capture, labelling and measurement functions. With Video ToolBox everything happens on the live image -- making inspection faster and more efficient. Label, markers, freehand notes, time stamps and measurements are all seen right on the live image. Hit the capture button and get a permanent record for archiving.

Features

• Input S-Video or composite
• Display live video at VGA resolution up to 30 frames/second
• Manually adjust brightness, contrast, hue and saturation
• Zoom-in (without jaggies) on the live image
• Video ToolBox Software to capture, record, annotate, measure still images, movies or time-lapse sequences
• Capture images directly into your favorite image-editor for further enhancement and annotation
• Measurement tools on the live video image

Applications

• Microscopy (brightfield, darkfield, fluorescence)
• Astronomy
• Image Documentation
• Surveillance and Security
• Mobile Imaging
• Photo ID Systems
• Video conferencing and Webcasting

Specifications

• S-Video or composite video input
• NTSC or PAL format
• Pixel Size: 640 x 480 pixels at up to 30 frames/second (for NTSC)
• Software: Drivers: DirectShow and TWAIN compliant, Capture Program: Video ToolBox

Computer Requirements

• Windows 2000/XP/VISTA/7/8
• Free USB 2.0 Port
• DirectX 8.1 or greater
• Pentium III 1.0 GHz or faster (P4, 1.5+ GHz recommended)
• 128 MB of Free Memory (256+ MB recommended)
• Video card with 16 MB of video RAM, minimum 800 x 600 resolution at 16-bit (65,000 colors)
