Pressure / Leakage

DM2000 Digital Manometer with Hose 1.5m by Wohler

Scope of Delivery: Wohler DM 2000 Digital Manometer 5' hose Display in inch WC Temperature in °F

Additonal Information

• Wohler DM 2000 Digital Manometer
• 5' hose
• Display in inch WC
• Temperature in °F

7335 DM2000 Digital Manometer Set by Wohler

Additonal Information

• Wohler DM 2000 Digital Manometer
• 5' hose
• Hand loop
• Carrying case
• Batteries (installed)

7707 GS300 Gas Sniffer by Wohler

The Wohler Gas Sniffer is a quick and highly sensitive measurement instrument for tightness control and leakage detection of gas tubes that contain combustible gases. Wohler delivers German technology for accurate and high-quality results. The Gas Sniffer notifies via vibration and acoustic signals in order to highlight also small leaks. The display shows a bar graph in order to present the current gas concentration proportionally. Here, the Gas Sniffer classifies the gas concentration level into one of twelve levels between 0 and 1200 ppm.

This tiny Gas Sniffer is the perfect all-round tool for controlling installations which contain liquefied or natural gas. The measurement results are reliable and professional and can thus be used by professionals in further processes. Craftsmen and industrial choose the right tool with this gas sniffer for inspecting gas tubes.

The Gas Sniffer comes with a short reaction time and an integrated flash light. The type of gas for measurement can be chosen. Due to its design it lies perfect in one's hand.

The Gas Sniffer enables its users to monitor industrial plants such as chemical plants or those in need for a high heat consumption using tubes with combustible gases. Craftsmen can use the Wohler GS 300 Gas Sniffer in order to inspect private properties and to make sure that home installations work properly and that there is no danger for occupants.

• Acoustic signal and vibration alarm to display even the smallest leaks
• Display of gas concentration via bar graph in twelve levels from 0 – 1,200 ppm
• Perfect tool to control natural gas, as well as liquefied gas installations
• Additional LED lighting turns on automatically in dark places, to search for leaks in hard to reach spots (flashlight function)

Additonal Information

• Wohler GS 300 Gas Sniffer
• 17" gooseneck probe
• 4 AA batteries
• Carrying case

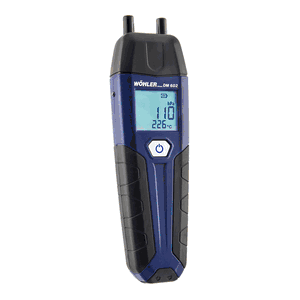

11196 DM 602 Digital Manometer by Wohler

You always have your small pressure measurement device with you. It is therefore worthwhile to rely on a real professional device that guarantees precise and fast measurement. Don't waste your time with unsteady indicators and bulky tools! The high quality sensor of the Wohler DM 602 shows you precised measured values in any position. Pressure and temperature values can be easily read on the large illuminated display, so that the measurement is done quickly. A single fingerprint leads you to the result: Turn on – read – done. The device has an internal temperature sensor as well as a temperature connection. You can easily connect any external Wohler temperature sensor, e. g. a temperature probe or a surface temperature probe.

Depending on the selected item, you find a mbar or in WC preset as the pressure unit in your device. Pressure and temperature units as well as the pressure resolution can be changed on the device, if desired. So with your Wohler DM 602 you are optimally equipped for many applications in the long term.

Advantages

• Made in Germany: Integrated magnets, shockproof casing
• Robust sensor up to 1,200 inWC with a high resolution range (0.01 inWC)
• Illuminated display for a fast reading of the measurement results
• Stable measurement results in any position due to a high quality sensor
• Fast print out on site with the Wohler TD 100
• Several units selectable
• Small, light-weight and handy

7135 DP 700 Leakage Tester EN by Wohler

Ever-increasing demands are being placed on the energy efficiency of VAC systems. In that respect the leak-tightness of ductwork has a particularly important role to play. This aspect holds the greatest potential for saving energy, if it is possible to adapt the air flow to actual requirements in conjunction with low leakage rates. In this respect, low device-and ductwork leakages will in future need to be taken into consideration a great deal more. Consequently, corresponding measurements will gain in importance.

• Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m²
• Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
• Leakage testing of rooms
• On-site and laboratory measurements on structural components (e.g. OSB boards, windows)
• Can be integrated into the final inspection routine of series production runs including optional program remote control, (controlled from a PC via USB port)
• Suitable for tests of lower output performance (40 l/s), 110 V, 60 Hz
