Wohler DP 700 Leakage Tester EN - 7135
Item #:
WLR-7135
Brand:
Wohler
Share this product:

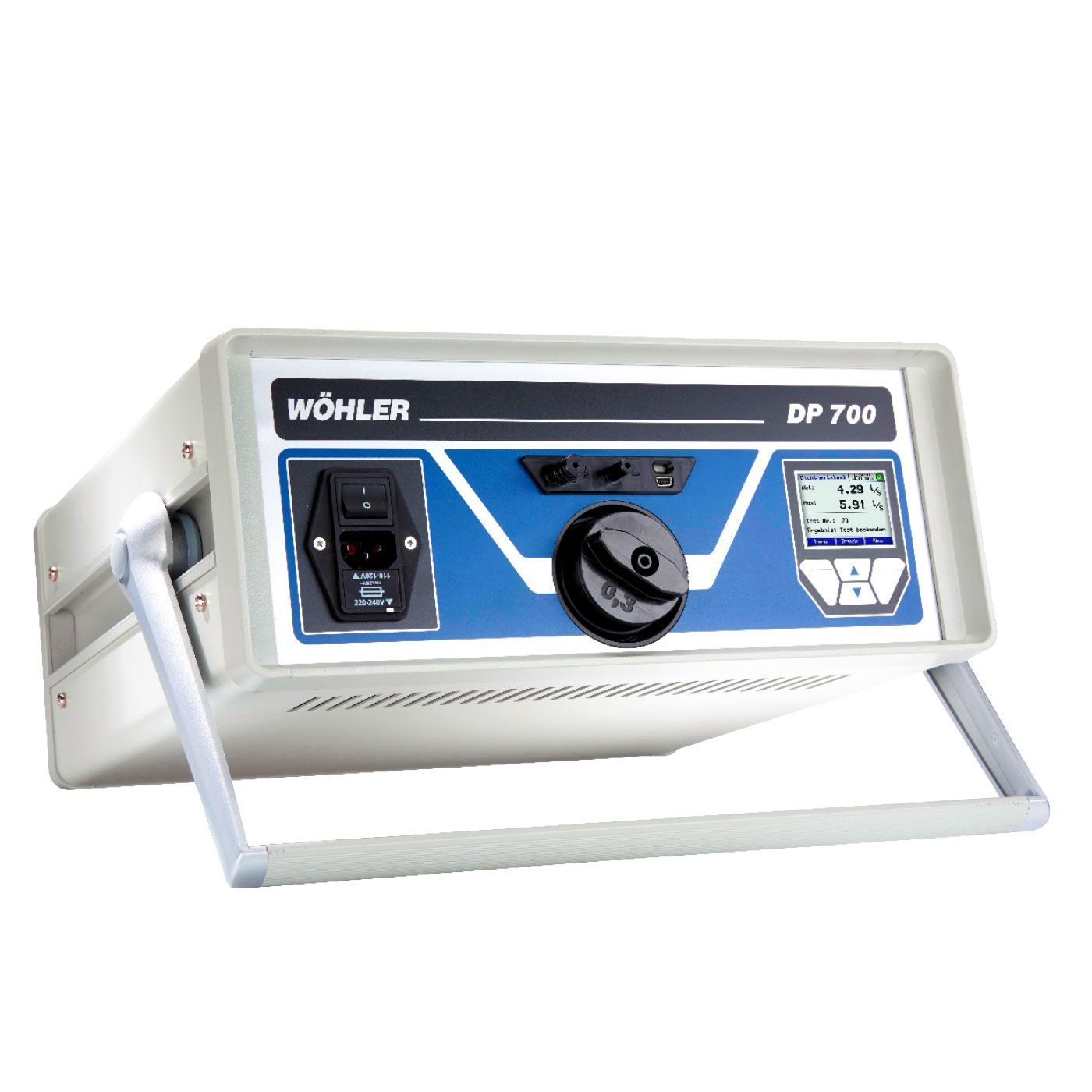

7135 DP 700 Leakage Tester EN by Wohler
Ever-increasing demands are being placed on the energy efficiency of VAC systems. In that respect the leak-tightness of ductwork has a particularly important role to play. This aspect holds the greatest potential for saving energy, if it is possible to adapt the air flow to actual requirements in conjunction with low leakage rates. In this respect, low device-and ductwork leakages will in future need to be taken into consideration a great deal more. Consequently, corresponding measurements will gain in importance.

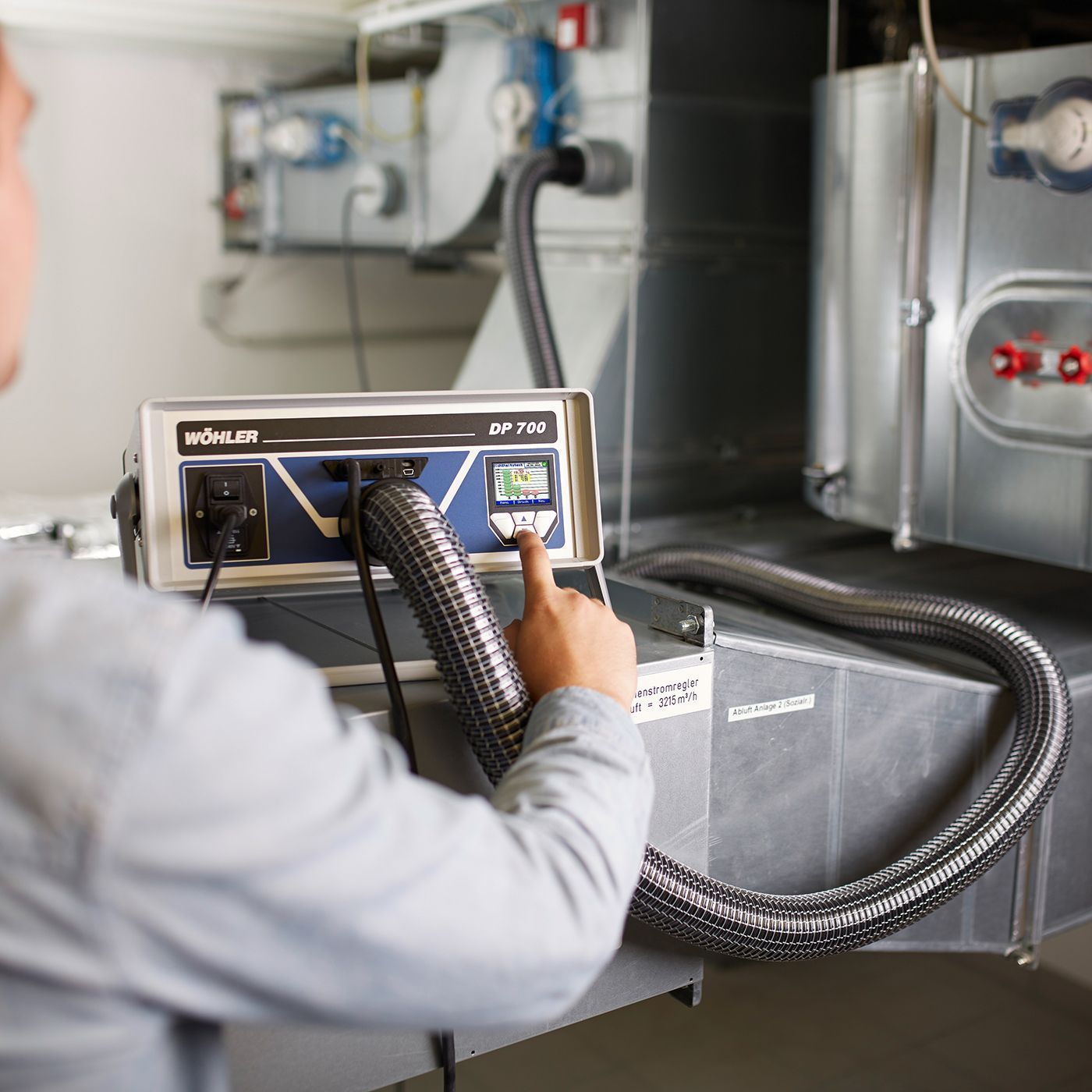

- Leakage tests in large air leakage ranges: From individual components through to complete systems consisting of several 100 m2
- Leakage tests on air-conditioning units, switchgear cabinets, climatic test cabinets, heat exchangers, cabinets for clean room technology and other housings
- Leakage testing of rooms
- On-site and laboratory measurements on structural components (e.g. OSB boards, windows)
- Can be integrated into the final inspection routine of series production runs including optional program remote control, (controlled from a PC via USB port)
- Suitable for tests of lower output performance (40 l/s), 110 V, 60 Hz
Pressure | |
Principle | piezoresistive semiconductor sensor |
Measurement range | ± 7000 Pa |
Resolution | 0.1 Pa…± 900 Pa, thereafter 1 Pa |
Accuracy | ± 0.5 Pa or ± 2.5 % of reading |
Volume flow (based on 1013 hPa and 20 °C) | |
Principle | Hot film anemometer |
Measurement range | 0.0000 to 55.00 l/s |
Resolution | 0.0001 l/s to 0.3000 l/s, 0.001 l/s to 3.000 l/s, 0.01 l/s > 3.00 l/s |
Accuracy | ± 0.0009 l/s or 5% of reading |
General technical data | |
Power supply | 110…230 V, 50…60 Hz |
Power consumption | Max. 9 A |
Operating temperature range | 5 °C…40 °C |
Storage temperature range | - 20 °C…+ 50 °C |
Weight | 9.5 kg |
