Cables

22277-2 Power Cable - 20 FT by WeatherHawk

WeatherHawk input power cable in a 20 foot (6 meter) length. Use for connection of an external power supply (12-18 volt DC, 1 amp source) to any WeatherHawk weather station.

Terminated with a weatherproof connector on the WeatherHawk end, and terminated, with a jack connector with strain relief (5.5 mm O.D. x 2.5 mm I.D. x 9 mm deep) on the other end.

Shipping weight: less than 1 pound (0.45 Kg).

22277-3 Power Cable - 35 FT by WeatherHawk

WeatherHawk input power cable in a 35 foot (10.7 meter) length. Use for connection of an external power supply (12-18 volt DC, 1 amp source) to any WeatherHawk weather station.

Terminated with a weatherproof connector on the WeatherHawk end, and terminated, with a jack connector with strain relief (5.5 mm O.D. x 2.5 mm I.D. x 9 mm deep) on the other end.

Shipping weight: 2 pounds (0.91 Kg).

22277-1 Power Cable - 50 FT by WeatherHawk

Weatherproof input power cable in a 50 foot (15.3 meter) length. Use for connection of an external power supply (12-18 volt DC, 1 amp source) to any WeatherHawk weather station.

Terminated with a weatherproof connector on the WeatherHawk end, and terminated, with a jack connector with strain relief (5.5 mm O.D. x 2.5 mm I.D. x 9 mm deep) on the other end.

Shipping weight: 2.5 lbs (1.13 Kg)

WeatherHawk Power Cable 25 mtr

18550-1 25' Weatherproof RS232 Cable by WeatherHawk

Weatherproof Serial Cable (RS-232) in 25 foot (7.6 meter) length,. Cable has sanoprene jacket for weather and UV resistance, and nickle plated brass DB-9 connector shells. When fully seated and connected to a WeatherHawk serial I/O connector the connection is splashproof.

Typically used with permanently connected WeatherHawk 232 systems for real-time data connections to a home control system or computer for data display.

NOTE: Powered optical isolator or optical modem interface to Host PC is strongly recommended for ESD and lightning protection.

Ships as part of a system carton, or in one box 12 x 12 x 12 inches. Weight: Under 2 pounds (under 1 Kg)

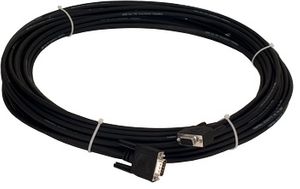

18550-2 50' Weatherproof RS232 Cable by WeatherHawk

Weatherproof Serial Cable (RS-232) in 50 foot (15.3 meter) length,. Cable has sanoprene jacket for weather and UV resistance, and nickle plated brass DB-9 connector shells. When fully seated and connected to a WeatherHawk serial I/O connector the connection is splashproof.

Typically used with permanently connected WeatherHawk 232 systems for real-time data connections to a home control system or computer for data display.

NOTE: Powered optical isolator or optical modem interface to Host PC is strongly recommended for ESD and lightning protection.

Ships as part of a system carton, or in one box 12 x 12 x 12 inches. Weight: Under 2 pounds (under 1 Kg)

18550-7 75' Weatherproof RS232 Cable by WeatherHawk

Weatherproof Serial Cable (RS-232) in 75 foot (23 meter) length. Cable has sanoprene jacket for weather and UV resistance, and nickle plated brass DB-9 connector shells. When fully seated and connected to a WeatherHawk serial I/O connector the connection is splashproof.

Typically used with permanently connected WeatherHawk 232 systems for real-time data connections to a home control system or computer for data display.

NOTE: Powered optical isolator or optical modem interface to Host PC is strongly recommended for ESD and lightning protection.

Ships as part of a system carton, or in one box 12 x 12 x 12 inches. Weight: Under 5 pounds (under 3 Kg).

COAX NTN-L10

COAX NTN-L100/Low loss base station antenna

COAX NTN-L17/Low loss base station antenna-17 ft (5 meters)

COAX NTN-L25/25 foot low loss antenna cable

COAXNTN -L50/Low loss 900MHz antenna cable

COAX RPSMA-L2/PolyPhaser connection cable

COAX RPSMA-L5/Antanna cable - 5 feet long

COAXRPSMA-L10
