Oakton Cole-Parmer EC91346S 4-electrode Conductivity Cell, 3/4" NPT(M) - WD-19503-00

Oakton Cole-Parmer EC91346S 4-electrode Conductivity Cell, 3/4" NPT(M) - WD-19503-00

$376.22

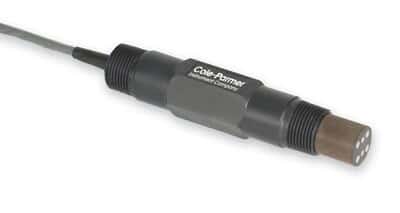

WD-19503-00 Cole-Parmer EC91346S 4-electrode Conductivity Cell, 3/4" NPT(M) by Oakton

The four-cell electrode is made of epoxy with 416 SS contacting electrodes. 3/4" fittings at both ends allow for insertion into a T-fitting or submersion installations. Withstands pressures up to 6 bar (90 psi).

Four-cell electrode eliminates polarizing effects.

  • Ensures more accurate measurements in highly conductive samples
  • Measurement range of 0 to 500 mS/cm
  • Integral 100 ΩPt RTD temperature sensor
Cell Constant K = 0.3
Cell Type Contact
Electrode Material 416 SS
Body Material Epoxy
Fitting ¾" NPT(M)
Mounting Type Threaded
Min temperature (° C) -5
Max temperature (° C) 80
Min temperature (° F) 23
Max temperature (° F) 176
Cable Length (m) 10
Cable Length (ft) 30
Description 4-electrode conductivity cell, 3/4" NPT(M)
