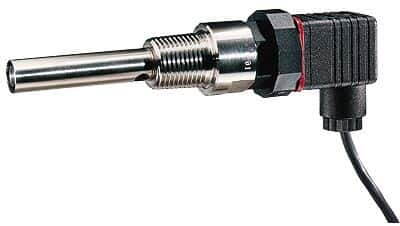

Oakton Cole-Parmer C621-2-1-1 Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC - WD-19500-45

Item #:
WD-19500-45
Brand:
Oakton Instruments
Oakton Cole-Parmer C621-2-1-1 Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC - WD-19500-45
$224.07
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Oakton Cole-Parmer C621-2-1-1 Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC - WD-19500-45

Oakton Cole-Parmer C621-2-1-1 Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC - WD-19500-45

$224.07

WD-19500-45 Cole-Parmer C621-2-1-1 Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC by Oakton

Cells withstand pressures up to 150 psi (at 135°C for SS; 25°C for CPVC and PVDF).

  • Ten-foot cables with stripped ends
  • Flow-through, in-line, swage, and dip styles available
Cell Constant K = 1.0
Cell Type Contact
Electrode Material 316 SS
Body Material 316 SS
Fitting ½" NPT(M)
Mounting Type Threaded
Min temperature (° C) -5
Max temperature (° C) 140
Min temperature (° F) 23
Max temperature (° F) 248
Cable Length (m) 3
Cable Length (ft) 10
Description Conductivity Cell; K=1.0, SS, In-Line; 100 Ohm Pt RTD ATC
