Model 265

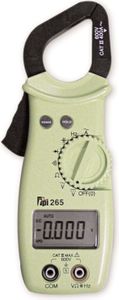

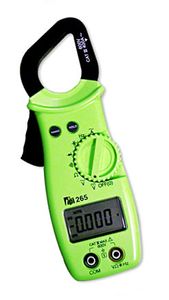

265 Clamp-On Tester with Frequency and Capacitance by Test Products International

Perfect for tight, narrow, spaces. The new TPI 265 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.

The 265 is a hand-held, autoranging clamp-on DMM. Extra large numerals, capacitance, frequency and data hold are just a few of the features of the 265. An affordable choice, the 265 offers measurements in all basic electrical functions.

Features:

• Slim jaw and body design for use is crowded electrical panels
• 4,000 count display
• Capacitance range up to 4,000 microfards to test run and start capicitors
• 0.1 DC millivolt resolution to accurately measure thermocouples and use optional adapters
• 0.01 AC Amp resolution to measure heat anticipator current
• Frequency measurement capability
• AC/DC volts up to 600V and AC Amps up to 400A
• Diode, resistance and audible continuity ranges
• Auto / manual ranging
• Data hold
• Auto power off
• CAT III 600V rated
• cULus 61010
• 3-year limited warranty

Applications:

• Test start and run capacitors
• Measure heat anticipator current
• Determine thermocouple voltage
• Test line and control voltages
• Measure heating element resistance
• Measure and adjust variable frequency drives

The 265 comes complete with the following accessories:

• Carrying Pouch
• Test Lead Set
• Instruction Manual
• Battery
