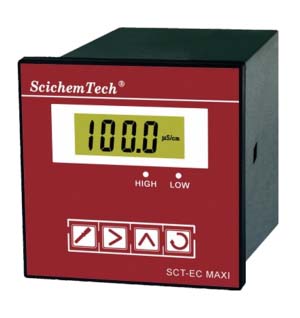

ScichemTech SCT-EC-MAXI EC (Electrical Conductivity) Maxi Controller - SCT-108.005.13
Item #:
SCT-108-005-13
Brand:
ScichemTech
Share this product:
SCT-108.005.13 SCT-EC-MAXI EC (Electrical Conductivity) Maxi Controller by ScichemTech
Includes:
- Conductivity sensor
- Fixation clamps
- Calibration solution
- Instruction manual
Features:
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS are designed with creativeness to get the elegance and produced with proper quality, and meets the specifications for the Water related applications with high level performance.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS are supplied with the suitable electrode with SCT standard 10 meters cable. (New series) 3 ranges of EC can be adjusted in a single controller and the ranges can be switched easily.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS are an industrial instrument used for online analysis and monitoring.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS are made in a attractive pleasant colour with a Large and Clear blue white LCD Display
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS are Microprocessor based controllers, which gives stable and accurate readings.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS uses Low power consumption and produces less internal heat.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS has an isolated 4-20 mA current output.
- SCT-EC (Electrical Conductivity) MAXI CONTROLLERS proved to work continuously in any harsh environmental conditions for the in line measurement and control of accurate EC value and it give the direct measurement and readings.
Measuring range (three-grade range, keyboard selection) | 0~19.99, 0~199.9, 0~1999μs/cm |
Display method | Liquid-crystal display with 3½ bit LCD segment code |
Accuracy | 1.5% (FS) |
Stability | ±2×10-3(FS)/24h |
Work pressure | 0~0.5mpa |
Media temperature | 0~50°C |
Temperature compensation | With 25°C as the reference point, digital compensation |
Output current | Isolation of 4~20ma active output |
Control output | Double contacts output of high limit (normally open) and low limit (normally closed |
Contact capacity | 7A/250C ac (with resistance load) |
Optional electrode | 1.0cm-1 metal electrode |
Cable length | 5m in normal condition |
Environment conditions | Temperature: 0~50°C; humidity: ≤85%rh |
Power supply | AC 220v±10% 50hz |
Overall dimension | 96×96×120 mm (height x width x depth) |
Face opening | 92×92mm |
Installation method | Panel-mounted |
