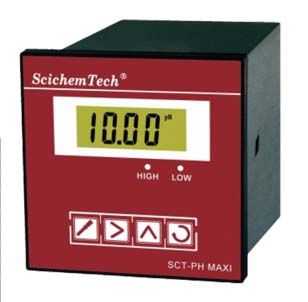

ScichemTech SCT-pH-MAXI pH Maxi Controller - SCT-108.005.11
Item #:
SCT-108-005-11
Brand:
ScichemTech
Share this product:
SCT-108.005.11 SCT-pH-MAXI pH Maxi Controller by ScichemTech
Includes:
- pH sensor
- Fixation clamps
- Calibration solution
- Instruction manual
Features:
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS are designed with creativeness to get the elegance and produced with proper quality, and meets the specifications for the Water related applications with high level performance.
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS are supplied with the suitable electrode with SCT standard 10 meters cable.(new series).
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS are an industrial instrument used for online analysis and monitoring.
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS are made in a attractive pleasant colour with a Large and Clear blue white LCD Display
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS are Microprocessor based controllers, which gives stable and accurate readings.
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS uses Low power consumption and produces less internal heat.
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS has an isolated 4-20 mA current output.
- SCT- pH (potential of Hydroxide) MAXI CONTROLLERS proved to work continuously in any harsh environmental conditions for the In line measurement and control of accurate pH value and it give the direct measurement and readings.
Measurement range | 0.00~14.00 pH |
Accuracy | ±0.1 pH |
Display mode | 3 1/2 bit LCD with BACKLIGHT |
pH calibration method | Three-points calibration |
pH temperature compensation | Manual compensation with 25°C as the benchmark |
Output current | Isolate the active output of 4~20mA. |
Output control | Dual-contact output with both higher and lower limits (normally open and normally-close respectively) |
Contact capacity | 7A/250V AC (resistive load) |
Length of the cable | 10 m |
Screw size | 3/4” pipe thread |
Requirements on water samples | Pressure: ≤0.3MPa Flow rate: ≤3 m/s |
Power supply | AC 220V±10%; 50Hz |
Environmental conditions | Temperature: 0~50°C Humidity: ≤85%RH |
Overall dimension | 96x96x120mm (Height x Width x Depth) |
Face Opening | 92x92mm |
Installation method | Panel-mounted |
