Sauermann Tank Pump 21' discharge head (capacity 0.50 gal) 230V - SI83UL02UN23
Item #:
SAU-SI83UL02UN23
Brand:
Sauermann
Share this product:

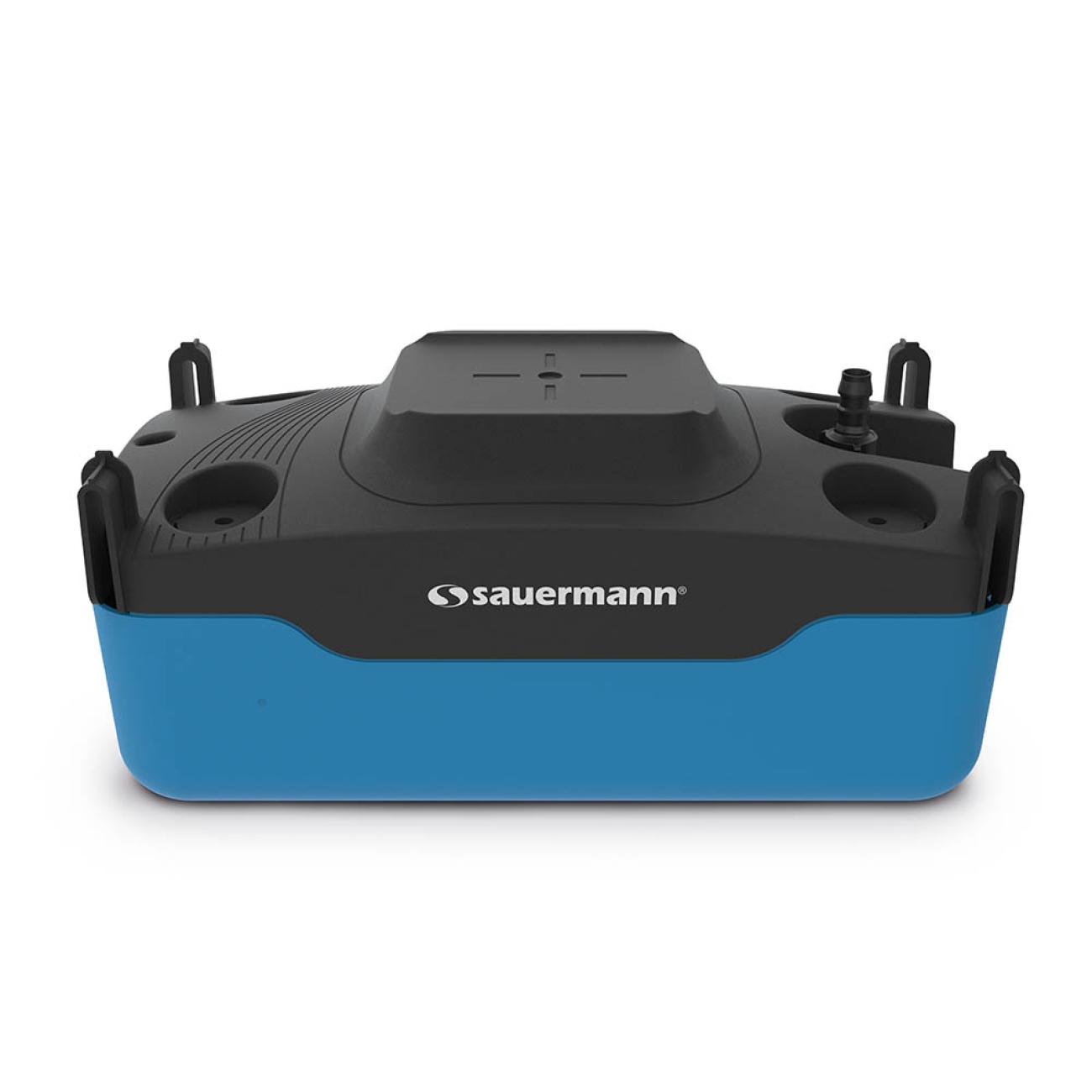

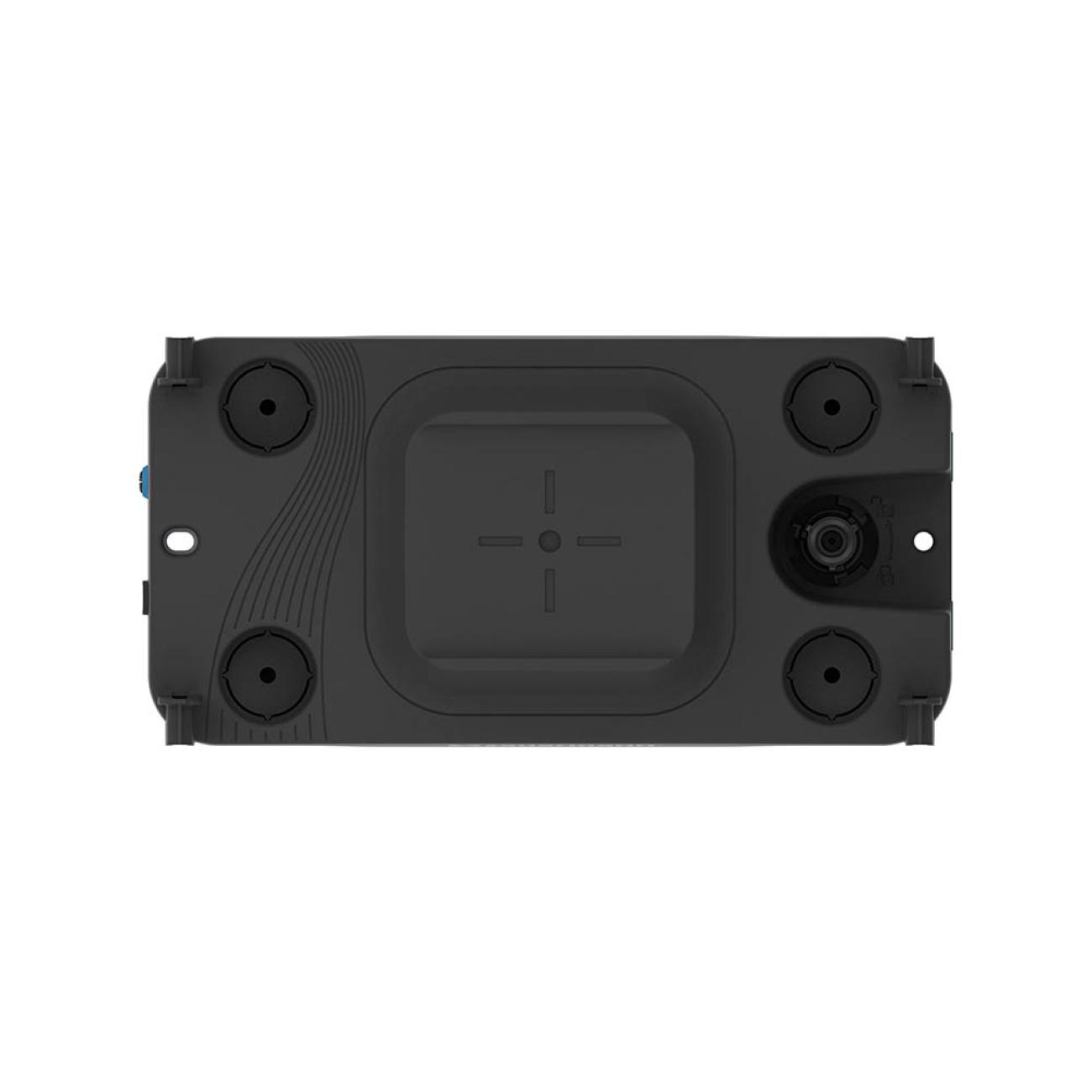

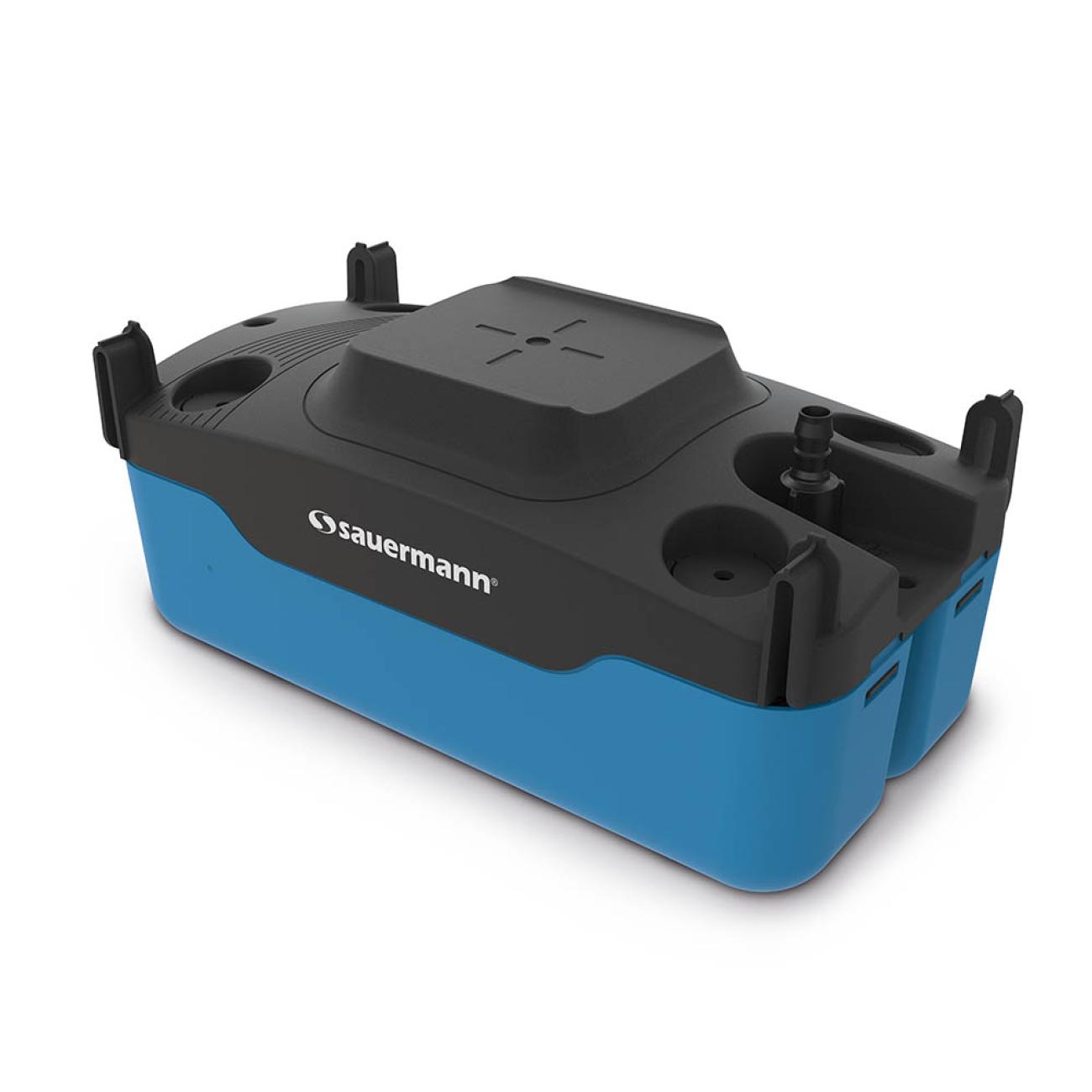

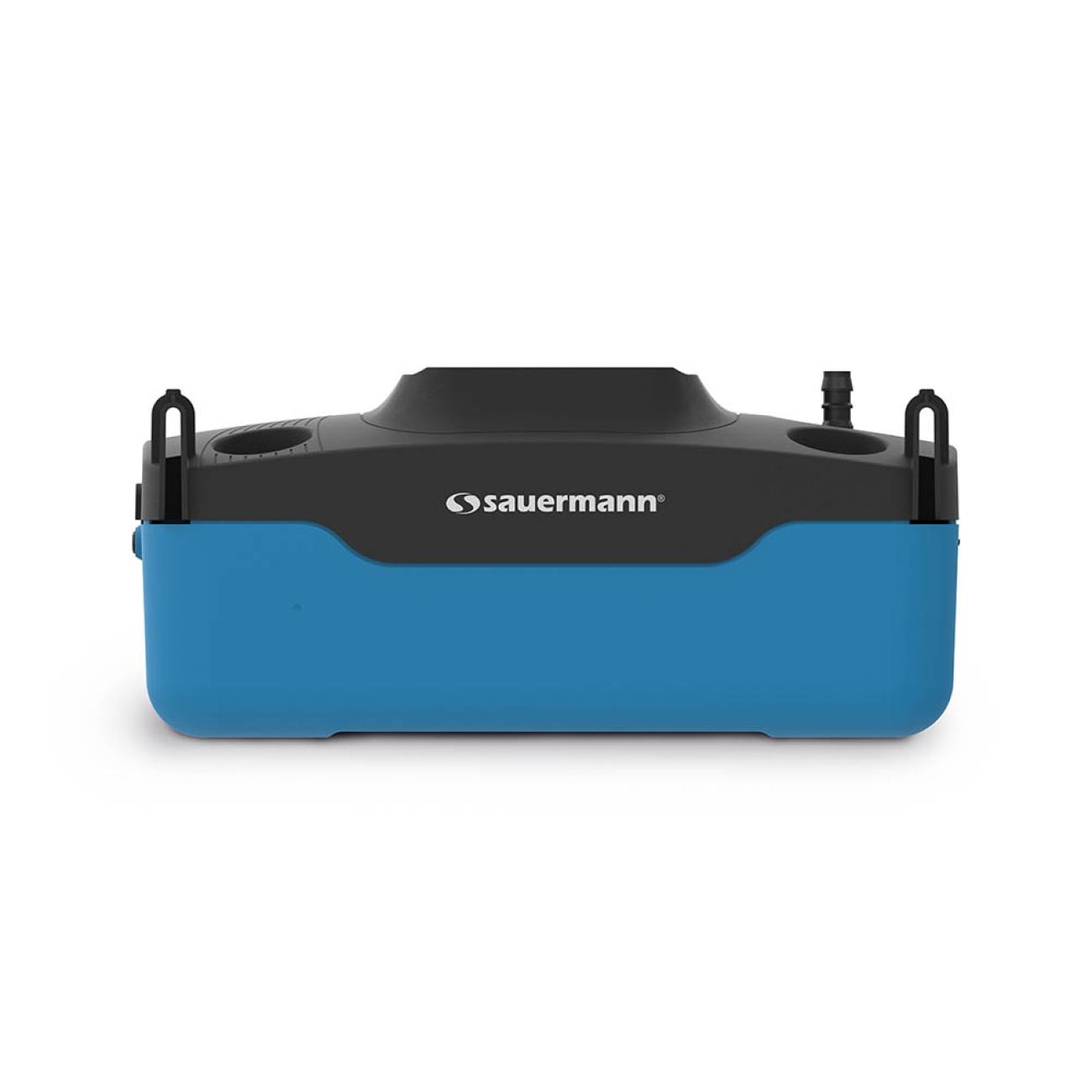

SI83UL02UN23 Tank Pump 21' discharge head (capacity 0.50 gal) 230V by Sauermann
Sauermann engineers have redesigned the tank pump from the inside-out, making the Si-83 more compact than any other tank pump in its class, all while redefining just how easy tank pump installation and maintenance can be in the field. The Si-83 even comes with a customized Smartphone App that makes installation both simple and intuitive.
The Si-83 is constructed from rugged materials and components for exceptional durability and reliability. The Si-83 tank pump from Sauermann is perfect for residential A/C (up to 20 kW / 60,000 BTU) and heating units (73 kW / 250,000 BTU).
- Exceptional Durability and Reliability
- Quicker & Easier Maintenance
- Quick & Easy Installation in any place
- Regular Duty
Kit content
- 1 One-piece centrifugal pump with 1/2 gallon (2 l) tank
- 1 Integrated barb end check valve, &Olsash; ext. 3/8" (10 mm)
- 1 6' (1.8 m) power cord, US plug
- 1 Built-in safety switch, 3' (1 m) wires, bare ends
- 1 Adaptor int. &Olsash; 5/8"- 3/4"- 1" - 1 1/4"- 1 1/2" (15/17 mm - 20 mm - 24/25 mm - 32 mm - 40 mm)
- 2 screws, 2 plugs
High lift: 22' (shut-off head) | |
Tank capacity | ½ gallon (2 l) |
Mains supply | SI83UL02UN12, SI83UL42UN12, SI83UL72UN12: 120 V~ 60 Hz - 84 W – 1.7 A SI83UL02UN23, SI83UL42UN23, SI83UL72UN23: 230 V~ 60 Hz - 126 W - 1.55 A |
Max discharge head | 21' (flow rate: 15 gph), 6.4 m (57 l/h) |
Shut-off head (flow rate 0) | 22' (6.7 m) |
Sound level in application at 1 m | ≤ 45 dBA (Measured in Sauermann acoustic lab, pump operating with water) |
Max condensate temperature | 131°F (55°C), 176°F (80°C) short peaks 10 minutes |
Max condensate acidity | pH > 2.5 (Gas condensing boilers) |
Pump Weight (with packaging) | 4 lbs (1.83 kg) |
Box dimensions | L 12" 3/8 x W 5" 15/16 x H 6" 7/8 (L 315 mm x W 151 mm x H 175 mm) |
Masterpack | 5 pieces: L 30" 11/16 x W 13" 1/16 x H 8" (L 780 mm x W 332 mm x H 203 mm) |
Pallet Quantity | 105 pieces (EUR size) |
Safety switch | SI83UL02UN12, SI83UL02UN23: NC: 5 A - 42 V peak SI83UL42UN12, SI83UL42UN23: NO: 5 A - 42 V peak SI83UL72UN12, SI83UL72UN23: NO/NC: 5 A - 42 V peak |
Thermal protection (overheating) | Yes: 248°F (120°C) (auto reset) |
Operating conditions | 7%: 16s ON - 212s OFF |
Class | I |
IP index | IP44 |
Safety standard | UL certified by Intertek CSA certified |
RoHS directive | Compliant |
WEEE directive | Compliant |
