Sauermann Si-10 Mono-bloc Condensate Removal Pump (5gph)230V - SI10UL02UN23
Item #:
SAU-SI10UL02UN23
Brand:
Sauermann
Share this product:

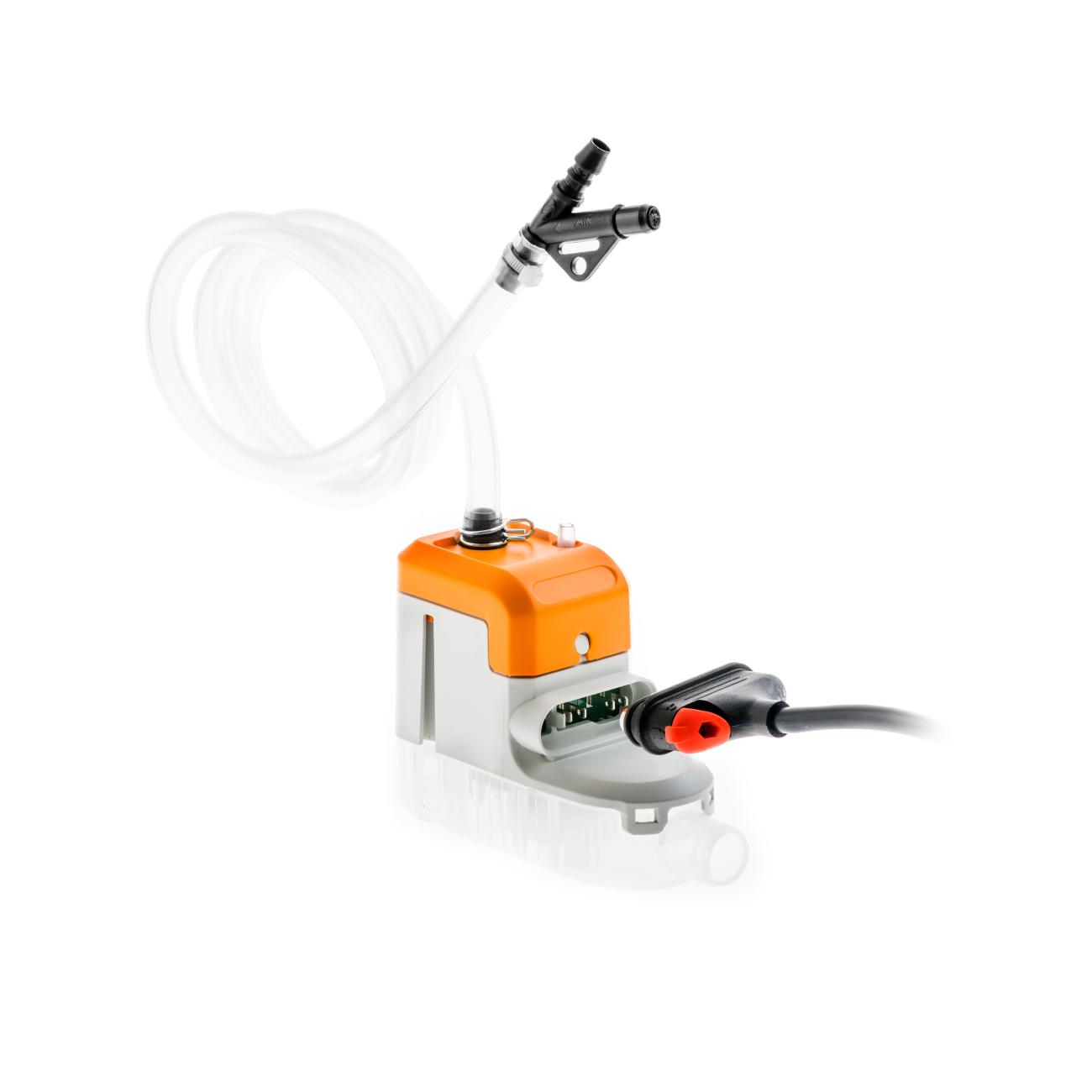

SI10UL02UN23 Si-10 Mono-bloc Condensate Removal Pump (5gph)230V by Sauermann
Integrated detection unit for installation in tight spaces.
- Mounting bracket
- Integrated detection unit
- Compact monobloc design
Kit content
- Si-10 piston pump with integrated float detection unit
- 5' power cable: 2 power wires, 2 safety contact wires
- Anti-vibration mounting bracket
- Rubber elbow
- Vent tube
MAX. FLOW RATE: | 5.0 gph |
MAX. DISCHARGE HEAD: | 33ft; flow rate = 1 gph |
MAX. PRESSURE: | 46ft; flow rate = 0 gph |
SOUND LEVEL AT 3.3FT: | 23 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating with water, out of application) |
POWER SUPPLY: | 120 V ~ 60 Hz - 14 W (SI10UL01UN12) 230 V ~ 50/60 Hz - 14 W (SI10UL01UN23) |
INSULATION CLASS: | Double Insulation |
DETECTION LEVELS: | On: 23/32" • Off: 15/32" • Safety: 13/16" |
SAFETY SWITCH: | NC 8A resistive - 250 V |
THERMAL PROTECTION: | 240°F auto-reset |
OPERATING CONDITIONS: | 70%: 3s ON – 1s OFF |
PUMP DIMENSIONS: | L 2 5/8" x W 1 3/4" x H 3" |
SAFETY STANDARDS: | UL / CSA certified by Intertek |
RoHS & WEEE DIRECTIVES: | Compliant |
PACKAGING: | 0.86 lbs - L 4 2/5" x W 3 3/5" x H 3 3/5" |
MASTERPACK: | 25 pieces |
