Sauermann Si-20 Mini Condensate Removal Pump (5gph) 230V - SI20UL01UN23
Item #:
SAU-SI20UL01UN23
Brand:
Sauermann
Share this product:
SI20UL01UN23 Si-20 Mini Condensate Removal Pump (5gph) 230V by Sauermann
Slim design for a quick installation inside the air conditioning unit.
- Slim Design
- Incredibly Quiet
- Rubber Dampers
- Drain Safe Device

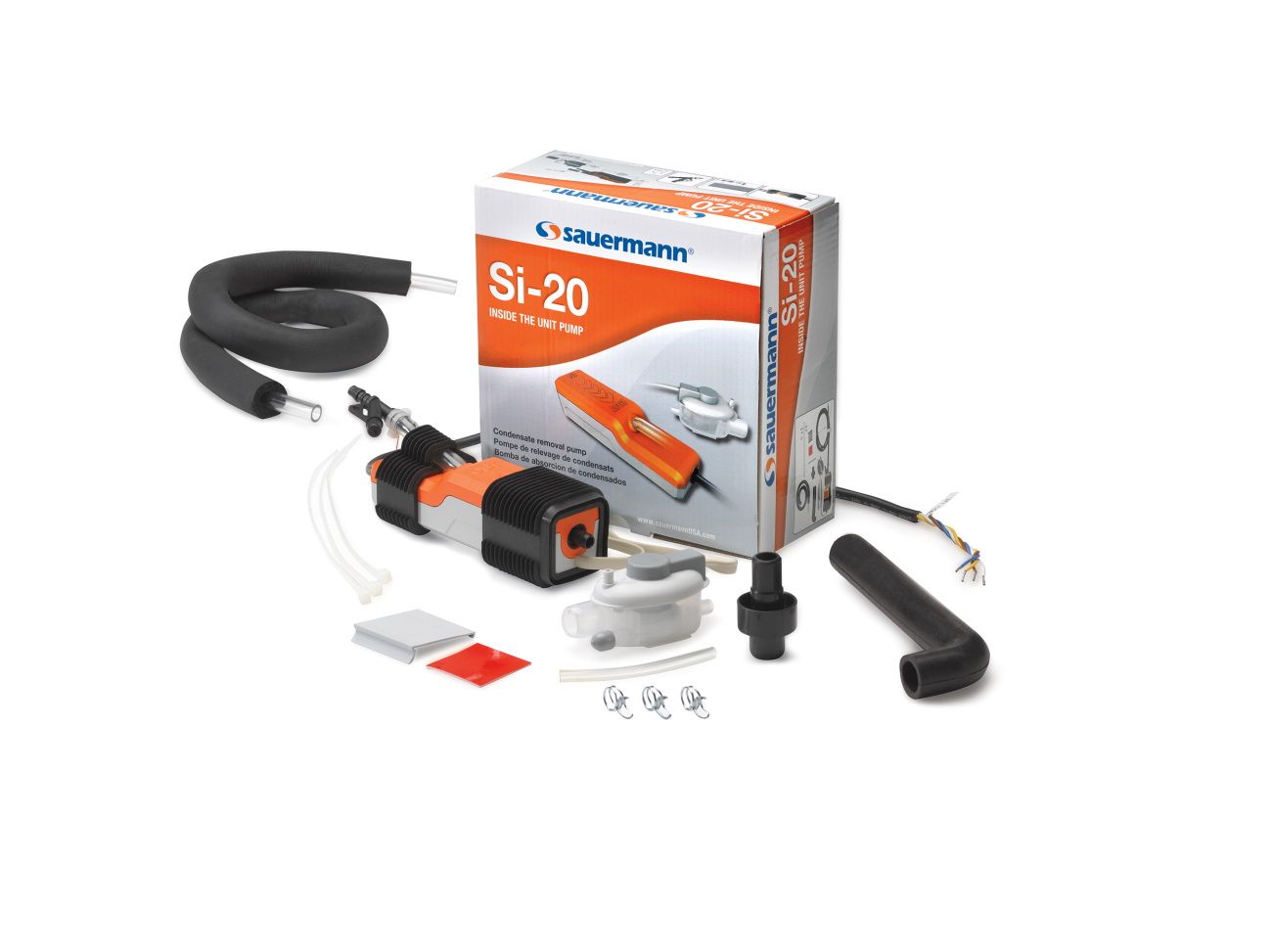

Kit content

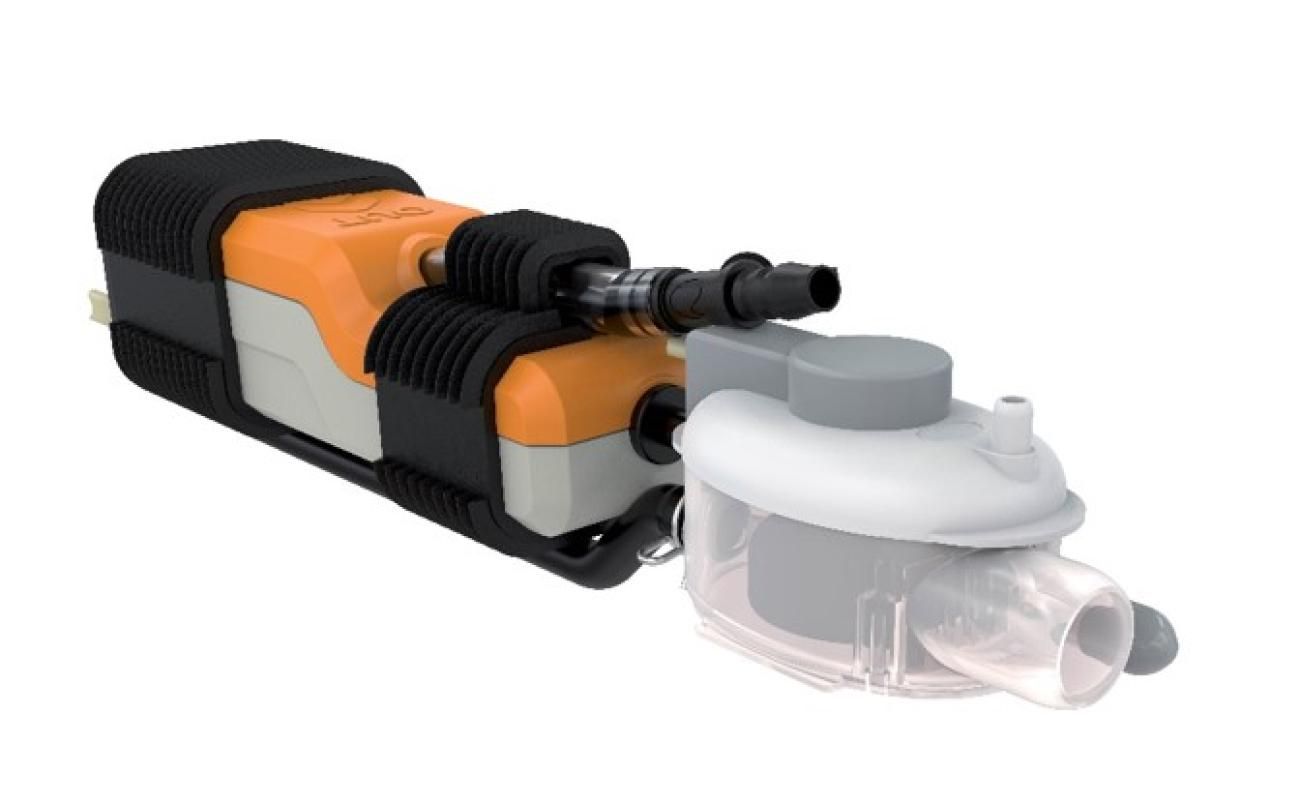

- 1 Si-20 Piston Pump
- 1 Detection Unit - SI2958, 2' cable
- 1 Anti-Vibration Rubber Dampers (2)
- 1 Clear PVC Tubing, 1/4" i.d. fitted with a Drain Safe Device
- 1 Power Cable, 5' (2 power wires, 2 safety wires)
- 1 90 Deg Rubber Elbow, 19/32" i.d. x L 6"
- 1 Vent Tube, 5/32" i.d. x L 2 15/16"
- 1 Split Connector, 1/2" - 10/16"
- 1 Double Wire Clamps (3)
- 1 Tie Wraps (3)
| MAX. FLOW RATE: | 5.0 gph |
| MAX. SUCTION HEAD: | 10ft |
| MAX. DISCHARGE HEAD: | 33ft; flow rate = 1 gph |
| MAX. PRESSURE: | 46ft; flow rate = 0 gph |
| SOUND LEVEL AT 3.3FT: | 22 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating with water, out of application) |
| POWER SUPPLY: | 120 V ~ 60 Hz - 14 W (SI20UL01UN12) 230 V ~ 50/60 Hz - 14 W (SI20UL01UN23) |
| INSULATION CLASS: | Double Insulation |
| DETECTION LEVELS: | On: 5/8" • Off: 7/16" • Safety: 3/4" |
| SAFETY SWITCH: | NC 8A resistive - 250 V |
| THERMAL PROTECTION: | 240°F auto-reset |
| OPERATING CONDITIONS: | 120V - 50%: 3s ON – 3s OFF 230V - 60%: 3s ON – 2s OFF |
| PUMP DIMENSIONS: | L 5 3/8" x W 1 1/2" x H 1 1/2" |
| SAFETY STANDARDS: | UL / CSA certified by Intertek |
| RoHS & WEEE DIRECTIVES: | Compliant |
| PACKAGING: | 1.1 lbs - L 6 3/4" x W 6 3/8" x H 2 7/8" |
| MASTERPACK: | 6 pieces |
