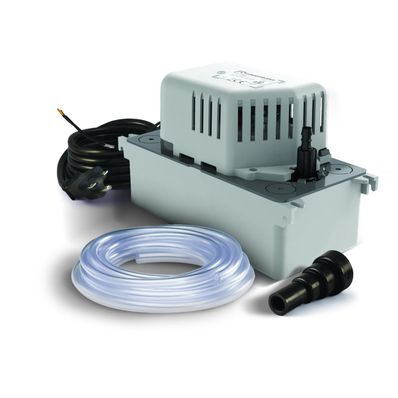

Sauermann Tank Pump 23' discharge head w. 20' of tubing (capacity 0.50 gal) 230V - SI1801US23/T
Item #:
SAU-SI1801US23-T
Brand:
Sauermann
Share this product:
SI1801US23/T Tank Pump 23' discharge head w. 20' of tubing (capacity 0.50 gal) 230V by Sauermann
The Si-1801 17' Low Head pump is capable of evacuating 132 gph, and is suitable for condensing boilers & furnaces, industrial refrigeration cases, and air conditioning units.
- Built to Resist: Can endure acidic condensate pH > 2.5
- Easily removable tank for simple maintenance
- Oil & acid resistant flow
- High performance: Discharges condensate up to 17'
- Low sound level: ≤ 45 dBA
Kit content
- One-piece centrifugal pump with 1/2 gal. tank
- Integrated barb end check valve 3/8" o.d. (10 mm)
- 6' power cord
- Safety switch wires (1' bare ends)
- Adaptor: 5/8" i.d., 3/4" i.d, 1" i.d., 1 1/4" i.d.
| 17' LOW HEAD | 23' W/ TUBING | 23' W/O TUBING | |
| MAX. FLOW RATE: | 132 gph | 132 gph | 132 gph |
| SHUT-OFF HEAD: | 17.5 ft @ 60Hz | 23ft @ 60Hz | 23ft @ 60Hz |
| SOUND LEVEL: | 45 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating w/ water, out of application) | 45 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating w/ water, out of application) | 45 dBA according to EN ISO 3744 (Measured at LNE lab, pump operating w/ water, out of application) |
| POWER SUPPLY: | 120V ~ 60 Hz - 85 W - 1.45A (SI1801LHUS11) | 120V ~ 60 Hz - 85 W - 1.45A (SI1801US11/T) 230V ~ 50/60 Hz - 80 W - 0.72A (SI1801US23/T) |
120V ~ 60 Hz - 85 W - 1.45A (SI1801SCUS11) 230V ~ 50/60 Hz - 80 W - 0.72A (SI1801US23) |
| DETECTION LEVELS: | On: 2 3/32" • Off: 1 21/32" • Safety: 2 1/2" | On: 2 3/32" • Off: 1 21/32" • Safety: 2 1/2" | On: 2 3/32" • Off: 1 21/32" • Safety: 2 1/2" |
| SAFETY SWITCH: | NC 4A resistive - 42 V peak | NC 4A resistive - 42 V peak | NC 4A resistive - 42 V peak |
| MAX CONDENSATE TEMP: | 150° F / Short Peak 176° F - 1m | 150° F / Short Peak 176° F - 1m | 150° F / Short Peak 176° F - 1m |
| MAX CONDENSATE ACIDITY: | pH > 2.5 (Gas Condensing Boilers) | pH > 2.5 (Gas Condensing Boilers) | pH > 2.5 (Gas Condensing Boilers) |
| THERMAL PROTECTION: | 230° F auto-reset | 248° F auto-reset | 248° F auto-reset |
| OPERATING CONDITIONS: | 120V - 30%: 3s ON - 7s OFF | 120V - 30%: 3s ON - 7s OFF 230V - 30%: 3s ON - 7s OFF |
120V - 30%: 3s ON - 7s OFF 230V - 30%: 3s ON - 7s OFF |
| PUMP DIMENSIONS: | 11"L x 5 3/16"W x 6 5/7"H | 11"L x 5 3/16"W x 6 5/7"H | 11"L x 5 3/16"W x 6 5/7"H |
| SAFETY STANDARDS: | UL / CSA certified by Intertek | UL / CSA certified by Intertek | UL / CSA certified by Intertek |
| RoHS & WEEE DIRECTIVES: | Compliant | Compliant | Compliant |
| PACKAGING: | 4.4 lbs (11 5/8" L x 5 5/16"W x 7 1/4"H) | 6.2 lbs (11 5/8" L x 5 5/16"W x 9 7/8"H) | 5.5 lbs (11 5/8" L x 5 5/16"W x 7 1/4"H) |
| MASTERPACK: | 6 pieces | 4 pieces | 6 pieces |
