Sauermann pH Safe 1 Neutralization cartridge - PH0100SIUN23

Item #:
SAU-PH0100SIUN23
Brand:
Sauermann
Sauermann pH Safe 1 Neutralization cartridge - PH0100SIUN23
$28.62
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Sauermann pH Safe 1 Neutralization cartridge - PH0100SIUN23

Sauermann pH Safe 1 Neutralization cartridge - PH0100SIUN23

$28.62

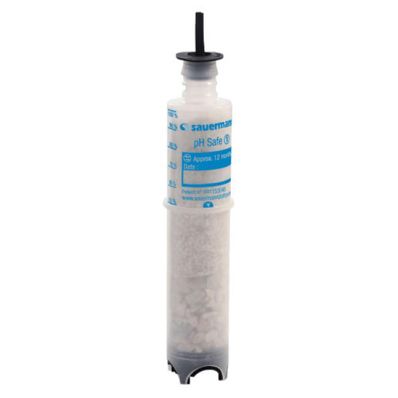

PH0100SIUN23 pH Safe 1 Neutralization cartridge by Sauermann

The pH Safe 1 Neutralization Cartridge is safe, easy-to-install and eco-friendly. It's capable of neutralizing up to 200 gallons (800 liters) of acidic condensates at pH3. The pH Safe 1 has been specifically designed to treat condensates produced by gas condensing boilers for use with Sauermann centrifugal tank pumps.

  • Preserves the plumbing system and the environment
  • Prevents damage to concrete and plastics
  • Prevents corrosion on metal parts
  • Easy-to-install and replaces; fits right into the tank pump inlet
Max. condensate acidity
pH > 3.0 (Gas condensing boilers
Max. condensate volume
800 litres (200 USgal)
Sauermann pump compatibility
Si-82 range; SI1800 range
Max. boiler capacity: 25 kW
(can be more depending on actual pH level and condensate volume)
Estimated replacement period: 12 months
(can be more depending on actual pH level and condensate volume)
Inlet tube diameter
Ø int. 15 – 17 mm (OD 19/32" - 5/8")
Max. condensate temperature
65 °C (80 °C – 1 min) 150 °F (176 °F – 1 min)
Safety standards
CE
RoHS directive
Compliant
WEEE directive
Compliant
Treatment product Weight
0.100 kg
Weight (including box)
0.130 kg
Cartridge
L 151 x Ø ext. 29.5 mm Inlet Ø ext. 17 mm (OD 5/8")
Packaging
1 piece (L 42 x W 40 x H 170 mm)
(L 1"21/32 x W 1"9/16 x H 6"11/16)
Masterpack
15 pieces - 2.0 kg - L 215 x W 135 x H 180 mm
(L 8"15/32 x W 5"5/16 x H 7"1/16) – 4.4lb
Pallet quantity
1875 pieces (EUR size) – 250 kg (550 lb)
