RAE Specialty Tubes

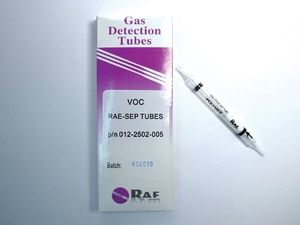

RAE-Sep™ VOC Tubes for UltraRAE Monitor (5 Tubes / Box)

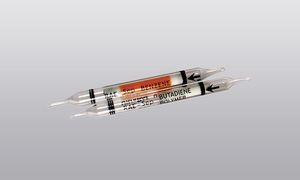

012-3022-010 RAE-Sep™ Benzene Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box) by RAE Systems

Use these tubes with the UltraRAE 3000 to test for specific compounds, including benzene in oil refinery processes, butadiene in polymer and rubber manufacturing. When used with RAESep tubes, the UltraRAE 3000 photoionization detector equipped with a 9.8eV PID lamp, can get a benzene snapshot in 60 seconds, or deliver a full STEL measurement over a 15 minute period.

Key Features

• Available for benzene and butadiene
• Compatible with 9.8eV PID in the UltraRAE 3000
• Benzene snapshot in 60 seconds
• Full STEL reading in 15 minutes

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

012-3024-010 RAE-Sep™ Butadiene Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box) by RAE Systems

Use these tubes with the UltraRAE 3000 to test for specific compounds, including benzene in oil refinery processes, butadiene in polymer and rubber manufacturing. When used with RAESep tubes, the UltraRAE 3000 photoionization detector equipped with a 9.8eV PID lamp, can get a benzene snapshot in 60 seconds, or deliver a full STEL measurement over a 15 minute period.

Key Features

• Available for benzene and butadiene
• Compatible with 9.8eV PID in the UltraRAE 3000
• Benzene snapshot in 60 seconds
• Full STEL reading in 15 minutes

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

RAE-Sep™ Halocarbon Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box)

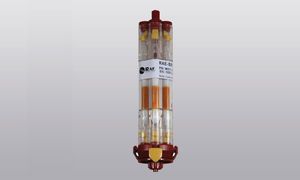

M01-0312-000 RAE-Sep™ Benzene Separation Tubes Cartridges for MultiRAE Benzene (6 Cartridges / Box) by RAE Systems

RAE-Sep™ tube cartridges are used with the MultiRAE Benzene to perform a snapshot measurement of benzene. One cartridge contains six benzene RAE-Sep™ tubes.

Key Features

• Available for Benzene snap shot measurement only
• Compatible with MultiRAE Benzene only
• Automatic sampling time adjustment according to environment temperature
• 2 modes: Total VOC measurement & Benzene mode
• Allows 6 Benzene snap shot measurement

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

025-2000-010 Disposable, Single-Use VOC Zeroing Tubes for PID (10 Tubes / Box) by RAE Systems

Remove impurities from the ambient air with these single-use tubes for true zero calibration of your RAE Systems gas monitors. The charcoal or filter in each tube removes potential Volatile Organic Compounds (VOCs) from the air that might throw off readings for highly sensitive monitors, such as the ppbRAE 3000 photoionization detector or the MultiRAE Pro multi-threat monitor.

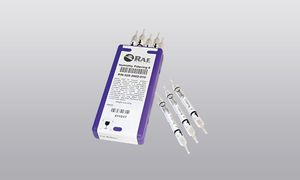

025-2002-010 Humidity Filtering II Tube (10 Tubes / Box) by RAE Systems

The Humidity Filtering II Tube dries the sample gas entering pumped instruments. It is particularly suited for removing humidity effects on photoionization detectors (PIDs) while making VOC measurements, and typically lasts for about a half hour of continuous readings. The Humidity Filtering II Tube utilizes a solid adsorbent to remove moisture without impacting the detection and measurement of most VOCs.

Key Features

• Enables continuous reading of VOCs under extremely humid conditions for about one half hour (per tube) at room temperature
• Prevents drifting readings at high humidity when the sensor is dirty.
• Attaches to the Flex-I-Probe™ inlet with the same adapter used for ppbRAE 3000 VOC zeroing tubes.
• Especially useful for measuring chlorinated solvents and fuels under high humidity conditions as are often encountered during soil and water remediation.
• Can be used with other instruments having a built-in pump such as MiniRAE Lite, ppbRAE 3000, UltraRAE 3000, MultiRAE Lite, MultiRAE and MultiRAE Pro when humidity is an issue, when using a PID or making low-level LEL sensor measurements.
• Caution: Absorbs some compounds such as ammonia and slows the response of heavy compounds, especially at low concentrations or low temperatures.

Applications

• Soil and water remediation
• VOCs in landfill sites

VOC / CO2 Zeroing Tubes for IAQRAE and MultiRAE IR Monitors (10 Tubes / Box)

Smoke Tubes (Stannic Chloride Irritant, 6 Tubes / Box)

Smoke Kit (Aspirator Bulb, Tip Breaker, Leather Case)

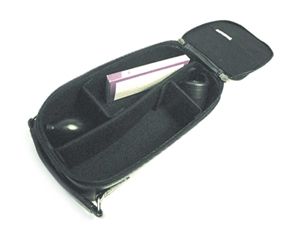

Smoke Kit (Aspirator Bulb, Tip Breaker, Box Smoke Tubes, Leather Case)

RAE-Sep™ Halocarbon Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box)

025-2002-010 Humidity Filtering II Tube (10 Tubes / Box) by RAE Systems

The Humidity Filtering II Tube dries the sample gas entering pumped instruments. It is particularly suited for removing humidity effects on photoionization detectors (PIDs) while making VOC measurements, and typically lasts for about a half hour of continuous readings. The Humidity Filtering II Tube utilizes a solid adsorbent to remove moisture without impacting the detection and measurement of most VOCs.

Key Features

• Enables continuous reading of VOCs under extremely humid conditions for about one half hour (per tube) at room temperature
• Prevents drifting readings at high humidity when the sensor is dirty.
• Attaches to the Flex-I-Probe™ inlet with the same adapter used for ppbRAE 3000 VOC zeroing tubes.
• Especially useful for measuring chlorinated solvents and fuels under high humidity conditions as are often encountered during soil and water remediation.
• Can be used with other instruments having a built-in pump such as MiniRAE Lite, ppbRAE 3000, UltraRAE 3000, MultiRAE Lite, MultiRAE and MultiRAE Pro when humidity is an issue, when using a PID or making low-level LEL sensor measurements.
• Caution: Absorbs some compounds such as ammonia and slows the response of heavy compounds, especially at low concentrations or low temperatures.

Applications

• Soil and water remediation
• VOCs in landfill sites

Smoke Kit (Aspirator Bulb, Tip Breaker, Box Smoke Tubes, Leather Case)

VOC / CO2 Zeroing Tubes for IAQRAE and MultiRAE IR Monitors (10 Tubes / Box)

012-3024-010 RAE-Sep™ Butadiene Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box) by RAE Systems

Use these tubes with the UltraRAE 3000 to test for specific compounds, including benzene in oil refinery processes, butadiene in polymer and rubber manufacturing. When used with RAESep tubes, the UltraRAE 3000 photoionization detector equipped with a 9.8eV PID lamp, can get a benzene snapshot in 60 seconds, or deliver a full STEL measurement over a 15 minute period.

Key Features

• Available for benzene and butadiene
• Compatible with 9.8eV PID in the UltraRAE 3000
• Benzene snapshot in 60 seconds
• Full STEL reading in 15 minutes

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

M01-0312-000 RAE-Sep™ Benzene Separation Tubes Cartridges for MultiRAE Benzene (6 Cartridges / Box) by RAE Systems

RAE-Sep™ tube cartridges are used with the MultiRAE Benzene to perform a snapshot measurement of benzene. One cartridge contains six benzene RAE-Sep™ tubes.

Key Features

• Available for Benzene snap shot measurement only
• Compatible with MultiRAE Benzene only
• Automatic sampling time adjustment according to environment temperature
• 2 modes: Total VOC measurement & Benzene mode
• Allows 6 Benzene snap shot measurement

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

Smoke Tubes (Stannic Chloride Irritant, 6 Tubes / Box)

RAE-Sep™ VOC Tubes for UltraRAE Monitor (5 Tubes / Box)

025-2000-010 Disposable, Single-Use VOC Zeroing Tubes for PID (10 Tubes / Box) by RAE Systems

Remove impurities from the ambient air with these single-use tubes for true zero calibration of your RAE Systems gas monitors. The charcoal or filter in each tube removes potential Volatile Organic Compounds (VOCs) from the air that might throw off readings for highly sensitive monitors, such as the ppbRAE 3000 photoionization detector or the MultiRAE Pro multi-threat monitor.

012-3022-010 RAE-Sep™ Benzene Separation Tubes for UltraRAE Series Monitor (10 Tubes / Box) by RAE Systems

Use these tubes with the UltraRAE 3000 to test for specific compounds, including benzene in oil refinery processes, butadiene in polymer and rubber manufacturing. When used with RAESep tubes, the UltraRAE 3000 photoionization detector equipped with a 9.8eV PID lamp, can get a benzene snapshot in 60 seconds, or deliver a full STEL measurement over a 15 minute period.

Key Features

• Available for benzene and butadiene
• Compatible with 9.8eV PID in the UltraRAE 3000
• Benzene snapshot in 60 seconds
• Full STEL reading in 15 minutes

Applications

• Confined Space Entry
• Environmental Cleanups/Remediation
• Exploration
• Leak Detection
• Plant Shutdown & Turn-Around

Smoke Kit (aspirator bulb, tip breaker, box smoke tubes, leather case)
