Rescue & Retrieval - Tripod and Guard Systems

RT07 Rescue Tripod, Max. Height 7' with Built in Cable Pulley by Pelsue

The Pelsue Rescue Tripod is designed for industrial rescue applications. Telescoping anodized-aluminum legs allow for height adjustments in 5" increments per leg. The legs also adjust to any angle to meet the most demanding situations! Cast-aluminum head has three heavy duty rigging anchor points plus built-in, man rated, cable ready pulley. Our rescue tripod adjusts to 11'-6" allowing for full retrieval of a litter basket in vertical rescues. Tripod also features locking legs.

Features:

• Minimum height: 6' Model P054, 4' Model RT07
• Maximum height: 11'6" Model P054, 7' Model RT07
• Weight: 62 lbs. Model P054, 57 lbs Model RT07
• Three rigging anchor points proof rated to 5000 lbs. at fully extended height
• Built-in cable ready pulley
• No load supporting welds
• Adjustable telescoping legs - 5" increments
• Feet convert to soft ground anchors and are predrilled for anchor bolts or stakes
• Base chain included to maintain stability

P054 Rescue Tripod, Max. Height 11' with Built in Cable Pulley by Pelsue

The Pelsue Rescue Tripod is designed for industrial rescue applications. Telescoping anodized-aluminum legs allow for height adjustments in 5" increments per leg. The legs also adjust to any angle to meet the most demanding situations! Cast-aluminum head has three heavy duty rigging anchor points plus built-in, man rated, cable ready pulley. Our rescue tripod adjusts to 11'-6" allowing for full retrieval of a litter basket in vertical rescues. Tripod also features locking legs.

Features:

• Minimum height: 6' Model P054, 4' Model RT07
• Maximum height: 11'6" Model P054, 7' Model RT07
• Weight: 62 lbs. Model P054, 57 lbs Model RT07
• Three rigging anchor points proof rated to 5000 lbs. at fully extended height
• Built-in cable ready pulley
• No load supporting welds
• Adjustable telescoping legs - 5" increments
• Feet convert to soft ground anchors and are predrilled for anchor bolts or stakes
• Base chain included to maintain stability

Heavy Duty Carry Case for 7' Tripod RT07

Heavy Duty Carry Case for 11' Tripod P054

Secondary Pulley Assembly with Autolock Carabiner, for P054/RT07LG Series

LG5A 5000 lb. Lifeguard System - Heavy Duty with Leveling Feet by Pelsue

Pelsue's Lifeguard Systems function as 3 in 1 Confined Space entry systems. These systems act as an OSHA compliant barrier for the confined space, fall protection anchorage, and rescue and retrieval system. Designed for easy breakdown and setup, the Lifeguard won't impact your efficiency and will help insure a safe working environment. Made with durable aluminum and steel the unit will last for years with proper care. These systems are capable of supporting a hoist, winch, Self Retracting Lifeline (SRL), 3-way unit or a combination of devices to best suit your application.

Compliant with standards such as OSHA 1910.146, OSHA 1926, ANSI A10.14, and ANSI Z117.1.

3-IN-1 Confined Space Barrier, Fall Arrest and Retrieval System (With appropriate SRL/3 Way Lifeline or Hoist)

• Barricade (OSHA requires open manholes must be barricaded)
• Overhead 5000lbs load lets this system qualify as a Fall Arrest System
• Able to lift 350 lbs* making it a practical retrieval system

Features:

• Portable Two Piece Unit for Easy Set-Up
• One Person setup - the upper assembly will support itself with only one attached to the lower assembly.
• Dual Anchor Points
• Complaint with Fall Arrest Standards (OSHA 1926 & ANSI A10.14), and Confined Space Entry Standards (OSHA 1910.146 & ANSI Z117.1.)
• Usable with a Hoist, Winch, SRL, 3-way or a combination of devices to be suit your application

Capacity and Compliance Specifications:

• Man Rated Load Capacity: 350 lbs.*
• Overhead Proof Load: 5000 lbs.
• System complies with OSHA safety standards when used by a competent individual.

Materials:

• Upper Assembly: Structural Grade Aluminum & Steel
• Guard Assembly: Structural Grade Aluminum
• Winch Mount: 5052-H32 Aluminum
• Hardware: Grade 5 Steel

LG5A System Includes:

• 1 ea. Upper Assembly
• 1 ea. Guard Assembly
• Set of 4 ea. Rubber Feet (shipped loose)
• 1 ea. winch bracket & mounting plate for use with standard retrieval winch.
• 1 ea. Pulley assembly with auto-lock carabiner.
• Set of flexible draw latches to anchor the assembly to the guard assembly.

Suggested winches (not included):

• PH07C
• PH07R

Suggested accessories (not included):

• LGL-B, Secondary winch bracket
• PA01, Secondary winch pulley

This is an umbrella term by which we mean:

• The device or system is tested to insure compliance with OSHA Safety Standards for confined space rescue and retrieval or fall arrest for personnel.
• The device or system is intended to be used for confined space rescue and retrieval or fall arrest by a worker who is trained as a "competent person" and/or "qualified" per OSHA Safety Standards.

Upper Assy 5000lb Lifeguard

Guard Assy 5000lb Lifeguard

Lifeguard Secondary Winch Bracket (includes MB-PF1 and a platform bracket)

Carry Case for Upper Sect LG Series

Carabiner, Steel, with Auto-lock, Z359 Compliant

Pulley, Cable Ready 2-1/2" Aluminum Sheave, SS Plates

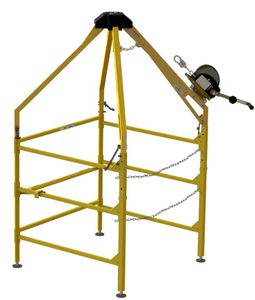

LG5X 5000 lb. Lifeguard System - Heavy Duty with Leveling Feet - Large 48"x48" by Pelsue

Pelsue's Lifeguard Systems function as 3 in 1 Confined Space entry systems. These systems act as an OSHA compliant barrier for the confined space, fall protection anchorage, and rescue and retrieval system. Designed for easy breakdown and setup, the Lifeguard won't impact your efficiency and will help insure a safe working environment. Made with durable aluminum and steel the unit will last for years with proper care. These systems are capable of supporting a hoist, winch, Self Retracting Lifeline (SRL), 3-way unit or a combination of devices to best suit your application.

Compliant with standards such as OSHA 1910.146, OSHA 1926, ANSI A10.14, and ANSI Z117.1.

3-IN-1 Confined Space Barrier, Fall Arrest and Retrieval System (With appropriate SRL/3 Way Lifeline or Hoist)

• Barricade (OSHA requires open manholes must be barricaded)
• Overhead 5000lbs load lets this system qualify as a Fall Arrest System
• Able to lift 350 lbs* making it a practical retrieval system

Features:

• Portable Two Piece Unit for Easy Set-Up
• One Person setup - the upper assembly will support itself with only one attached to the lower assembly.
• Dual Anchor Points
• Complaint with Fall Arrest Standards (OSHA 1926 & ANSI A10.14), and Confined Space Entry Standards (OSHA 1910.146 & ANSI Z117.1.)
• Usable with a Hoist, Winch, SRL, 3-way or a combination of devices to be suit your application

Capacity and Compliance Specifications:

• Man Rated Load Capacity: 350 lbs.*
• Overhead Proof Load: 5000 lbs.
• System complies with OSHA safety standards when used by a competent individual.

Materials:

• Upper Assembly: Structural Grade Aluminum & Steel
• Guard Assembly: Structural Grade Aluminum
• Winch Mount: 5052-H32 Aluminum
• Hardware: Grade 5 Steel

Suggested winches (not included):

• PH07C
• PH07R

Suggested accessories (not included):

• LGL-B, Secondary winch bracket
• PA01, Secondary winch pulley

This is an umbrella term by which we mean:

• The device or system is tested to insure compliance with OSHA Safety Standards for confined space rescue and retrieval or fall arrest for personnel.
• The device or system is intended to be used for confined space rescue and retrieval or fall arrest by a worker who is trained as a "competent person" and/or "qualified" per OSHA Safety Standards.

Guard Assembly for LG5X

Top Assembly for LG5X

Secondary Pulley Assembly with Auto-lock Carabiner, for P54/RT07LG

Pulley - 5/8" Rope Diameter, 6000lbs, Stainless Steel Sheave, Aluminum Plates
