Atago Abbe Refractometer - NAR-3T
Item #:
NAR-3T
Brand:
Atago U.S.A.
Share this product:

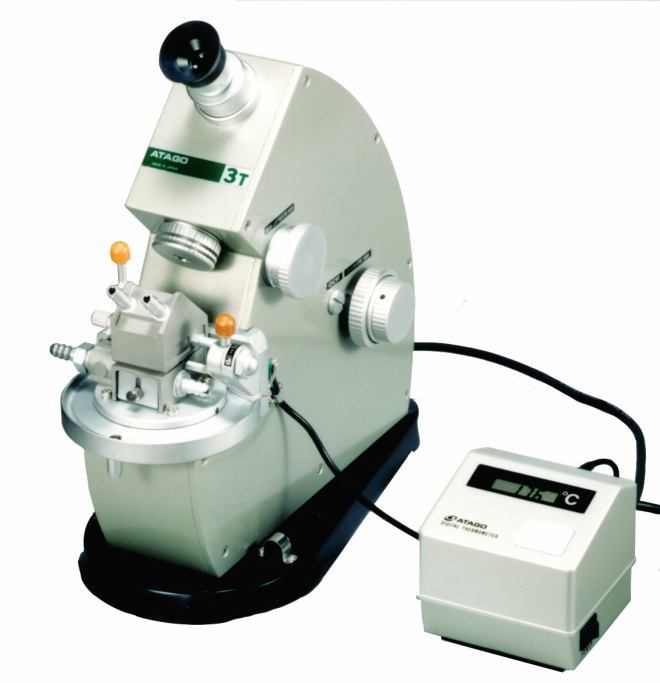

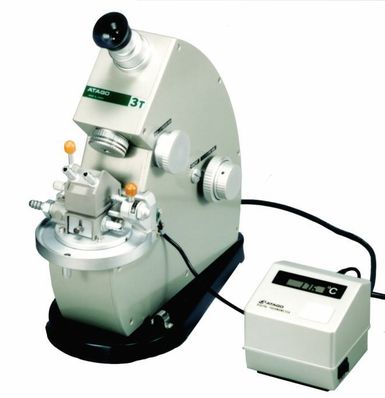

NAR-3T Abbe Refractometer by Atago U.S.A.
The NAR-3T has been developed to give improved measuring accuracy and ease of use. This has been achieved by making fundamental improvements to the optical system, utilizing a larger scale, incorporating a high intensity lamp and using a double control knob to give quick and finer control.
| Measurement range | Refractive index (nD) 1.30000 to 1.71000 Brix 0.00 to 95.00% |
| Minimum scale | Refractive index (nD) 0.0002 Brix 0.1% |
| Measurement Accuracy | Refractive index (nD) ± 0.0001 Brix ± 0.05% |
| Average dispersion value | nF - nC ( to be calculated according to conversion table ) |
| Digital Thermometer | Indication range 0.0 to 50.0°C ( Accuracy ± 0.2°C, Minimum indication 0.1°C ) |
| Measurement Temperature Range | 5 to 50°C |
| Power Supply | AC100 to 240V , 50/60Hz |
| Power Consumption | 5VA |
| Dimensions & Weight | 12×20×25cm, 5.8kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer) |
| Optional | • 10% Sucrose Solution (±0.03%) : RE-110010 • 20% Sucrose Solution (±0.03%) : RE-110020 • 30% Sucrose Solution (±0.03%) : RE-110030 • 40% Sucrose Solution (±0.04%) : RE-110040 • 50% Sucrose Solution (±0.05%) : RE-110050 • 60% Sucrose Solution (±0.05%) : RE-110060 • Test piece C with m-naphthalene : RE-1197 • Monobromona-phthalene as contact liquid : RE-1196 • Methylene iodide containing sulfur solution : RE-1199 • Eyepiece for polarizing : RE-1146 * Calibration Certificate : Contact an ATAGO representative for details. |
| Parts | • Test piece A with m-naphthalene : RE-1195 *As for the consumable & the part please view this. |
