Atago Abbe Refractometer - NAR-2T
Item #:
NAR-2T
Brand:
Atago U.S.A.
Share this product:

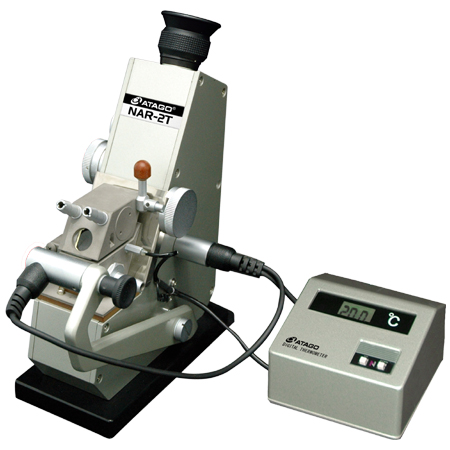

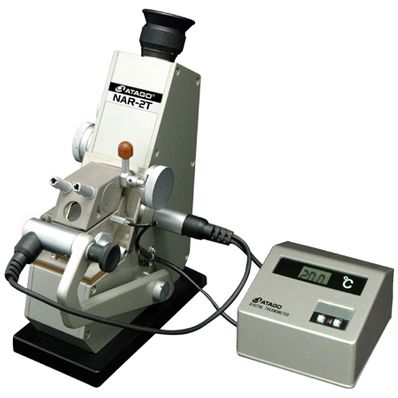

NAR-2T Abbe Refractometer by Atago U.S.A.
Designed for use with compounds which require measurement at high temperature.
Measurement range | Refractive index (nD) 1.3000 to 1.7000 Brix 0.0 to 95.0% |
Minimum scale | Refractive index (nD) 0.001 Brix 0.5% |
Measurement Accuracy | Refractive index (nD) ± 0.0002 Brix ± 0.1% |
Average dispersion value | nF-nC ( to be calculated according to conversion table ) |
Digital Thermometer | Indication range 0.0 to 120.0°C ( Accuracy 0 to 100°C : ±0.2°C, 100 to 120°C : ±0.5°C, Minimum indication 0.1°C ) |
Measurement Temperature Range | 5 to 120°C |
Light Source | LED |
Power Supply | AC100 to 240V , 50/60Hz |
Power Consumption | 5VA |
Dimensions & Weight | 12×20×25cm, 5.8kg (Refractometer) 10×11×7cm, 0.5kg (Thermometer) |
Optional | • 10% Sucrose Solution (±0.03%) : RE-110010 • 20% Sucrose Solution (±0.03%) : RE-110020 • 30% Sucrose Solution (±0.03%) : RE-110030 • 40% Sucrose Solution (±0.04%) : RE-110040 • 50% Sucrose Solution (±0.05%) : RE-110050 • 60% Sucrose Solution (±0.05%) : RE-110060 • Test piece C with m-naphthalene : RE-1197 • Test piece D for measurement of film : RE-1498 • Monobromona-phthalene as contact liquid : RE-1196 • Methylene iodide containing sulfur solution : RE-1199 • Eyepiece for polarizing : RE-1146 * Calibration Certificate : Contact an ATAGO representative for details. |
Parts | • Test piece A with m-naphthalene : RE-1195 *As for the consumable & the part please view this. |
