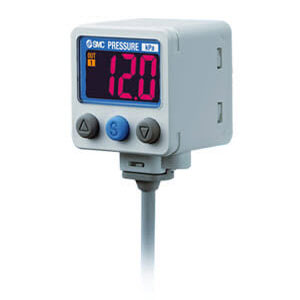

SMC ISE40A High Precision 2-Color Display Digital Pressure Switch - ISE40A-N01-V-P

Item #:
ISE40A-N01-V-P
Brand:
SMC
SMC ISE40A High Precision 2-Color Display Digital Pressure Switch - ISE40A-N01-V-P
$106.31
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
SMC ISE40A High Precision 2-Color Display Digital Pressure Switch - ISE40A-N01-V-P

SMC ISE40A High Precision 2-Color Display Digital Pressure Switch - ISE40A-N01-V-P

$106.31

ISE40A High Precision 2-Color Display Digital Pressure Switch by SMC

Pressure Switch ISE40A series is a high precision digital switch, providing improved functions, performance and variations over the previous ISE40 series. Abnormal values can be seen at a glance on the 2-color display. The settings of the master pressure switch can be copied to up to 10 slave pressure switches, reducing the setting work, and preventing mistakes in setting. Other features include: simple 3-step setting, analog output, wide variety of piping variations, and a power-saving function for MPa-kPa. The ISE40A is also CE, UL/CSA and RoHS compliant.

  • High precision digital pressure switch w/2-color display
  • IP65 and RoHS compliant
  • Capable of copying up to 10 switches simultaneously
  • 3-step setting
  • Space saving design w/several piping and mounting variations

Product contains:

  • SMC 2-COLOR HI PRECISION DIG PRES SWITCH)
  • N01 (NPT 1/8, M5 Female Thread)
  • V (PNP Open Collector 2 Outputs+Analog Current/Auto-shift Switching)
  • P (Unit Switching Function, Initial Value psi, Not Allowed for Use in Japan)
  • Lead Wire 2m
Specifications:
Model No.
ZSE40A (For vacuum)
ZSE40AF (For compound)
ISE40A (For positive pressure)
Rated pressure range
0 to -101.3 kPa
-100.0 to 100.0 kPa
-0.100 to 1.000 MPa
Set pressure range
10.0 to -105.0 kPa
-105.0 to 105.0 kPa
-0.105 to 1.050 MPa
Withstand pressure
500 kPa
500 kPa
1.5 MPa
Minimum display unit
0.1 kPa
0.1 kPa
0.001 MPa
Applicable fluid
Air, inert gases and incombustible gases
Power supply voltage
12 to 24 VDC ±10%, ripple (p-p) 10% or less (protected against reverse connection)
Current consumption
45 mA or less
Switch output
NPN or PNP open collector output 2 outputs
  Max. load current
80 mA
Max. applied voltage
28 V (NPN output)
Residual voltage
1 V or less (at 80 mA load current)
Response time
2.5 ms or less (Chattering-proof function working: 20, 100, 500, 1000 or 2000 ms selected)
Short circuit protection
Provided
Repeatability
±0.2%F.S. ±1 digit
Hysteresis Hysteresis mode
0 to variable *1
Window comparator mode
Analogue output Voltage output *2 Output Voltage (rated pressure range)
1 to 5 V ±2.5%F.S.
0.6 to 5 V ±2.5%F.S.
Linearity
±1%F.S.
Output impedance
approx. 1 kΩ;
Current output *3 Output current (rated pressure range)
4 to 20 mA ±2.5%F.S.
2.4 to 20 mA ±2.5%F.S.
Linearity
±1%F.S.
Load impedance
Max. load impedance: 300 Ω (at power supply voltage of 12 VDC); 600 Ω (at power supply voltage of 24 VDC)
Min. load impedance: 50 Ω
Auto-shift input
Non-voltage input (reed or solid state), Low level 0.4 V or less, input times 5 ms or more
Display method
3 1/2digits 7-segment display, Dual-color display (red/green)
Indicator accuracy
±2%F.S. ±1 digit (at ambient temperature 25±3 °C)
Indication light
Light when ON OUT1, OUT2: Orange
Environment Enclosure
IP65
Ambient temperature range
Operation: 0 to 50 °C, Storage: -10 to 60 °C (no condensation or freezing)
Ambient humidity range
Operation, Storage: 35 to 85%RH (no condensation)
Withstand voltage
1000 VAC, 1 minute between lead block and case
Insulation resistance
50 MΩ or more at 500 VDC between lead block and case
Temperature characteristics
±2%F.S. (25 °C reference)
Lead wire
Oil resistant vinyl cabtyre cable
5 cores: φ3.5, 2 m; Sectional area of conductor: 0.15 mm2 (AWG26); Outside diameter of insulator: 1.0 mm
Standard
CE, UL/CSA, RoHS
*1: If the applied voltage fluctuates around the set value, the hysteresis more than the fluctuating width needs to be set. Otherwise, chattering will occur.
*2: If analog voltage output is selected, the analog current output cannot be selected at the same time.
*3: If analog current output is selected, the analog voltage output cannot be selected at the same time.

Piping Specifications:
Model No.
01
N01
W1
WF1
M5
C4
C6
Port size
R1/8 (with M5 female thread)
NPT1/8 (with M5 female thread)
Rc1/8
G1/8
M5x0.8 (Female)
One-touch fitting φ4
One-touch fitting φ6
Wetted part material Pressure sensing part
Silicone
Piping port
C3602 (Electro less nickel plating) O-ring: HNBR
ZDC2 O-ring: HNBR
ZDC2, POM, SUS304, C304 (Electro less nickel plating) O-ring: HNBR
Weight
78 g
79 g
97 g
97 g
104 g
101 g
101 g

Specifications (products with M8 (3 pin) connector)
Model No.
ZSE40A (vacuum)
ISE40A (positive pressure)
Rated pressure range
0 to -101.3 kPa
-0.100 to 1.000 MPa
Set pressure range
10.0 to -105.0 kPa
-0.105 to 1.050 MPa
Withstand pressure
500 kPa
1.5 MPa
Minimum display unit
0.1 kPa
0.001 MPa
Applicable fluid
Air, inert gases and incombustible gases
Power supply voltage
12 to 24 VDC ±10%, ripple (p-p) 10% or less (protected against reverse connection)
Current consumption
45 mA or less
Switch output
NPN or PNP open collector 1 output
Max. load current
80 mA
Max. applied voltage
28 V (NPN output)
Residual voltage
1 V or less (at 80 mA load current)
Response time
2.5 ms or less (with anti-chatter function: 20, 100, 500, 1000 or 2000 ms)
Short circuit protection
Provided
Repeatability
±0.2%F.S. ±1 digit
Hysteresis Hysteresis mode
0 to variable *1
Window comparator mode
Display
3 1/2digits, 7-segment, dual-colour display (red/green)
Display accuracy
±2% F.S. ±1 digit (at ambient temperature 25±3 °C)
Indicator LED
LED is ON when output is ON
OUT: Orange
Environment Enclosure
IP65
Operating temperature range
Operation: -5 to 50 °C
Storage: -10 to 60 °C (no condensation or freezing)
Operating humidity range
Operation, Storage: 35 to 85% RH (no condensation)
Withstand voltage
1000 VAC, 1 minute between terminals and housing
Insulation resistance
50 MΩ or more at 500 VDC between terminals and housing
UL Temperature rating
Surrounding air temperature rating: Maximum 50 °C
Temperature characteristics
±2% F.S. (25 °C reference)
Standard
CE, UL/CSA, RoHS
*1: If the applied voltage fluctuates around the set value, the hysteresis must be set to more than the fluctuation width. Otherwise, chattering will occur.

Piping Specifications:
Model No.
01
N01
Port size
R1/8 (with M5 female thread)
NPT1/8 (with M5 female thread)
Material of wetted parts Pressure sensing part
Silicone
Piping port
C3602 (electroless nickel plating)
O-ring: HNBR
Weight
45 g
46 g
