Hanna pH/ORP Waterproof Portable Meter - HI98183-01
Item #:
HI98183-01
Brand:
Hanna Instruments
Share this product:

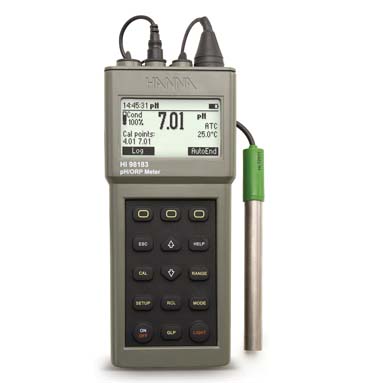

HI98183-01 pH/ORP Waterproof Portable Meter by Hanna Instruments
HI 98183 is a waterproof, portable meter designed for demanding applications. HI 98183 measures pH/ORP and temperatuare.
Choose from 7 standard pH buffers and 5 custom pH buffers to obtain up to five point calibration and achieve high precision readings with a pH accuracy of ±0.002 and up to ±0.001 pH resolution.
HANNA's Calibration Check® maintains a history of past calibrations and monitors the pH electrode and buffers during subsequent calibrations for any signs of wide calibration variances due to a dirty or broken electrode or contaminated pH buffers. In measurement mode, the electrode's percent condition is continuously displayed.
Exchange out the pH probe for an ORP probe to obtain mV readings in the ±2000 mV range.
Press Auto-Hold while measuring and once stabilized, the current reading will remain displayed for your convenience in documenting. Switching to log-on-demand mode allows users to record and save up to 200 samples. This data can later be transferred to a PC with the USB connection and HANNA's HI 92000 software. “Out Of Calibration Range Warning” can be engaged to keep the user informed of the current calibration and helps to avoid taking measurements that are out of range.
A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages. Comprehensive GLP data are directly accessible by pressing the GLP key. Access the contextual Help Menu to obtain on-screen information and assistance about each feature at the touch of a button. Designed for field use, these instruments can be operated with one hand and are supplied in a rugged carrying case. With an extended battery life of up to 200 hours, users are assured long operation. The inductive charger can either be plugged into a standard 115V socket with the included adapter or a 12 VDC source, such as a car's 12 V accessory outlet.
These meters come equipped with the HI 72911B pH/ temperature electrode with rugged, titanium casing.
- pH Calibration Check™
- Electrode condition on display
- Five point pH calibration with seven standard buffers and five custom buffers
- Automatic logging and log on demand
- Menu driven for ease of use
- Soft-key extended functionality
- Multiple language selection
- Contextual help at the touch of a button
- GLP features
- USB
- Backlit, graphic LCD and battery life on display
- Waterproof and rugged casing
Order Information:
HI 98183-01 (115V) and HI 98183-02 (230V) is supplied with HI 72911B pH electrode, HI 70004 pH 4.01 buffer solution sachet, HI 70007 pH 7.01 buffer solution sachet, rechargeable batteries, HI 710042 inductive battery charger with power adapter, instructions and hard carrying case.
pH Range | -2.0 to 20.0; -2.00 to 20.00; -2.000 to 20.000 pH |
ORP Range | ±2000 mV |
Temperature Range | -20.0 to 120.0 °C (-4.0 to 248.0°F) |
pH Resolution | 0.1; 0.01; 0.001 pH |
ORP Resolution | 0.1 mV |
Temperature Resolution | 0.1°C (0.1°F) |
pH Accuracy @ 20°C | ±0.01; ±0.002 pH |
ORP Accuracy @ 20°C | ±0.01; ±0.002 pH |
Temperature Accuracy @ 20°C | ±0.4°C (±0.8°F) (excluding probe error) |
pH Calibration | up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers |
Slope Calibration | From 80 to 110% |
pH Temp. Compensation | manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F) |
Probe | HI 72911B Titanium body, pH electrode with internal temperature sensor, BNC connector and 1 m (3.3’ cable) |
Logging | log on demand 200 samples (100 ea. range) |
PC Connectivity | opto-isolated USB with optional HI 92000 software |
Input Impedance | 1012 Ohms |
Battery Type / Life | 1.2V AA rechargeable batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
Auto-off | user selectable: 5, 10, 30, 60 min or can be disabled |
Environment | 0 to 50°C (32 to 122°F); RH 100% |
Dimensions | 226.5 x 95 x 52 mm (8.9 x 3.75 x 2”) |
Weight | 525 g (18.5 oz.) |
