Hanna Portable Analog pH Meter with Pre-amplified pH Electrode - HI8314
Item #:
HI8314
Brand:
Hanna Instruments
Share this product:

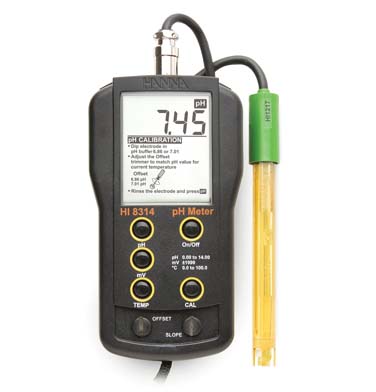

HI8314 Portable Analog pH Meter with Pre-amplified pH Electrode by Hanna Instruments
HI 8314 is a handheld pH/mV/°C meter designed to be reliable and easy-to-use.
HI 8314 uses the HI 1217D pre-amplified pH electrode and internal temperature sensor.
Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.
- Pre-amplified pH electrode
- Easy manual one or two point calibration
- Automatic Temperature Compensation
- Low battery indicator
Order Information:
HI 8314 is supplied with HI 1217D pH electrode, HI 70004 pH 4.01 buffer solution sachet, HI 70007 pH 7.01 buffer solution sachet, HI 700661 electrode cleaning solution sachets (2), calibration screwdriver, battery, protective case and instructions.
pH Range | 0.00 to 14.00 pH |
ORP Range | ±1999 mV |
Temperature Range | 0.0 to 100.0°C |
pH Resolution | 0.01 pH |
ORP Resolution | 1 mV |
Temperature Resolution | 0.1°C |
pH Accuracy | ±0.01 pH |
ORP Accuracy | ±1 mV |
Temperature Accuracy | ±0.4°C (excluding probe error) |
pH Calibration | manual, two point, through trimmers (offset ±1 pH; slope: 80 to 110%) |
Temperature Compensation | Automatic, 0 to 70°C (32 to 158°F) |
Input Impedance | 1012 Ohm |
Battery Type / Life | 9V / approximately 100 hours of continuous use |
Environment | 0 to 50°C (32 to 122°F); RH max 100% |
Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) |
Weight | 230 g (8.1 oz.) |
