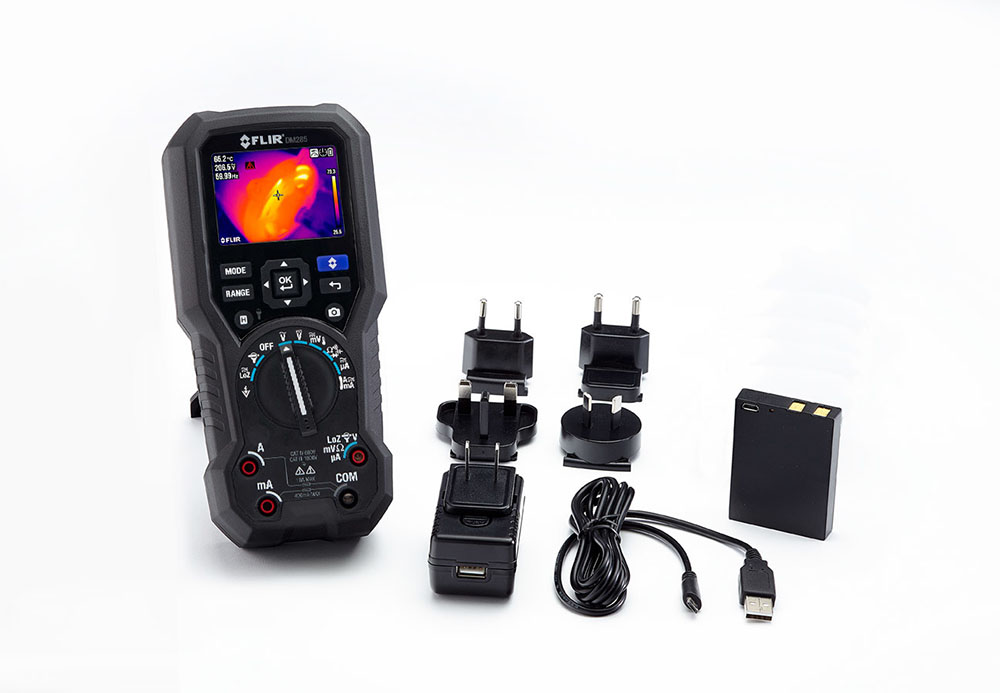

FLIR Professional Imaging Multimeter Kit includes: DM285 + TA04-KIT
Item #:
FL-DM285-KIT
Brand:
FLIR
Share this product:
DM285-KIT Professional Imaging Multimeter Kit includes: DM285 + TA04-KIT by FLIR
The FLIR DM284 and DM285 are industrial, all-in-one True RMS digital multimeters and thermal imagers that can show you exactly where a hot spot or temperature anomaly is for faster troubleshooting. Featuring Infrared Guided Measurement (IGM™) powered by a built-in 160 × 120 FLIR thermal imager, the meters visually guide you to the precise location of a problem. You'll pinpoint issues faster, more safely, and efficiently. Both multimeters are ideal for inspecting industrial-electrical, mechanical, HVAC/R, and electronic systems, and can be used for both benchtop electronics or in the field.
The DM285 uniquely features Bluetooth® which enables wireless data transfer by connecting to the FLIR Tools Mobile app on compatible mobile devices. The DM285 is also compatible with the new FLIR InSite™ workflow management tool that allows you to prepare efficient survey routes, maintain accurate documentation, share information with clients, and file instant reports.
WORK SAFER AND SMARTER
- Identify energized and faulty equipment from a safe distance with non-contact temperature measurement
- Streamline inspections and simplify data collection, sharing, and reporting by wirelessly connecting to the FLIR InSite professional workflow management tool
- Save electrical parameter data and thermal images with onboard data storage
TROUBLESHOOT CHALLENGING PROBLEMS EFFECTIVELY
- Solve challenging problems with the 18-function DMM including VFD mode, True RMS, LoZ, NCV, a built-in worklight, and laser pointer
- Measure voltage, current, frequency, resistance, continuity, diode, capacitance, and temperature
- Operate easily with an intuitive menu system
DESIGN AND FUNCTIONALITY
- Rely on the meters' drop-tested durability in any working condition
- Change the battery quickly and easily with the 'no tool' battery compartment
- See readings clearly on the TFT display with a wide viewing angle
| Thermal Imaging | DM284 | DM285 |
| IR Resolution | 160 x 120 (19,200 pixels) | 160 x 120 (19,200 pixels) |
| Thermal Imaging Detector | FLIR Lepton® microbolometer | FLIR Lepton® microbolometer |
| Temperaturea Sensitivity | ≤ 150 mK | ≤ 150 mK |
| Emissivity Settings | 4 presets with custom adjustment | 4 presets with custom adjustment |
| Temperature Accuracy | 3°C or 3.5% | 3°C or 3.5% |
| Temperature Range | 14°F to 302°F (-10°C to 150°C) | 14°F to 302°F (-10°C to 150°C) |
| Field of View | 46° x 35° | 50° x 38° |
| Laser Pointer | Yes | Yes |
| Focus | Fixed | Fixed |
| Thermal Imaging Palette | Iron, Rainbow, Grayscale | Iron, Rainbow, Grayscale |
| Level & Span | Auto | Auto |
| Measurements-Both Models | ||
| True RMS | Yes | |
| Range | Basic Accuracy | |
| AC / DC Volts | 1000 V | ±1.0% / 0.09% |
| AC / DC mVolt | 600.0 mV | ±1.0% / 0.5% |
| VFD AC Volts | 1000 V | ±1.0% |
| AC / DC LoZ V | 1000 V | ±2.0% |
| AC / DC Amps | 10.00 A | ±1.5% / 1.0% |
| AC / DC mAmps | 400.0 mA | ±1.5% / 1.0% |
| AC / DC μAmps | 4,000 μA | ±1.0% |
| Resistance | 6.000 MΩ 50.00 MΩ |
±0.9% ±3.0% |
| Capacitance | 10.00 mF | ±1.9% |
| Diode Test | 1.500 V | ±0.9% |
| Flex Clamp Range | 3000 A AC (Optional TA72/74) | ±3.0% + 5 digits |
| Frequency Counter | 100.00 kHz | ±0.1% |
| Temperature, Type-K Thermocouple | -40°F to 752.0°F (-40°C to 400°C) | ±1.0% + 5.4°F (±1.0% + 3°C) |
| Additional Measurements | ||
| Continuity Check | 600 Ω | 20 Ω and 200 Ω |
| Measuring Rate | 3 samples per second | 3 samples per second |
| Min/Max/Avg | Yes | Yes |
| General Information | ||
| Connectivity | – | Bluetooth® |
| Data Logging & Storage | – | 10 sets of 40K scalar measurements, 100 images |
| Auto Power Off | Yes | Yes |
| Worklights | Yes | Yes |
| Display Size | 2.8 in TFT screen | 2.8 in TFT screen |
| Battery | 4 AAA batteries; optional TA04 Li-Poly rechargeable battery | 3 AA batteries; optional TA04 Li-Poly rechargeable battery |
| Drop Test | 3 m | 3 m |
| IP Rating | IP54 | IP40 |
| Safety Category Rating | CAT III-1000V, CAT IV-600V | CAT III-1000V, CAT IV-600V |
| Size (L x W x H) | 200 x 95 x 49 mm (7.9 × 3.7 × 1.9 in) | 200 x 95 x 49 mm (7.9 × 3.7 × 1.9 in) |
| Weight | 537 g (18.9 oz) | 537 g (18.9 oz) |
| Warranty | 10 year on product and detector | 10 year on product and detector |
| Box Contents | ||
| Multimeter, L91 lithium batteries, silicone test leads, test lead storage/tripod accessory, Type-K thermocouple, alligator probes, soft carrying case | ||
