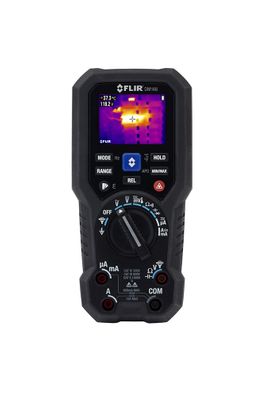

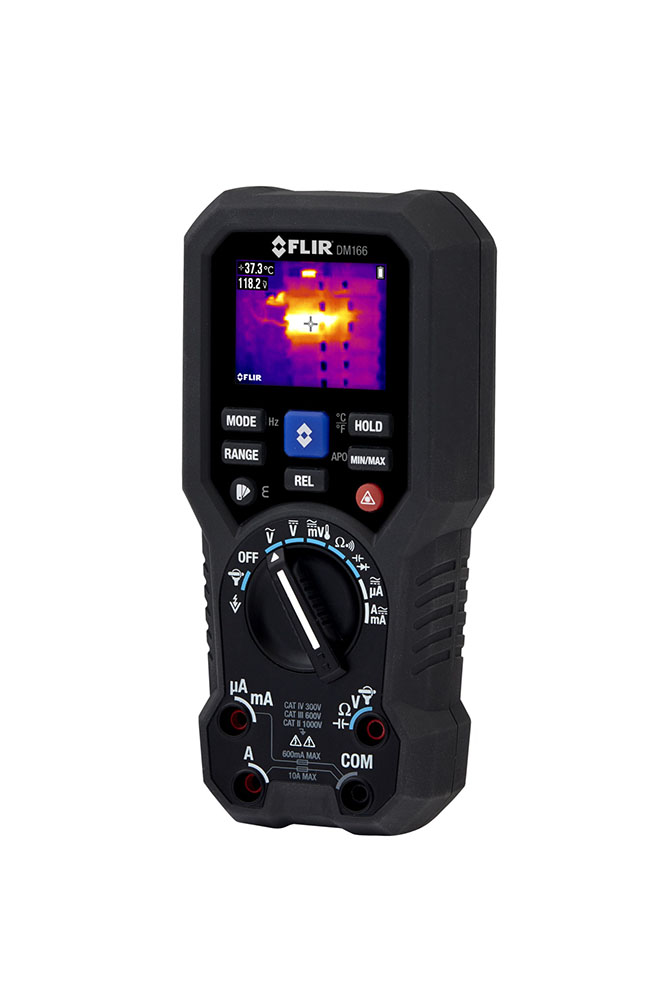

FLIR DM166 Thermal Imaging TRMS Multimeter with IGM™

Item #:

FL-DM166

Brand:

FLIR

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

DM166 Thermal Imaging TRMS Multimeter with IGM™ by FLIR

The FLIR DM166 is the most affordable multimeter with built-in thermal imaging – a must-have tool for commercial electricians, automation, electronics, and HVAC technicians. Featuring Infrared Guided Measurement (IGM™) powered by an 80 x 60 FLIR thermal imager, the DM166 visually guides you to the precise location of temperature anomalies and potential problems faster, more safely, and efficiently. The feature-packed multimeter is an ideal tool for troubleshooting and diagnosing complex issues in both high-voltage and low-voltage applications.

TROUBLESHOOT FASTER

Quickly scan for overheating components with IGM
Diagnose faults with broad DMM test functions
Troubleshoot easier with the unique combination of onboard thermal imaging and traditional DMM test functions

WORK SAFER

Safely check for live connections using non-contact temperature measurement
Carefully measure voltage with integrated non-contact voltage detection
Work with peace of mind knowing your meter has a CAT III-600V, CAT IV-300V safety rating

DIAGNOSE PROBLEMS MORE EFFICIENTLY

Reliably take 600 V AC/DC voltage measurements and 10 A AC/DC current measurements
Remove high-frequency noise that affects readings with the Variable Frequency Drive (VFD) measurement function
Precisely measure resistance up to 60 MΩ, frequency up to 50 KHz, and capacitance up to 10,000 µF

Specifications

Thermal Imaging
IR Resolution	80 x 60 pixels (4,800 pixels)
Thermal Imaging Detector	FLIR Lepton® microbolometer
Temperature Sensitivity	≤ 150 mK
Emissivity Settings	4 presets with custom adjustment
Temperature Accuracy	3°C or 3%
Temperature Range	14° F to 302°F (-10C to 150° C)
Field of View	50° x 38°
Laser Pointer	Yes
Focus	Fixed
Thermal Imaging Palette	Iron, Rainbow, Grayscale
Level & Span	Auto
Measurements
True RMS	Yes
	Range	Basic Accuracy
AC / DC Volts	600.0 V	±0.7% / 0.5%
AC / DC mVolt	600.0 mV	±1% / 0.3%
VFD AC Volts	600.0 V	±1.0%
AC / DC Amps	10.00 A	±1.0% / 0.7%
AC / DC mAmps	600.0 mA	±1.0% / 0.7%
AC / DC μAmps	6000 µA	±1.5% / 1.0%
Resistance	6.000 MΩ 60.00 MΩ	±0.9% ±1.5%
Capacitance	2.000 mF 10.00 mF	±2.0% ±5.0%
Diode Test	3.000 V	±0.9%
Frequency Counter	50.00 kHz	±0.3%
Temperature, Type-K Thermocouple	-40°F to 752.0°F (-40°C to 400°C)	±1.0% + 3°F (±1.0% + 1.5°C)
Additional Measurements
Continuity Check	30 Ω and 480 Ω
Measuring rate	5 samples per second
General Information
Auto Power Of	Yes
Display Size	2.4 in TFT screen
Battery	3 AA batteries; optional TA04 Li-Poly rechargeable battery
Drop Test	3 m
IP Rating	IP40
Safety Category Rating	CAT III-600V, CAT IV-300V
Size (L x W x H)	190 × 86.4 × 48.3 mm (7.5 × 3.4 × 1.9 in)
Weight	428.3 g (15.1 oz)
Warranty	10 year on product and detector
Box Contents
	DM166, L91 lithium batteries, silicone test leads, soft carrying case
