FLIR E5 IR Camera with MSX and WiFi 120 x 90 Resolution / 9Hz - 63909-0904
Item #:
FL-63909-0904
Brand:
FLIR
Share this product:

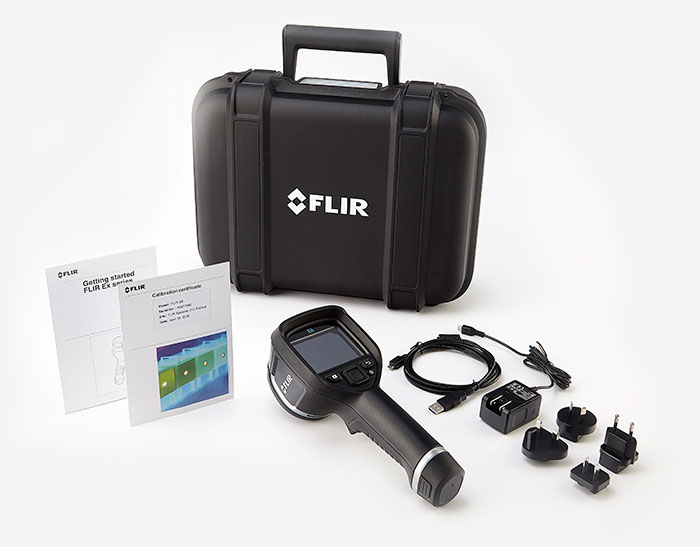

63909-0904 E5 IR Camera with MSX and WiFi 120 x 90 Resolution/9Hz by FLIR
FLIR E4, E5, E6, and E8 infrared cameras are powerful and extremely cost-effective, easy-to-use troubleshooting tools for building, electrical, and mechanical applications. Four resolution options are available (ranging from 80 x 60 IR pixels to 320 x 240) to fit the target size, working distance, and detail you require. All include MSX® technology that provides extraordinary thermal imaging detail. Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app makes sharing images and sending reports from any location easier, enabling you to make critical decisions faster. By providing thermal images to help you find hidden problems along with accurate temperature measurements, an Ex-Series camera is the ideal budget-friendly replacement for old-school IR thermometers.
Easy to use
- Fully automatic and focus-free
- Simple button navigation to on-screen settings, imaging modes, and measurement tools
- MSX adds digital camera detail to IR images for better perspective and interpretation
Conveniently share images and findings
- Wi-Fi connectivity to mobile devices via FLIR Tools Mobile app
- Rapid Wi-Fi or USB image transfer for documentation
- Analyze and edit images, and create convincing reports with FLIR Tools
Compact and rugged
- Lightweight (1.2 lb / 0.575kg) and withstands 2-meter drop test
- Accessory belt pouch included for convenience on-the-go
- 2-year warranty coverage on camera, 5 years on batteries, 10 years on detector
Features by Camera | E4 |
E5 |
E6 |
E8 |
IR resolution | 80 x 60 pixels |
120 x 90 pixels |
160 x 120 pixels |
320 x 240 pixels |
Thermal sensitivity/NETD | <0.15°C (0.27°F) / <150 mK |
<0.10°C (0.27°F) / <100 mK |
<0.06°C (0.11°F) / <60 mK |
|
Common Features | ||||
Field of view (FOV) | 45° x 34° |
|||
Minimum focus distance | 0.5 m (1.6 ft.) |
|||
Image frequency | 9 Hz |
|||
Focus | Focus free |
|||
Wi-Fi | Peer-to-peer or network |
|||
Detector type | Uncooled microbolometer |
|||
Image Presentation and Modes | ||||
Display | 3.0 in. 320 x 240 color LCD |
|||
Image modes | Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera |
|||
Multi Spectral Dynamic Imaging (MSX) | IR image enhanced with visible camera detail |
|||
Picture in Picture | IR area on visual image |
|||
Color palettes | Black & white, iron, and rainbow |
|||
Digital camera resolution/FOV | 640 x 480/55° x 43° |
|||
Measurement Features | ||||
Object temperature range | -20°C to +250°C (-4°F to +482°F) |
|||
Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F) |
|||
Spotmeter; area | Center spot; box with min./max. |
|||
Emissivity table/correction | Emissivity table of predefi ned materials/variable from 0.1 to 1.0 |
|||
Additional Data | ||||
File formats | Standard JPEG, 14-bit measurement data included |
|||
Interfaces | USB Micro: Data transfer to and from PC and Mac device |
|||
Battery type & operating time | Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use |
|||
Encapsulation/drop | IP 54 (IEC 60529)/2m (6.6 ft.) |
|||
Camera weight, incl. battery | 0.575 kg (1.27 lb.) |
