FLIR E4 IR Camera with MSX and WiFi 80 x 60 Resolution / 9Hz - 63906-0604

Item #:
FL-63906-0604
Brand:
FLIR
$999.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR E4 IR Camera with MSX and WiFi 80 x 60 Resolution / 9Hz - 63906-0604

FLIR E4 IR Camera with MSX and WiFi 80 x 60 Resolution / 9Hz - 63906-0604

$999.99

Discontinued

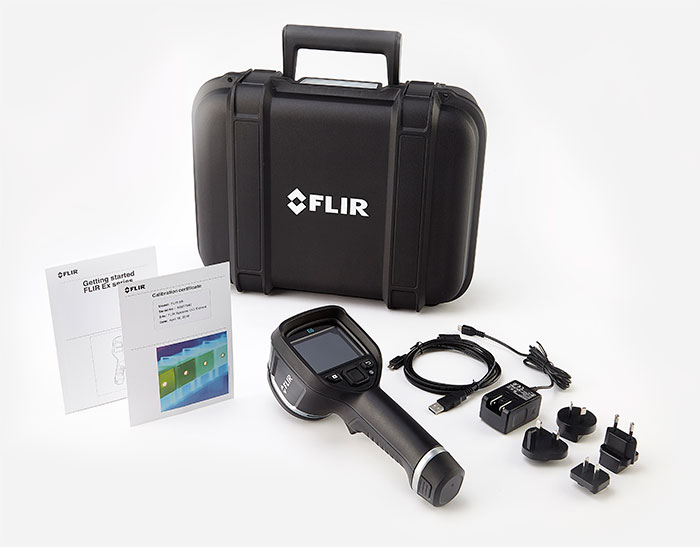

63906-0604 E4 IR Camera with MSX and WiFi 80 x 60 Resolution/9Hz by FLIR

FLIR E4, E5, E6, and E8 infrared cameras are powerful and extremely cost-effective, easy-to-use troubleshooting tools for building, electrical, and mechanical applications. Four resolution options are available (ranging from 80 x 60 IR pixels to 320 x 240) to fit the target size, working distance, and detail you require. All include MSX® technology that provides extraordinary thermal imaging detail. Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app makes sharing images and sending reports from any location easier, enabling you to make critical decisions faster. By providing thermal images to help you find hidden problems along with accurate temperature measurements, an Ex-Series camera is the ideal budget-friendly replacement for old-school IR thermometers.

Easy to use

  • Fully automatic and focus-free
  • Simple button navigation to on-screen settings, imaging modes, and measurement tools
  • MSX adds digital camera detail to IR images for better perspective and interpretation

Conveniently share images and findings

  • Wi-Fi connectivity to mobile devices via FLIR Tools Mobile app
  • Rapid Wi-Fi or USB image transfer for documentation
  • Analyze and edit images, and create convincing reports with FLIR Tools

Compact and rugged

  • Lightweight (1.2 lb / 0.575kg) and withstands 2-meter drop test
  • Accessory belt pouch included for convenience on-the-go
  • 2-year warranty coverage on camera, 5 years on batteries, 10 years on detector
Features by Camera
E4
E5
E6
E8
IR resolution
80 x 60 pixels
120 x 90 pixels
160 x 120 pixels
320 x 240 pixels
Thermal sensitivity/NETD
<0.15°C (0.27°F) / <150 mK
<0.10°C (0.27°F) / <100 mK
<0.06°C (0.11°F) / <60 mK
Common Features
Field of view (FOV)
45° x 34°
Minimum focus distance
0.5 m (1.6 ft.)
Image frequency
9 Hz
Focus
Focus free
Wi-Fi
Peer-to-peer or network
Detector type
Uncooled microbolometer
Image Presentation and Modes
Display
3.0 in. 320 x 240 color LCD
Image modes
Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
Multi Spectral Dynamic Imaging (MSX)
IR image enhanced with visible camera detail
Picture in Picture
IR area on visual image
Color palettes
Black & white, iron, and rainbow
Digital camera resolution/FOV
640 x 480/55° x 43°
Measurement Features
Object temperature range
-20°C to +250°C (-4°F to +482°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)
Spotmeter; area
Center spot; box with min./max.
Emissivity table/correction
Emissivity table of predefi ned materials/variable from 0.1 to 1.0
Additional Data
File formats
Standard JPEG, 14-bit measurement data included
Interfaces
USB Micro: Data transfer to and from PC and Mac device
Battery type & operating time
Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
Encapsulation/drop
IP 54 (IEC 60529)/2m (6.6 ft.)
Camera weight, incl. battery
0.575 kg (1.27 lb.)
