FLIR E8xt IR Camera with MSX and WiFi 320 x 240 Resolution/9Hz - 63908-0905

FLIR E8xt IR Camera with MSX and WiFi 320 x 240 Resolution/9Hz - 63908-0905

$2,999.99

Discontinued


63908-0905 E8xt IR Camera with MSX and WiFi 320 x 240 Resolution/9Hz by FLIR

FLIR E4, E5, E6, and E8 infrared cameras are powerful and extremely cost-effective, easy-to-use troubleshooting tools for building, electrical, and mechanical applications. Four resolution options are available (ranging from 80 x 60 IR pixels to 320 x 240) to fit the target size, working distance, and detail you require. All include MSX® technology that provides extraordinary thermal imaging detail. Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app makes sharing images and sending reports from any location easier, enabling you to make critical decisions faster. By providing thermal images to help you find hidden problems along with accurate temperature measurements, an Ex-Series camera is the ideal budget-friendly replacement for old-school IR thermometers.

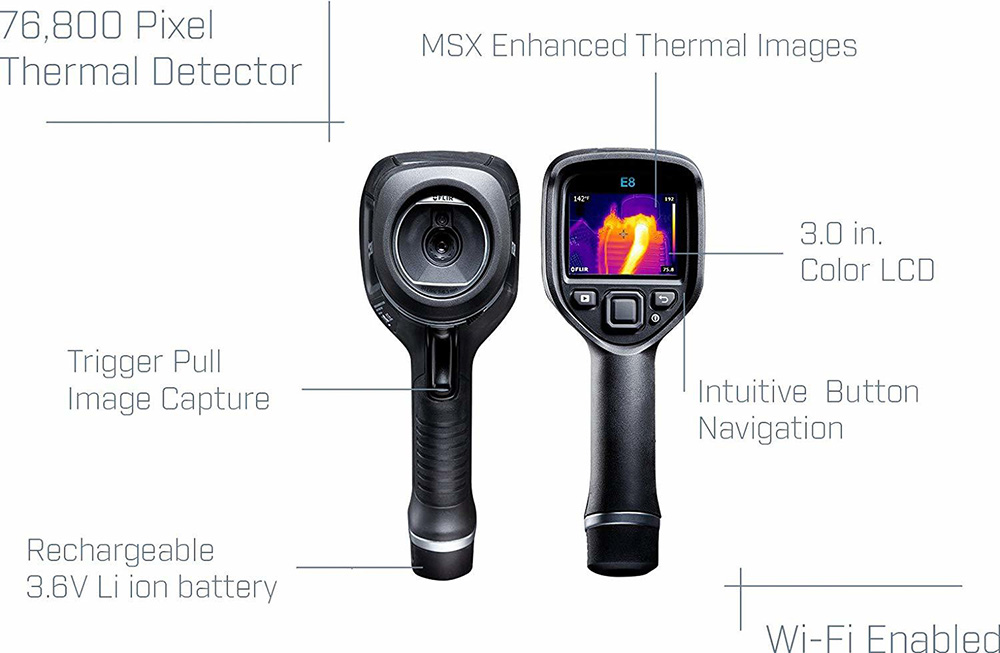

Easy to use

  • Fully automatic and focus-free
  • Simple button navigation to on-screen settings, imaging modes, and measurement tools
  • MSX adds digital camera detail to IR images for better perspective and interpretation

Conveniently share images and findings

  • Wi-Fi connectivity to mobile devices via FLIR Tools Mobile app
  • Rapid Wi-Fi or USB image transfer for documentation
  • Analyze and edit images, and create convincing reports with FLIR Tools

Compact and rugged

  • Lightweight (1.2 lb / .0575kg) and withstands 2-meter drop test
  • Accessory belt pouch included for convenience on-the-go
  • 2-year warranty coverage on camera, 5 years on batteries, 10 years on detector
Features by Camera E4 E5 E6 E8
IR resolution 80 × 60 pixels 120 × 90 pixels 160 × 120 pixels 320 × 240 pixels
Thermal sensitivity/NETD <0.15°C (0.27°F) / <150 mK <0.10°C (0.27°F) / <100 mK <0.06°C (0.11°F) / <60 mK
Image adjustment Automatic adjust/lock image Automatic/Manual
Common Features
Field of view (FOV) 45° × 34°
Minimum focus distance 0.5 m (1.6 ft.)
Image frequency 9 Hz
Focus Focus free
Wi-Fi Peer-to-peer or network
Detector type Uncooled microbolometer
Image Presentation and Modes
Display 3.0 in. 320 × 240 color LCD
Image modes Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
Multi Spectral Dynamic Imaging (MSX) IR image enhanced with visible camera detail
Picture in Picture IR area on visual image
Color palettes Black & white, iron, and rainbow
Digital camera resolution/FOV 640 × 480/55° × 43°
Measurement Features
Object temperature range -20°C to +250°C (-4°F to +482°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature above +0°C (+32°F)
Spotmeter; area Center spot; box with min./max.
Emissivity table/correction Emissivity table of predefined materials/variable from 0.1 to 1.0
Additional Data
File formats Standard JPEG, 14-bit measurement data included
Interfaces USB Micro: Data transfer to and from PC and Mac device
Battery type & operating time Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
Encapsulation/drop IP 54 (IEC 60529)/2m (6.6 ft.)
Camera weight,incl. battery 0.575 kg (1.27 lb.)
