Meter Accessory Heads

ASX14 Superheat & Subcooling Accessory Head by Fieldpiece

Recent studies suggest that the majority of A/C systems in operation in the U.S. are under or overcharged. This causes decreased efficiency, and sometimes, premature compressor failure. The Fieldpiece Superheat and Subcooling Accessory for Air Conditioning, model ASX14, measures suction line, or low side, line temperature and pressure.

It then calculates actual superheat in real time using built in P/T charts. It also measures liquid line, or high side, line temperature and pressure, and calculates actual subcooling. Use it to get actual superheat on R-22 and R-410A fixed orifice systems and actual subcooling on TXV / TEV regulated systems. Use the "T" fitting to charge to actual superheat or subcooling by putting the ASX14 in-line between your refrigerant bottle and the system.

Designed for HVACR professionals, the ASX14, measures refrigerant pressure and temperature, and calculates superheat for two refrigerants in English or metric units.

• Display pressure in PSI or kPa
• Display temperature in °F or °C
• Display superheat in °F or °C
• Select R22 or R410A
• Auto-off can be disabled for data logging
• Includes "T"
• Accepts K-type thermocouples
• ATC1 pipe clamp T/C included
• LED indicates when readings are stable
• Thermocouple calibration pot
• Push-button atmosphere pressure calibration

Includes

• Superheat and Subcooling Accessory for Air Conditioning - ASX14
• Pipe-Clamp Thermocouple 3/8" to 1 3/8" for Air Conditioning - ATC1
• Mini-calibration Screwdriver
• 9V Battery (installed)
• Operator's Manual

AVG2 Digital Vacuum Micron Gauge Accessory Head by Fieldpiece

The Fieldpiece Digital Vacuum Gauge Accessory, model AVG2, is a thermistor based digital multimeter accessory that digitally measures a vacuum of 50 to 2000 microns and converts that reading into millivolts DC on your compatible DMM or our electronic handle and data logger. LEDs provide a pump down indicator showing progress from atmospheric pressure. The sensor has been designed to withstand pressures up to 500 psi (3400kPa) so that no damage to the AVG2 will occur if it is exposed to full system pressures.

Designed for HVAC/R, the Digital Vacuum Gauge Accessory, model AVG2, gives technicians an accurate results in a compact design. Other features and benefits include:

• Displays pressure in microns in steps of 1 micron
• Range: 50 to 2000 microns of mercury (50 - 4000 if meter has millivolt range)
• Resolution: 1 micron of mercury
• Pump down indication: when pumping down from atmospheric pressure to 2000 microns, output of head goes from over 3VDC to 2VDC
• Straight-in access to sensor for easy cleaning
• Fitting: 1/4" flared brass fitting (male)
• Accuracy (@~75°F): ±10%, 0-1000 microns of mercury
• Auto-off can be disabled for data logging
• "T" for inline vacuum testing

Includes

• Digital Vacuum Gauge Accessory - AVG2
• 9V Battery (installed)
• Operator's Manual

AAT3 Hot-wire Anemometer & Psychrometer Accessory Head by Fieldpiece

The In-Duct Hot-Wire Anemometer & Psychrometer accessory head, AAT3 allows HVACR professionals to measure air velocity, temperature, and %RH all in one tool. The engineered 38" telescoping probe with laser etching and quick-response sensor provides quick and easy airflow measurements from the correct location--near the evaporator. When using with the Fieldpiece HVAC Guide System Analyzers, the AAT3 can automatically calculate target super heat and target evaporator exit temperature. Connected to a wireless transmitter, the AAT3 can send measures wireless to any Fieldpiece Wireless Meter (HG3, LT17AW, EH4W) up to 100' away.

Designed specifically for HVACR professionals, the AAT3 In-Duct Psychrometer is a great tool to properly install and service fixed restrictor systems. More than 70% of A/C units are running inefficiently, but with the AAT3 it's easier to ensure units are running at their maximum efficiency. HVACR pros can trust the results for tests like temperature splits, target evaporator exit temperature, target superheat, and CheckMe!® because measurements are taken near the evaporator without the interference of outside air temp or leaks in the duct work.

Functions

• Measures temperatures, %RH, and air velocity
• Calculates wet bulb and dew point
• Automatically calculates Target Superheat, Target Evap Exit Temperature, and Total CFM (when using the Fieldpiece HVAC Guide System Analyzers)

Features and Benefits

• Measures temperature and %RH
• Calculates wet bulb and dew point
• Slim 38" telescoping probe
• Fast response time
• Depth and direction indicators
• Hands-free testing with stabilizing cone and magnetic hanger
• Can send wireless measurements from up to 100' away

Includes

• In-Duct Hot-wire Anemometer/Psychrometer Accessory Head - AAT3
• Telescoping Precision Thermistor & Hot-Wire Probe
• Stabilizing Cone - RCONE

AAV3 Air Velocity and Temperature Accessory Head by Fieldpiece

The AAV3 is an anemometer accessory head for use with our modular instruments that measures air velocity and temperature in English or Metric units: Ft/min, M/s, MPH, KM/hr, °F (degrees Fahrenheit) or °C (degrees Celsius). Multiply your air velocity by the register's free area to estimate CFM or diagnose duct blockages and quickly check the airflow balance in a conditioned space. Use with our DL3 Data Logger to track airflow or temperature over time. Features average and real time testing modes.

The AAV3 Anemometer Air Velocity and Temperature Accessory offers several features and benefits to field technicians:

• Works with any Fieldpiece expandable instrument or handle or any DMM with mVDC ranges and our detachable leads.
• Measures air velocity and measures air temperature.
• Measure in hard to reach areas using detachable test leads.
• Display readings smoothly in average mode or switch to real-time measurement.
• Low battery indicator.
• Auto-power off after 10 minutes (may be disabled).
• Estimate CFM
• Large vane covers most of register's free area

Includes

• Air Velocity and Temperature Accessory - AAV3
• 9V Alkaline Battery (installed)
• Operator's Manual

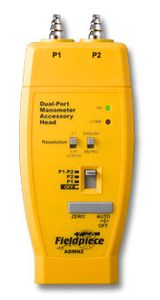

ADMN2 Dual Port Manometer Accessory Head by Fieldpiece

The ADMN2 is a portable dual port manometer accessory head for use with our modular multimeters (DMMs) and instruments. Measures gas pressure, static pressure and pressure differential. The ADMN2 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. Disable APO for data logging. The ADMN2 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The ADMN2 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.

The modular design of the ADMN2 gives it a distinct advantage over other dual-port manometers in the field. Remoting the ADMN2 with our detachable test leads allows you to measure pressure in hard to reach places. The included 3/16" to 5/16" adapters allow you to measure gas pressure on more makes and models of gas appliances as well.

• Measures duct pressures to balance air flow
• Resolution down to 0.01" WC for static pressure measurement
• -60.0"WC to 60.0"WC range

Includes

• Dual-Port Manometer Accessory - ADMN2
• 2 – 3/16" Tubes with Brass Fittings
• 2 – 3/16" to 5/16" Tube Adapters - RMA316
• 9V Battery (installed)
• Operator's Manual

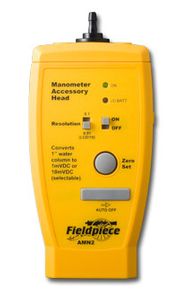

AMN2 Manometer Accessory Head by Fieldpiece

The AMN2 is a manometer accessory head for use with our modular multimeters (DMMs) and instruments. It measures gas pressure with enough resolution to measure static pressure. The AMN2 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. Disable APO for data logging. The AMN2 measures pressure between -60inWC and 60inWC (inches of water column). Take static pressure measurements using the resolution mode of 0.01inWC.

The AMN2 Manometer Accessory Head offers several features and benefits to field technicians:

• Works with any Fieldpiece expandable instrument or handle or any DMM with mVDC ranges.
• Measure gas pressure on 3/16" and 5/16" regulator ports.
• Enough resolution and sensitivity to measure static pressure.
• ZERO Set on face of instrument.
• Auto Power-Off (APO) for data logging pressure.
• Low battery LED indicator.

Includes

• Manometer Accessory - AMN2
• 1 – 3/16" Tubes with Brass Fitting
• 1 – 3/16" to 5/16" Tube Adapter - RMA316
• 9V Battery (installed)
• Operator's Manual

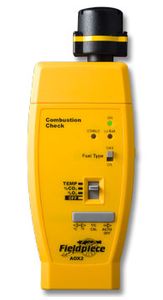

AOX2 Oxygen and Carbon Dioxide Accessory Head by Fieldpiece

The AOX2 Combustion Check Accessory measures percent oxygen (%O2) and flue temperature and calculates percent carbon dioxide (%CO2). The AOX2 is an affordable alternative to full-function combustion analyzers. It's designed for techs who want to do everyday combustion testing and tuning, without paying for all of the costly extras found on combustion analyzers - extras they don't need or care about.

The AOX2 allows you to easily calibrate combustion equipment such as boilers or furnaces to the manufacturer's specified % CO2, or % O2. Tuning the CO2, O2 stack temperature and temperature rise to match the appliance manufacturer's specifications will increase efficiency and help maximize performance and life expectancy of the equipment. Tuning typically involves adjusting the air/fuel ratio.

• Measures %O2 and flue gas temperature
• Calculates %CO2
• Natural gas, and oil #2
• Stable LED

Includes

• Combustion Check meter - AOX2
• Flue aspirator pump - AOXP2
• Hi-temp k-type thermocouple -58°F -1000°F range -ATBF1
• Filter Accessory kit -RAOX9
• 9V Alkaline battery (installed)
• Operator's manual

ARH4 Digital Psychrometer Accessory Head by Fieldpiece

The Fieldpiece ARH4 Digital Psychrometer Accessory Head measures both relative humidity and ambient air temperature. It calculates dew point and wet bulb. It's great for calculating target superheat as well as logging %RH, temp, WB or DP over time. The head converts %RH, ambient temperature, dew point temperature, and wet bulb temperature to a voltage at a rate of 1 %RH or degree to 1mVDC and your reading is displayed on your meter. The ARH4 snaps directly onto Fieldpiece stick meters, data logger, electronic handles and adapters.

The ARH4 employs an advanced pair of sensors, a thermistor and a hygrometer, that sense temperature and moisture in the air. With built-in psychometric charts, the ARH4 calculates dew point and wert bulb based on these direct measurements. For the most accurate readings, expose the ARH4 to the air you are measuring for a few minutes so that the sensors can come to equilibrium.

• Measures temperature and relative humidity percentage
• Calculates wet bulb and dew point temperatures
• Log relative humidity over time to help troubleshoot systems

Includes

• Digital Psychrometer and Hygrometer Accessory - ARH4
• 9V Battery (installed)
• Operator's Manual

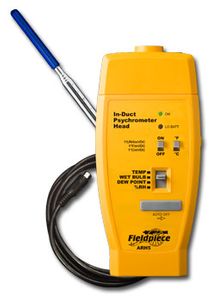

ARH5 Psychrometer Accessory Head by Fieldpiece

To assist HVACR professionals in getting the proper measurements, Fieldpiece engineered this in-duct psychrometer head to take measurements in the duct where they are supposed to be taken -- near the evaporator! So HVACR professionals can trust the results for tests like temperature splits, target evaporator exit temperature, target superheat, and CheckMe!® because measurements are taken without the interference of outside air temp or leaks in the duct work.

Plus, the ARH5 can make hustling from condenser, to attic, and back again to take indoor wet bulb and charge a system, a thing of the past! When attached to a wireless transmitter, ARH5 measurements can be sent wirelessly to any Fieldpiece wireless meter (HG3, LT17AW, EH4W), and SMAN4 Wireless Digital Manifold from anywhere on the job site. So results like indoor wet bulb, can be read in real-time on your wireless meter from up to 100' away.

Like all Fieldpiece products, the ARH5 accessory head was engineered specifically to put the right tools in the hands of HVACR professionals. For even more convenience and time savings, Fieldpiece designed the 38" telescoping probe with laser etching so techs know the sensor is in the correct location, and is facing in the proper direction. With the quick-response sensor it's a snap to complete target superheat, and take target evaporator exit temperature tests.

Designed specifically for HVACR professionals, the ARH5 InDuct Psychrometer is a great tool to properly charge fixed restrictor systems. More than 70% of A/C units are improperly charged, and therefore running inefficiently, but with the ARH5 it's easier to ensure units are running at their maximum efficiency.

• Measures temperature and %RH
• Calculates wet bulb and dew point
• Slim 38" telescoping probe
• Fast response time
• Depth and direction indicators
• Hands-free testing with stabilizing cone and magnetic hanger
• Can send wireless measurements from up to 100' away
• Target superheat and target evaporator exit temp with HG System Analyzers

Includes

• In-Duct Psychrometer Accessory Head - ARH5
• Telescoping Precision Thermistor Probe
• Stabilizing Cone - RCONE

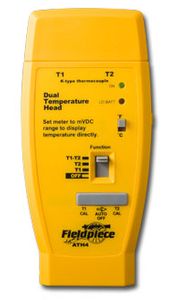

ATH4 Dual Temperature Accessory Head by Fieldpiece

The Fieldpiece Dual-Temperature Accessory, model ATH4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ATH4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service. Use the ATH4 to find Delta T and just about any temperature split you want to measure. Displays T1, T2 and T1-T2 on your Fieldpiece meter, handle or data logger. It is included with the HVAC Guide® System Analyzer to get target superheat and for the Target Evaporator Exit Temperature test. Fieldpiece offers a wide variety of k-type thermocouples for various HVAC specific applications. Use pipe clamp T/Cs with the ATH4 to check for blocked filters. Use wet and dry bulb thermocouples to find target superheat.

Designed for HVAC/R, the Dual-Temperature Accessory, model ATH4, measures two temperatures and calculatesthe difference in English or metric units.

• Field calibration for ±1°F accuracy
• Displays °F directly at 0.1°F resolution on DMM with 0.1mVDC resolution
• Select °F or °C
• Converts from -50°F to 1800°F (optional thermocouple required for 1800°F)
• Includes two "wrap tab" thermocouples plus velcro straps. Thermocouples insulated to 400°F
• Auto-off can be disabled for data logging
• Superior temperature compensation in rapidly changing environments
• External calibration pots make field calibration a breeze

Includes

• Dual-Temperature Accessory - ATH4
• (2) K-type Wrap Tab Bead Thermocouples - ATB1
• (2) Velcro Tie- wraps (not pictured)
• Mini-calibration Screwdriver
• 9V Battery (installed)
• Operator's Manual

ATIR3 Infrared Temperature Accessory Head by Fieldpiece

The Fieldpiece Non-contact Infrared Temperature Accessory with Laser Sight, model ATIR3, collects infrared energy (IR) and converts it to a mVDC signal that is proportional to the temperature being measured. The temperature measured is the average of all the temperatures in the 8:1 cone of viewability. The closer you are to the target, the smaller the area measured. The further away, the larger the area. The digital, non-contact ATIR3 converts the Fieldpiece "Stick" series meter, or electronic handle to a one-piece infrared, or IR, thermometer.

Designed for HVACR professionals, the Non-contact Infrared Temperature Accessory with Laser Sight, model ATIR3, measures infrared energy in it's cone of view and converts it into temperature readings on your meter using the mVDC scale.

• Measures temperature without contact
• 8:1 field of view
• Laser sight included
• Select °F or °C
• Great for fast surface temperature measurement

Includes

• Infrared Temperature Accessory - ATIR3
• 9V Battery (installed)
• Operator's Manual

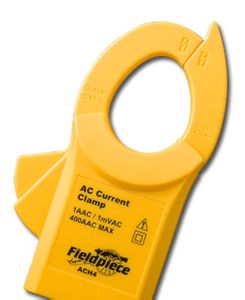

ACH4 400A Amp Clamp Accessory Head by Fieldpiece

The ACH4 current clamp is a small size accessory head for quickly reading up to 400 AC amps. The claw feature on the clamp makes it easy to quickly pick out the wire you need to measure. Once the current carrying conductor is isolated, the amperage is converted to mVAC for reading directly on the meter. The ACH4 works with the Fieldpiece "Stick" meter, EHDL1 Electronic Handle, EH4W Wireless Handle, DL3 Data Logger, the HG2 and HG3 HVAC Guide® System Analyzers, or any other digital multimeter (with mVAC range) connected by Fieldpiece ADLS2 detachable silicone leads or AHDL1 handle adapter.

Features

• Connect directly to any Fieldpiece stick meter (shown attached to HS36)
• Remote the amp clamp for hard to reach areas using our deluxe silicone leads with detachable probe tips (model ADLS2)
• Angled jaw opens to 1.8 inches and makes singling out a wire fast and easy

Included

• 400A Amp Clamp Accessory - ACH4
• Operator's Manual

AUA2 Milliamps & Microamps Accessory Head by Fieldpiece

Solve those "no heat" calls fast and efficiently with the Fieldpiece Milliamps & Microamp Accessory, model AUA2. The head converts microamps (for flame rectifier diode) and milliamps (for heat anticipators and control circuits) to a mV signal for direct current reading on any meter with mV ranges. For resolution of 0.1 micro/milliamps, use a meter that displays 0.1mV. The AUA2 includes quick connect and mini-plug adapters to convert your "stick" meter and electronic handles into a one-piece flame rectifier diode tester and heat anticipator checker

• Includes flame diode adapter kit (AQK3)
• Resolution: 0.1 for meters with 0.1mVDC
• Accuracy: DC: ±(1.0%rdg + 1dgt) AC: ±(1.5% + 2dgts)
• Max current: 200mA AC or DC
• No battery required

Like all of the Accessory Heads from Fieldpiece, the AUA2 gives you the ability to do more work from one small bag of tools. It is the only modular current instrument of its kind and provides you with valuable data in diagnosing "no heat" calls in the field when used with our meters, data logger and electronic handle.

Included

• Milliamps & Microamp Accessory - AUA2
• Flame Diode Lead Kit - AQK3
• Operator's Manual

AVH1 Volts Accessory Head by Fieldpiece

The Fieldpiece Voltage Accessory Head, model AVH1, converts volts to millivolts for use with our data loggers for direct display and recording of voltage through the meter's mV scale. Use it with the Fieldpiece Accessory Handles to record MIN and MAX while freeing up your meter for other tests. Cat III rated. Maximum voltage of 600V AC or DC.

Designed for HVACR, the Voltage Accessory, model AVH1, let's you log AC or DC voltage using our data logger model DL3 or get MIN or MAX volts when attached to our electronic handles, models EHDL1 and EH4W.

• Accuracy: DC: ±(0.5%rdg + 1 dgt); AC: ±(1.0%rdg + 4 dgts)
• Max voltage: 600V AC or DC
• Input impedance: 1MOhm
• Standard test leads plug in top
• Great for data logging
• Works with Fieldpiece accessory heads to free up your meter

Included

• Voltage Accessory - AVH1
• Operator's Manual
