Extech Multifunction Process Calibrator - PRC30
Item #:
EXT-PRC30
Brand:
Extech
Share this product:

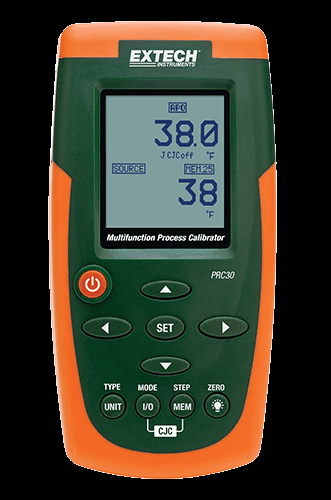

PRC30 Multifunction Process Calibrator by Extech
The PRC30 is a Multifunction Process Calibrator. This calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices. Featuring 24 volt loop power, five user adjustable calibration presets, and temperature output in Fahrenheit, Celsius, and millivolts. Product includes test leads, alligator clips, thermocouple calibration cable, universal calibration cable, 100-240V AC universal adapter with 4 plugs, AA batteries, hard case, and user manual.
Features
- Palm-sized double molded housing and large dot-matrix backlit LCD
- Measures DC process signals
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Up to fi ve user adjustable calibration presets
- Displays output in terms of millivolts or temperature based on thermocouple tables
- 24V Loop Power
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple inputs
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Applications include
- Lab and Field Calibration and Verifi cation Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
- Temperature Control Process Troubleshooting
- Process devices calibration and simulation: Transducers, Transmitters, Indicators, Controllers, and Recorders
- Field test and service
- Bench research and development
Specifications | Range | Basic Accuracy |
DC Source | ||
Current | 0 to 24mA, -25% to +125% | ±(0.01% + 1 digit) |
Max. Load | 1000Ω @ 24mA | |
Voltage | 0 to 2000mV, 0 to 20V | ±(0.01% + 1 digit) |
mV/Temp | -5 to 55mV | ±(0.01% + 1 digit) |
Type J | -58 to 1832°F (-50 to 1000°C) | ±(0.05% + 2°F or 1°C) |
Type K | -58 to 2498°F (-50 to 1370°C) | ±(0.05% + 2°F or 1°C) |
Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 2°F or 1°C) |
Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 2°F or 1°C) |
Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
DC Measure | ||
Current | 0 to 50mA, -25% to +230% | ±(0.01% + 1 digit) |
Voltage | 0 to 1999mV / 2 to 20V | ±(0.01% + 1 digit) / auto range |
mV/Temp | -10 to 60mV | ±(0.01% + 1 digit) |
Type J | -58 to 1832°F (-50 to 1000°C) | ±(0.05% + 1.8°F or 1°C) |
Type K | 58 to 2498°F (-50 to 1370°C) | ±(0.05% + 1.8°F or 1°C) |
Type T | -184 to 752°F (-120 to 400°C) | ±(0.05% + 1.8°F or 1°C) |
Type E | -58 to 1382°F (-50 to 750°C) | ±(0.05% + 1.8°F or 1°C) |
Type C, R, S | 32 to 3182°F (0 to 1750°C) | ±(0.05% + 2°F or 1°C) |
Type N | -58 to 2372°F (-50 to 1300°C) | ±(0.05% + 2°F or 1°C) |
Loop Power | 24V | |
Meter Dims (LxWxH) | 6.3" x 3.2" x 1.7" (159 x 80 x 44mm) | |
Meter Wt | 8.4oz (236g) - not including battery weight |
