Extech 412400 Multifunction Process Calibrator
Item #:
EXT-412400
Brand:
Extech
Share this product:

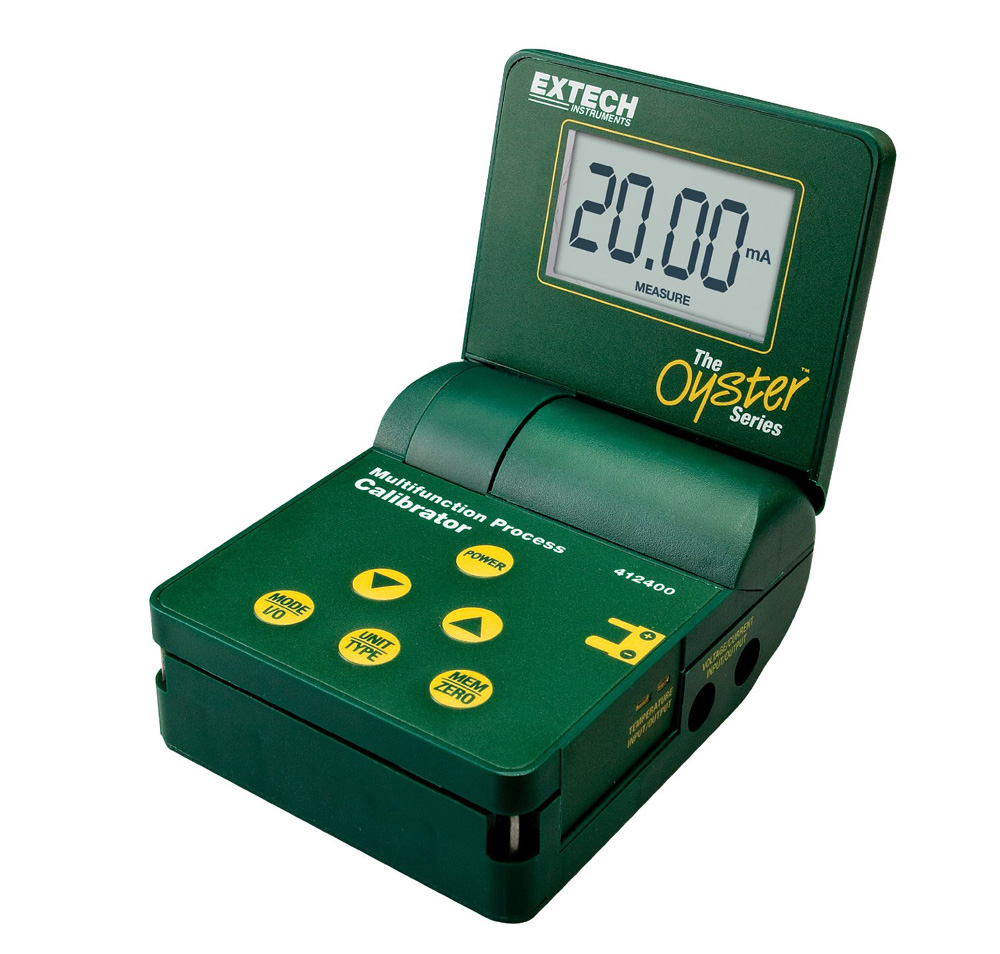

412400 Multifunction Process Calibrator by Extech
Features
- Source 0 to 24mA with 0.01mA resolution
- Measure 0 to 50mA (0.1mA resolution)
- Select Type J, K, or T thermocouple for precision calibrations in °F/°C or mV
- Output 0 to 1999mV or 0 to 10.00V
- Measure 0 to 19.99V
- Single/continuous step function for Voltage and Current
- Self-contained 24V loop power supply drives current loads up to 1000Ω
- Memory for 5 user settable output values of each type for fast calibrations
Includes
- Six AA batteries
- Test leads with detachable alligator clips
- Temperature calibration cable with spade lug connector
- Carrying case
- Neckstrap
- 100V-240V AC Universal adaptor (50/60Hz)
| Display | 9999 count LCD |
| Meter Power | Six (6) 1.5V 'AA' batteries or AC adaptor |
| Auto Power OFF | Meter automatically powers off after 10 minutes of inactivity (can be disabled) |
| Current output capability | 24mA @ 1000 ohms |
| Loop Power | 24Vdc (1000 ohm max. load) |
| Accessories Supplied | Batteries, AC adaptor, Calibration cable, and User Guide |
| Battery Life | Approximately 7 hours @ 24mA output with 1000 ohm load |
| Power Supply | 9V DC @ 1A, 5.4 mm, center positive/barrel negative |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
| Storage Temperature | -20ºC to 60ºC (-4ºF to 140ºF) |
| Operating Humidity | Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF) |
| Storage Humidity | <80% |
| Operating Altitude | 2000meters (7000ft.) maximum. |
| Dimensions | 96 x 118 x 45mm (3.8 x 4.7 x 1.8") folded |
| Weight | 340g (12 oz.) |
Mode |
Function |
Range |
Resolution |
Accuracy |
Measure |
Voltage |
0 to 20.00V |
1mV to 1999mV 10mV thereafter |
±(0.075% of rdg + 1d)
or
± 3 digits
Whichever is greater |
Current |
0.00 to 50.00mA |
0.01mA |
||
% |
-25% to +230% |
0.1% |
||
Source |
Voltage |
0 to 10.00V |
1mV to 1999mV 10mV thereafter |
±(0.075% of rdg + 1d)
or
± 3 digits
Whichever is greater |
Current |
0.00 to 24.00mA |
0.01mA |
||
% |
-25.0 to 125.0% |
0.1% |
Mode |
Function |
Range |
Resolution |
Accuracy |
Source & Measure |
Type J |
-58 to 1830ºF -50 to 1000ºC |
0.1o < 1000º 1.0o ≥ 1000º |
±(0.15% rdg + 1.8ºF/ 1ºC) |
Type K |
-58 to 2498ºF -50 to 1370ºC |
|||
Type T |
-184 to 752ºF -120 to 400ºC |
