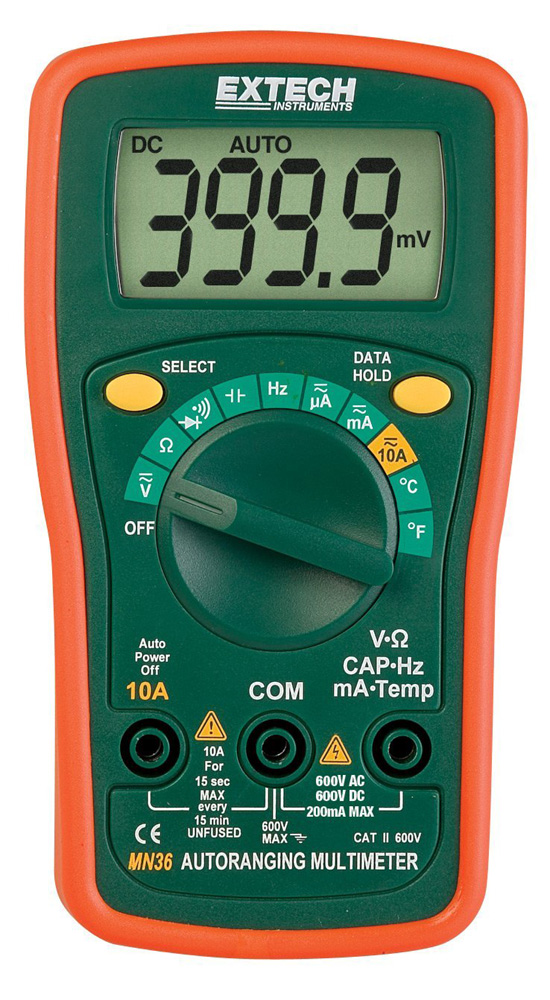

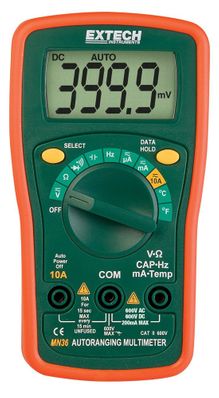

Extech MN36 Digital Mini MultiMeter

Item #:
EXT-MN36
Brand:
Extech
Extech MN36 Digital Mini MultiMeter
$39.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Extech MN36 Digital Mini MultiMeter

Extech MN36 Digital Mini MultiMeter

$39.99

Discontinued


MN36 Digital Mini MultiMeter by Extech

Features

  • Large easy to read digital display
  • Measure AC and DC Voltage to 600V
  • DC Current function to 10A
  • Thermocouple Temperature measurements to 1400°F (750°C)
  • Resistance tests with Continuity and Diode functions
  • Manual ranging model (MN35) with 9V and 1.5V Battery test
  • Autoranging model (MN36) with AC Current, Capacitance and Frequency measurements
  • Convenient mini size with protective rubber holster and tilt stand
  • Data Hold locks reading in the display
  • Includes protective rubber holster, battery, Test leads and Type K thermocouple probe
General Specifications

Accuracy Stated at 73°F ±10°F (23°C ±5 °C) and less than 70% RH
Diode Test Test current of 0.6mA maximum, open circuit voltage 1.5V DC typical
Continuity Check Audible signal will sound if the resistance is less than approximately <8Ω
Temperature sensor Requires type K thermocouple
Input Impedance 10MΩ (VDC) and 4.5MΩ (VAC)
Display 3999 count LCD
Overrange "OL" is displayed
Polarity Automatic (no indication for positive polarity); Minus (‐) sign for negative polarity.
Measurement Rate 3 times per second, nominal
Low Battery Battery symbol is displayed if battery voltage drops below operating voltage
Batteries Requires (2) AAA batteries
Fuses mA range; 250mA/250V fast blow 10A range, no protection
Operating Temp 32°F to 104°F (0°C to 40°C)
Storage Temp -4°F to 140°F ( ‐20°C to 60°C)
Relative Humidity Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
Operating Altitude 7000ft (2000 meters) maximum
Weight 5.4 oz. (153g)
Size 5.43" x 2.83" x 1.5" (138mm x 72mm x 38mm)
Safety For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III.

Electrical Specifications
Function
Range
Accuracy
DC Voltage (V DC)
400.0mV
±(0.5% reading + 4 digits)
4.000V
±(0.8% reading + 4 digits)
40.00V
400.0V
600V
AC Voltage (V AC)
50-60Hz
40-400Hz
4.000V
±(0.8% rdg + 4 d)
±(2% rdg + 5 d)
40.00V
±(1.2% rdg + 5 d)
400.0V
600V
DC Current
400.0µA
±(1.2% reading + 4 digits)
4000µA
40.00mA
200.0mA
10A
±(2.5% reading + 4 digits)
AC Current (40 to 400Hz)
400.0µA
±(1.5% reading + 5 digits)
4000µA
40.00mA
200.0mA
10A
±(3% reading + 5 digits)
Resistance
400.0Ω
±(1.2% reading + 4 digits)
4.000kΩ
40.00kΩ
40.00kΩ
4.000MΩ
20.00MΩ
±(3.0% reading + 5 digits)
Capacitance
4.000nF
Not specified
40.00nF
±(3.0% reading + 10 digits)
400.0nF
4.000µF
40.00µF
Not specified
100µF
Frequency
10.00Hz
±(1.0% reading + 4 digits) 10Hz to 1MHz
Sensitivity: 5.0Vrms
100Hz
1.000kHz
10.00kHz
100.0kHz
1.000MHz
5.000MHz
Not specified
Temp °F
Temp °C
40 to 1400°F
-20 to 750°C
-40 to 650°F; ±(1.0% rdg + 10 digits)
651 to 1400°F; ±(3% rdg + 10 digits)
-20 to 400°C; ±(1.0% rdg + 10 digits)
400 to 750°C; ±(3% rdg + 10 digits)
(probe accuracy not included)
