Extech MN26T MiniTec Autoranging Digital MultiMeter
Item #:
EXT-MN26T
Brand:
Extech
Share this product:

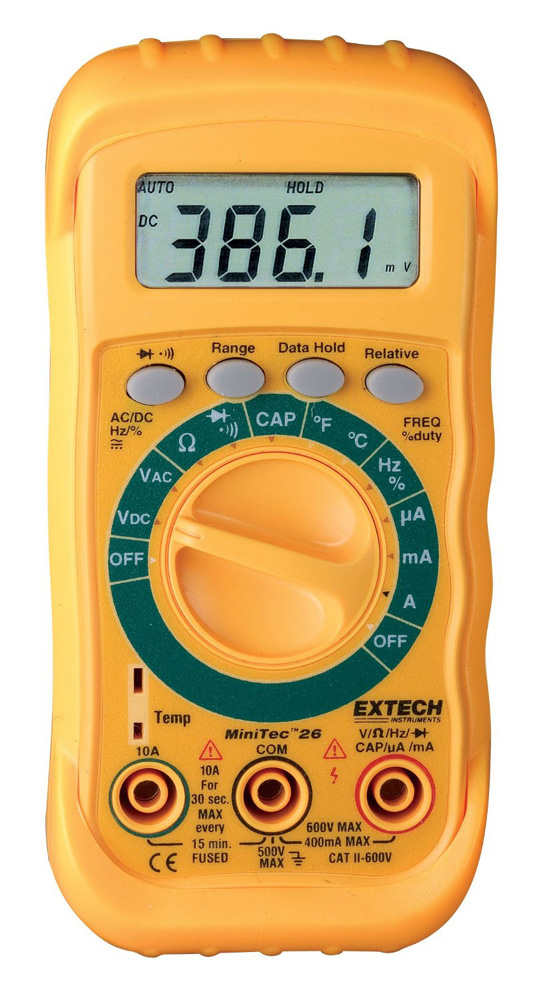

MN26T MiniTec Autoranging Digital MultiMeter by Extech
Features
- 4000 counts on large LCD with full function indication
- Measures AC/DC Voltage and Current, Resistance, Capacitance, Frequency and Temperature
- Temperature measurements to 1400°F (760°C)
- Duty Cycle, Continuity and Diode test
- Autoranging with manual range override
- 10A fuse protection
- Overload protection and indication
- Auto power off saves battery life
- Includes protective rubber holster, general purpose bead wire Type K temperature probe (Model MN26T), two 1.5V AAA batteries and test leads
| Diode Test | Test current of 0.3mA maximum, open circuit voltage 1.5V DC typical |
| Continuity Check | Audible signal will sound if the resistance is less than approximately 30Ω, test current <0.7mA |
| Input Impedance | 7.5MΩ (VDC and VAC) |
| Display | 4000 count LCD |
| Overrange indication | "OL" is displayed |
| Polarity | Automatic (no indication for positive polarity); Minus (-) sign for negative polarity. |
| Measurement Rate | 2 times per second, nominal |
| Auto Power Off | Meter automatically shuts down after 15 minutes of inactivity |
| Low Battery Indication | 'BAT' is displayed |
| Batteries | Requires two AAA batteries |
| Fuses | mA, µA ranges, 0.5A/250V fast blow 10A range, 10A/250V fast blow |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | <70% operating, <80% storage |
| Operating Altitude | 7000ft (2000 meters) maximum. |
| Weight | 9.17 oz. (260g). |
| Size | 4.78" x 2.38" x 1.57" (121.5mm x 60.6mm x 40mm) |
| Safety | For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III. |
Function |
Range |
Resolution |
Accuracy |
DC Voltage (V DC) |
400mV |
0.1mV |
±(0.5% reading + 2 digits) |
4V |
0.001V |
±(1.0% reading + 2 digits) |
|
40V |
0.01V |
||
400V |
0.1V |
||
600V |
1V |
±(1.5% reading + 2 digits) |
|
AC Voltage (V AC) (40 - 400Hz) (40 - 200Hz for 400mV, 4V ranges) |
400mV |
0.1mV |
±(2.0% reading + 30 digits) |
4V |
0.001V |
±(1.5% reading + 3 digits) |
|
40V |
0.01V |
||
400V |
0.1V |
||
600V |
1V |
±(2.0% reading + 4 digits) |
|
DC Current (A DC) |
400µA |
0.1µA |
±(1.5% reading + 3 digits) |
4000µA |
1µA |
||
40mA |
0.01mA |
||
400mA |
0.1mA |
||
10A |
0.01A |
±(2.5% reading + 5 digits) |
|
AC Current (A AC) (40 - 400Hz) (40 - 200Hz for 400µA, 4mA ranges) |
400µA |
0.1µA |
±(1.8% reading + 5 digits) |
4000µA |
1µA |
||
40mA |
0.01mA |
||
400mA |
0.1mA |
||
10A |
0.01A |
±(3.0% reading + 7 digits) |
|
Resistance |
400Ω |
0.1Ω |
±(1.2% reading + 4 digits) |
4kΩ |
0.001kΩ |
±(1.2% reading + 2 digits) |
|
40kΩ |
0.01kΩ |
||
400kΩ |
0.1kΩ |
||
4MΩ |
0.001MΩ |
||
40MΩ |
0.01MΩ |
±(2.0% reading + 3 digits) |
|
Capacitance |
4nF |
0.001nF |
±(5.0% reading + 10digits) |
40nF |
0.01nF |
±(5.0% reading + 7 digits) |
|
400nF |
0.1nF |
±(3.5% reading + 5 digits) |
|
4µF |
0.001µF |
||
40µF |
0.01µF |
||
200µF |
0.1µF |
±(5.0% reading + 5 digits) |
|
Frequency |
9.999Hz |
0.001Hz |
±(1.5% reading + 5 digits) |
99.99Hz |
0.01Hz |
||
999.9Hz |
0.1Hz |
±(1.2% reading + 2 digits) |
|
9.999kHz |
0.001kHz |
||
99.99kHz |
0.01kHz |
||
999.9kHz |
0.1kHz |
||
9.999MHz |
0.001MHz |
±(1.5% reading + 4 digits) |
|
Sensitivity: 0.8V rms min. @ 20% to 80% duty cycle and <100kHz; 5Vrms min @ 20% to 80% duty cycle and > 100kHz. |
|||
Duty Cycle |
0.1 to 99.9% |
0.1% |
±(1.2% reading + 2 digits) Pulse width: 100µs - 100m |
Temp °F |
4 to 1400°F |
1°F |
±(3.0% reading + 3 digits) (probe effect additional) |
Temp °C |
-20 to 760°C |
1°C |
|
