Extech EC600 Waterproof Conductivity Kit
Item #:
EXT-EC600
Brand:
Extech
Share this product:

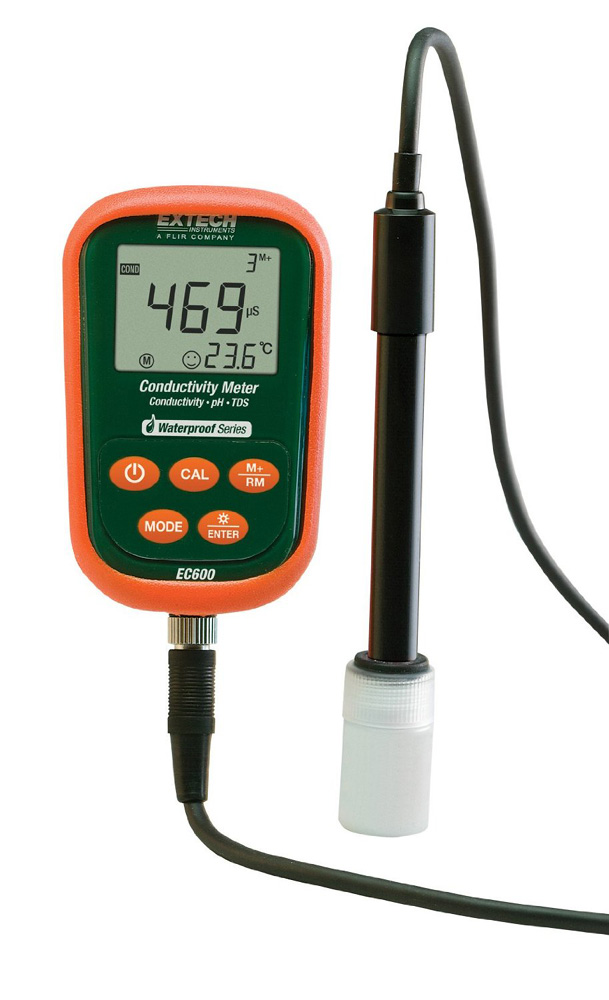

EC600 Waterproof Conductivity Kit by Extech
Features
- Waterproof housing (meets IP57)
- Automatic one button pH calibration (4, 7, and 10pH)
- Choice of 3 point pH calibration for better accuracy
- One point Conductivity calibration - automatically recognizes 8 calibration solutions from USA, Europe and China series
- Automatic Temperature Compensation (non-linear compensation for purified water <10μS/cm to improve measuring accuracy)
- Memory stores up to 300 readings with series number, measured value and temperature
- Large blue backlit dual LCD display
- Auto power off saves battery life with disable function
- Complete with pH/mV/Temperature electrode, polymer Conductivity cell, pH calbration solutions (4, 7, and 10pH), Conductivity calibration solution (1413μS), 2 AA batteries, and hard carrying case
pH Specifications | |
Measuring range | -2.00 to 19.99 pH |
Resolution | 0.1/0.01 pH |
Accuracy | Meter only: ±0.01pH; with probe: ±0.02pH |
Input current | ≤ 2×10-12 Amperes |
Input impedance | ≥ 1×1012 Ω |
Stability | ±0.01 pH / 3hours |
Temp. Compensation range | 0 to 100°C (32 to 212°F) automatic (ATC) |
mV Specifications | |
mV/EH | Range: 1999 mV to 0 to 1999mV Resolution: 1 mV |
Accuracy | Meter: ±0.1% FS |
Conductivity Specifications | |
Conductivity | Range: 0.00 to 19.99 µS/cm;
20.0 to 199.9 µS/cm;
200 to 1999 µS/cm; 2.00 19.99 mS/cm;
20.0 to 199.9 mS/cm Resolution: 0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm |
TDS | Range: 0 to 100 g/L (Total Dissolved Solids) Resolution: 1 g/L |
Salinity | Range: 0 to 100 ppt Resolution: 1 ppt |
Resistivity | Range: 0 to 100 Mohms Resolution: 1 Mohms |
Accuracy | Meter only: ±1% F.S.; with probe: ±2% F.S. |
Electrode constant | 0.1 / 1 / 10 cm-1 |
Reference temperatures | 25, 20,and 18°C (77, 68, and 64°F) |
Temp. Compensation | 0 to 50°C (32 to 122°F) Automatic |
Other Technical Parameters | |
Data storage | 300 data groups |
Storage content | Data serial number, measurement value, unit of measure |
Power | Two 'AA' batteries (1.5V x 2) |
Size and weight | Meter: 65 × 120 × 31mm (2.6 x 4.7 x 1.2")/ 180g (6.3 oz) Case: 360 x 270 x 76mm (14.1 x 10.6 x 3") / 1.7kg (3.57 lbs) |
Quality/Safety certification | ISO-9001, CE and CMC |
Working Conditions | |
Environment temperature | 5 to 35 °C(41 to 95°F) |
Environmental humidity | ≤ 85% |
IP rating | IP57 Dustproof and waterproof |
