Extech EC400 ExStik Conductivity/TDS/Salinity Meter
Item #:
EXT-EC400
Brand:
Extech
Share this product:

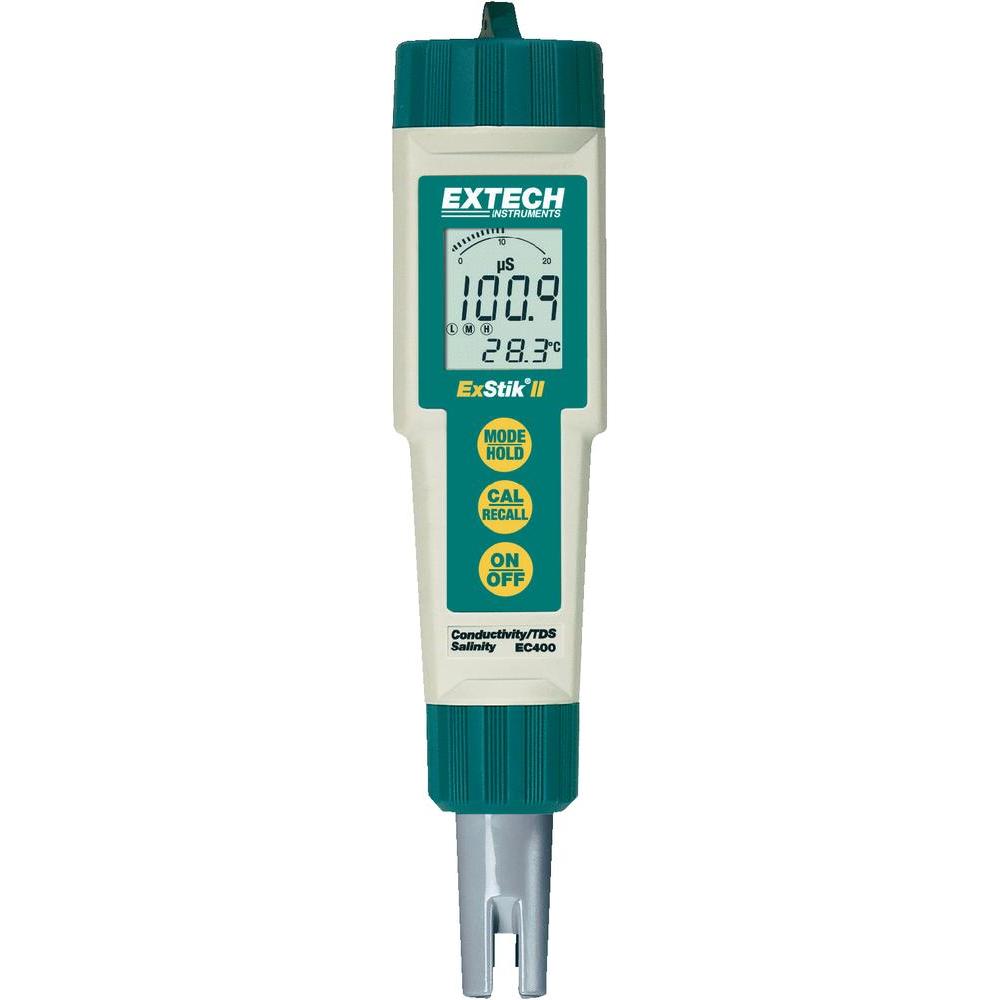

EC400 ExStik® Conductivity/TDS/Salinity Meter by Extech
Features
- Autoranging meter offers 3 ranges of measurements from tap water to wastewater and any aqueous solution requiring a conductivity, TDS or Salinity measurements
- Units of measure include μS/cm, mS/cm, ppm, ppt, mg/L, and g/L
- Adjustable Conductivity to TDS ratio factor from 0.4 to 1.0 - conveniently calculates the TDS value
- Large 3-1/2 digit (2000 count) Digital display with analog bargraph to indicate sample trends
- Data Hold, Auto Power Off and low battery indication
- Automatic Temperature Compensation of 2% per °C
- Simultaneous display of Conductivity, TDS, or Salinity plus Temperature
- Internal memory stores up to 25 labeled readings for easy recall
- Self calibration of electronics on power up
- Easy to replace Conductivity cell module
- Waterproof design to withstand wet environment – meets IP57 standard
- EC400 includes meter and Conductivity cell*, protective sensor cap, sample cup with cap, four CR2032 button batteries, and 48"(1.2m) neckstrap. Order Conductivity standards separately
- Optional EC410 kit includes EC400 ExStik® II Conductivity/TDS/Salinity/Temperature Meter, with sensor, protective cap, 84μS/cm, 1413μS/cm and 12880μS/cm calibration standards (30mL bottle each), weighted base, 3 sample plastic cups with caps, four 3V CR-2032 button batteries, 48" (1.2m) neckstrap, and carrying case
Display | 2000 count LCD with Bargraph |
Conductivity ranges | 0 to 199.9µS/cm 200 to 1999µS/cm 2.00 to 19.99mS/cm |
TDS ranges | 0 to 99.9ppm or mg/L |
TDS ranges (Variable ratio) | 100 to 999ppm or mg/L 1.00 to 9.99ppt or g/L |
Salinity range | 0 to 99.9ppm 100 to 999ppm 1.00 to 9.99ppt |
TDS Ratio | 0.4 to 1.0 adjustable |
Salinity Ratio | 0.4 to 0.6 automatic |
Conductivity ATC | 2.0% per °C |
Temperature Range | 0.0°C to 65.0°C (32.0°F to 149°F) |
Temperature Resolution | 0.1 up to 99.9, 1 >100 |
Temperature Accuracy | ±1°C; 1.8°F (from 0 to 50°C; 32 to 122°F) ±3°C; 5.4°F (from 50 to 65°C; 122 to 149°F) |
Conductivity ATC Range | 0.0°C to 60.0°C (32.0°F to 140°F) |
Accuracy | Conductivity: ±2% full scale TDS: ±2% full scale Salinity: ±2% full scale |
Measurement Storage | 25 tagged (numbered) readings |
Low battery indication | 'BAT' appears on the LCD |
Power | Four (4) CR2032 Lithium Ion Batteries |
Auto power off | After 10 minutes (override available) |
Operating conditions | 5°C to 50°C (23°F to 122°F) |
Dimensions | 40 x 187 x 40 mm (1.6 x 7.4 x 1.6") |
Weight | 87 g (3.1 oz) |
