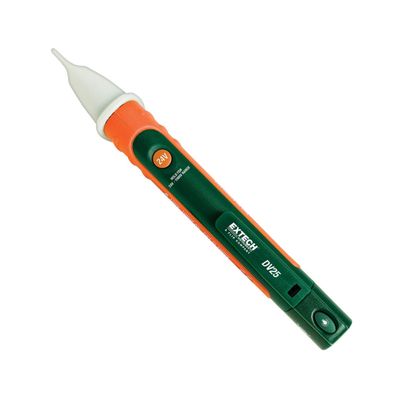

Extech DV25 Dual-Range AC Voltage Detector with Flashlight
Item #:
EXT-DV25
Brand:
Extech
Share this product:
DV25 Dual-Range AC Voltage Detector with Flashlight by Extech
Features
- Non-contact detection of AC Voltage in 2 ranges: 24 to 1000VAC; 100 to 1000VAC
- CAT IV-1000V safety rating
- For use on 50/60Hz circuits
- Rugged double-molded housing
- Tip fits into outlets or against wire insulation testing
- Audible and Visual voltage indication
- Built-in bright flashlight with On/Off button
- Compact size with pocket clip
- Dimensions: 6.25 x 1" (159 x 25mm); Weight: 1.48oz (42g)
- Complete with two AAA batteries
Voltage Sensitivity | 100V to 1000V AC, 50/60Hz; 24V to 1000V AC, 50/60Hz |
Detection distance | <0.2" |
Operating Temperature | 32 to 122°F (0 to 50°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Altitude | Operating below 2000 meters |
Relative Humidity | 80% up to 31°C, decreasing to 50% at 50°C |
Battery | 2 AAA batteries |
Dimensions/Weight | 6.25x1" (159x25mm) / 1.5oz (42g) |
Safety | For indoor use and in accordance with Overvoltage Category IV-1000V, Pollution Degree 2. |
