Extech 10 Inch CAT IV AC Flexible Clamp-On Adapters - CA3010
Item #:
EXT-CA3010
Brand:
Extech
Share this product:

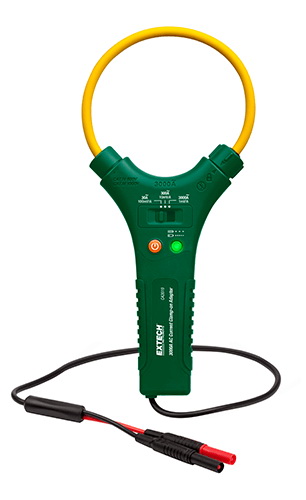

CA3010 10 Inch CAT IV AC Flexible Clamp-On Adapters by Extech
Expand your meter's capabilities to measure AC Current up to 3000A. Fit most MultiMeters or Clamp Meters with standard shrouded banana plug sockets. Flexible clamp jaw easily wraps around bus bars and cable bundles where standard clamp adaptors and meters can't. The thin 7.5mm cable diameter easily fits into tight spaces. Choose between a 10" (25.4cm) or 18" (45.7cm) clamp cable length.
Features
- Model CA3010 - 10" (25.4cm) flexible clamp cable; Model CA3018 - 18" (45.7cm) flexible clamp cable
- 7.5mm cable diameter fits into tight spaces and around large conductors
- Measures AC Current in three ranges
- Easy twist clamp cable closure to Lock or Open
- Compatible with most multimeters and clamp meters with standard sized banana plug inputs
- CAT III-1000V, CAT IV-600V category safety rating (for use only with multimeters that have equivalent CAT ratings)
- Battery capacity indicator provides battery condition
- Complete with built-in flex clamp cable, 6.6ft (2m) lead with banana plugs, and two AAA batteries
AC Current Ranges | 30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output) |
Max Resolution | 0.01A |
Basic Accuracy | ±3%FS (45 to 500Hz) |
Flex Cable Diameter | 0.3" (7.5mm) |
Flex Cable Tip Diameter | 0.51" (13mm) |
Dimensions | Model CA3010: 11 x 4.7 x 1" (280 x 120 x 25mm); Model CA3018: 13.8 x 5.1 x 1" (350 x 130 x 25mm) |
Weight | Model CA3010: 6oz (170g); Model CA3018: 7.1oz (200g) |
