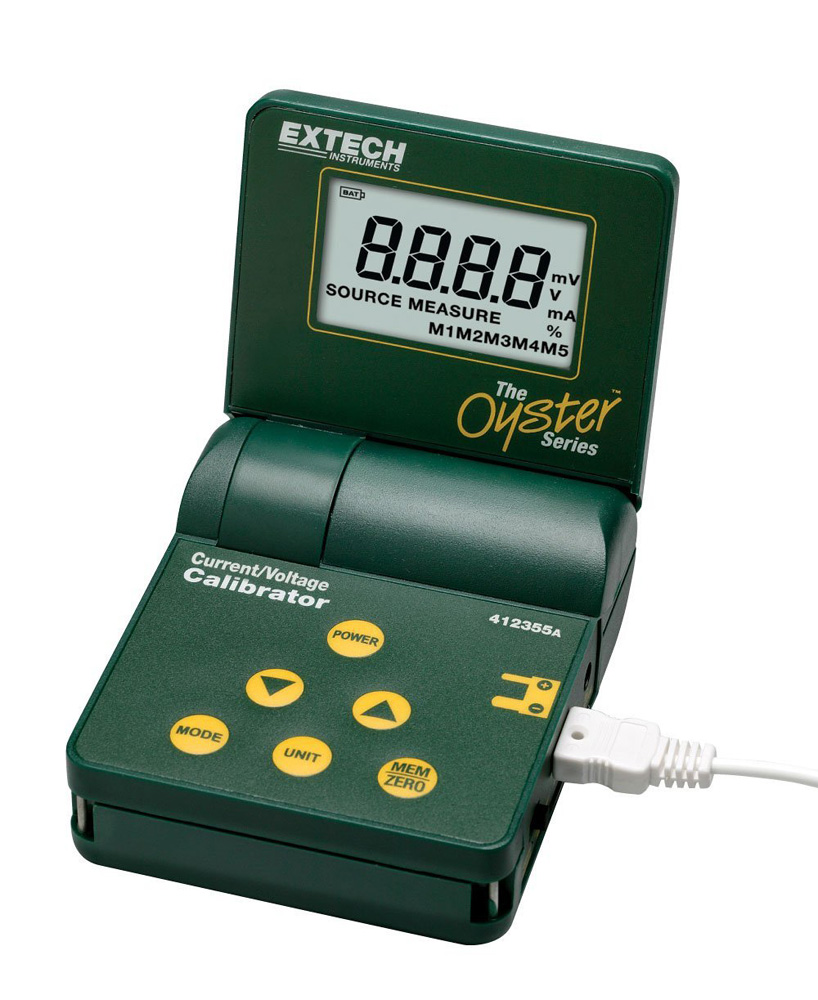

Extech 412355A Current and Voltage Calibrator/Meter
Item #:
EXT-412355A
Brand:
Extech
Share this product:
412355A Current and Voltage Calibrator / Meter by Extech
Features
- Upgraded models now feature super large LCD display and touch keypad
- LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
- Five stored calibration values for fast calibrations
- 412355A Current + Voltage Calibrator provides adjustable 0 to 24mA and 0 to 20V calibration source
- 412300A Current Calibrator provides 0 to 24mA output displayed as mA or % and provides 24VDC power to measure a two-wire current loop
- Complete with 9V battery, calibration cable with spade lug terminals, carrying case, and 100V-240V AC Universal Adaptor (50/60Hz)
Applications
- Setup and calibration of process devices such as transducers, indicators, recorders and controllers
- Troubleshooting and Field service
- Product design
Includes
- 9V battery
- Calibration cable with spade lug terminals
- Carrying case
- 100V-240V AC Universal Adaptor (50/60Hz)
| Display | 9999 count LCD |
| Meter Power | 9 volt battery or 9V AC adaptor |
| Auto Power OFF | Meter automatically powers off after 10 minutes of inactivity |
| Current output capability | 24mA at 1000 ohms |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
| Storage Temperature | -20ºC to 60ºC (-4ºF to 140ºF) |
| Operating Humidity | Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF) |
| Storage Humidity | <80% |
| Operating Altitude | 2000meters (7000ft) maximum |
| Dimensions | 96 x 118 x 45mm (3.8 x 4.7 x 1.8") folded |
| Weight | 340g (12 oz) |
| Accessories Supplied | 9V battery, AC adaptor and calibration cable with spade lugs |
Mode |
Function |
Range |
Resolution |
Accuracy (% of reading) |
Measure |
Voltage |
0 to 2000mV |
1mV |
± (0.075% + 1 digit) or ± 3
digits, whichever is greater |
2.00 to 20.00V |
0.01V |
|||
Current |
0.00 to 50.00mA |
0.01mA |
||
% |
-25.0 to 230.0% |
0.1% |
||
Source |
Voltage |
0 to 2000mV |
1mV |
|
2.00 to 20.00V |
0.01V |
|||
Current |
0.00 to 24.00mA |
0.01mA |
||
% |
-25.0 to 125.0% |
0.1% |
