Extech 412300A Current Calibrator/Meter
Item #:
EXT-412300A
Brand:
Extech
Share this product:

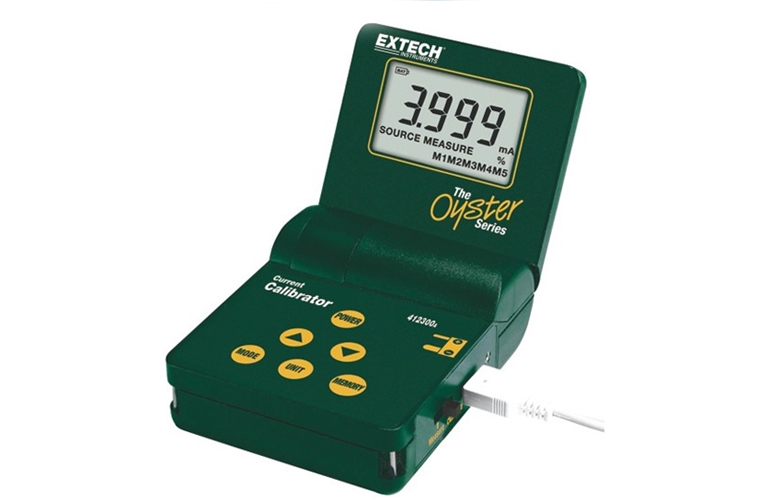

412300A Current Calibrator/Meter by Extech
Features
- Upgraded models now feature super large LCD display and touch keypad
- LCD displays readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
- Five stored calibration values for fast calibrations
- 412355A Current + Voltage Calibrator provides adjustable 0 to 24mA and 0 to 20V calibration source
- 412300A Current Calibrator provides 0 to 24mA output displayed as mA or % and provides 24VDC power to measure a two-wire current loop
- Complete with 9V battery, calibration cable with spade lug terminals, carrying case, and 100V-240V AC Universal Adaptor (50/60Hz)
Applications
- Setup and calibration of process devices such as transducers, indicators, recorders and controllers
- Troubleshooting and Field service
- Product design
Includes
- 9V battery
- Calibration cable with spade lug terminals
- Carrying case
- 100V-240V AC Universal Adaptor (50/60Hz)
| Display | 9999 count LCD |
| Meter Power | 9 volt battery or 9V AC adaptor |
| Auto Power OFF | Meter automatically powers off after 10 minutes of inactivity |
| Current output capability | 24mADC at 1000 ohms |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF) |
| Storage Temperature | -20ºC to 60ºC (-4ºF to 140ºF) |
| Operating Humidity | Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF) |
| Storage Humidity | <80% |
| Operating Altitude | 2000meters (7000ft) maximum |
| Dimensions | 96 x 118 x 45mm (3.8 x 4.7 x 1.8") folded |
| Weight | 340g (12 oz) |
| Accessories Supplied | 9V battery, AC adaptor and calibration cable with spade lugs |
Mode |
Function |
Range (Resolution) |
Accuracy (% of reading) |
Measure |
Current |
0 to 50mA (0.01mA) |
± (0.075% + 1 digit) or ± 3
digits, whichever is greater |
Percent (%) |
-25% to +230% (0.1%) |
||
Source |
Current |
0 to 24mA (0.01mA) |
|
Percent (%) |
-25% to +125% (0.1%) |
||
Power |
Loop Power |
24VDC, <50mA |
|
