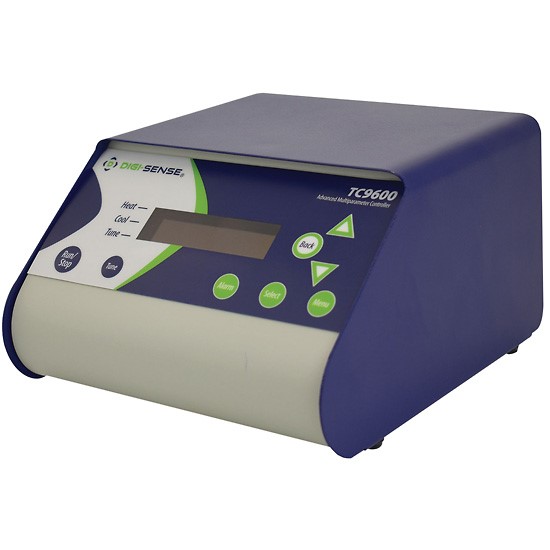

Digi-Sense TC9600 Benchtop Temperature Controller with USB Output, for Thermocouple, RTD, or Thermistors; 115 VAC - WD-89800-13

WD-89800-13 TC9600 Benchtop Temperature Controller with USB Output, for Thermocouple, RTD, or Thermistors; 115 VAC by Digi-Sense

The benchtop single-loop temperature controllers are designed to regulate a user-defined set point temperature. The microprocessor control provides heating/cooling tolerances for demanding applications found in laboratory or industrial environments. Temperature scale selectable to read in °F, °C, K (Kelvin), or °R (Rankine). An auto-tuning function provides automatic configuration of the PID parameters with minimum user configuration required. Nonvolatile memory stores all user-defined information.

A convenient output receptacle, located on the back of the units, allows for direct plug-in of heaters and other devices. All models accept eight thermocouple types (J, K,N,R,S,T B, and E). Safety features include a loop-break alarm, overtemperature and timer cutoffs, separate fuses for instrument and output receptacle, and audible/visible out-of-range alarms.

The advance controllers also include a USB communication port, audible alarm, external alarm relay output, and a detachable power cord. Free software features real-time graphing, logging of measured temperature and set point temperature, help menu, and ability to interface with other Windows-based programs.

Includes

grid support bracket, electrical noise canceling ferrite clip, and 6 ft power cord with U.S. standard plug.

• Simple on/off control to sophisticated auto-tuning PID control
• Simultaneous view measured value and set point on two-line display
• Front panel indicates output and alarm conditions
• Grid support bracket ideal for fume hood mounting
• Free software offers remote computer control of system operations
• Program up to nine ramp and soak profiles of up to 16 segments each
