Digi-Sense Professional Single Input Thermocouple Thermometer and NIST Traceable Calibration - WD-20250-18

Digi-Sense Professional Single Input Thermocouple Thermometer and NIST Traceable Calibration - WD-20250-18

$201.60

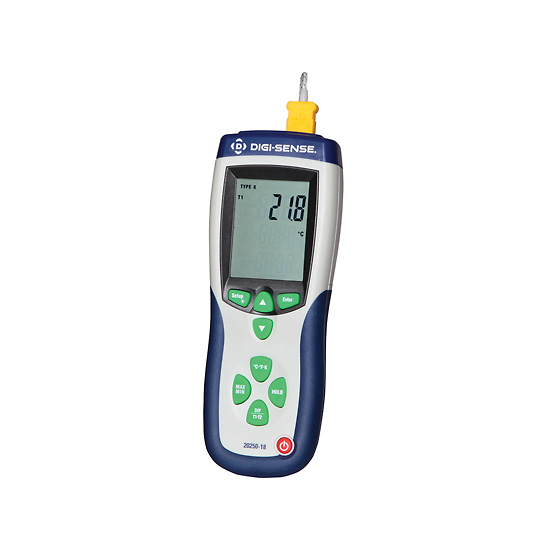

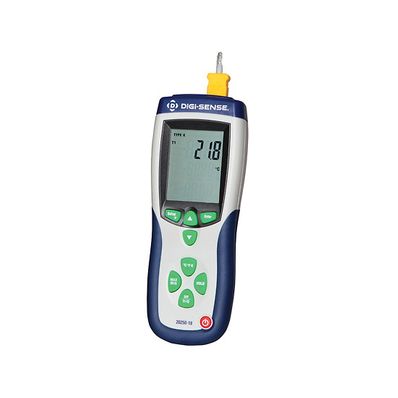

WD-20250-18 Professional Single Input Thermocouple Thermometer and NIST Traceable Calibration by Digi-Sense

Handheld thermocouple thermometers provide precise measurements when accuracy is a must, delivering dependable results every time! Each model is packed with distinctive features for use in a wide array of applications.

Features

  • Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
  • Large backlight LCD for easy viewing in dimly lit conditions
  • Minimum, maximum, and average readings, plus data Hold function
  • Display of temp differential (except model 20250-01)
  • Relative time clock on Min/Max/Avg provides a time reference for major events
  • Electronic offset function allows compensation of probe errors to maximize overall accuracy
  • User-selectable readout in °C, °F, or Kelvin (K) with 0.1 resolution
  • Simple, intuitive setup and operation
  • Auto power-off mode extends battery life
  • Ergonomic design fits comfortably in your hand
  • Data logging models available
  • Accept a wide variety of thermocouple probes
  • Infrared input port allows safe, noncontact measurements with optional IR wand
  • Heavy-duty construction withstands knocks and jars
  • Scan function for continuous reading in real time (except model 20250-18)
  • Data logging software features graphing function

Applications

  • Agricultural
  • Educational
  • Food processing
  • HVAC
  • Industrial
  • Laboratory
  • R&D
  • Preventive maintenance
Thermocouple (T/C) inputs 1 (type K)
Infrared (IR) input Yes
T/C range K: –328 to 2501°F (–200 to 1372°C)
IR Range –31 to 1022°F (–35 to 550°C)
Resolution 0.1°F/C below 1000°, 1°F/C above 1000°
T/C accuracy Above –148°F (–100°C): ±[0.15% rdg + 1.8°F (1°C)]
Below –148°F (–100°C): ±[0.5% rdg + 3.6°F (2°C)]
Differentials: ±[0.5% rdg + 1.8°F (1°C)]
IR accuracy Above 14°F (–10°C): ±[2.0% rdg + 3.6°F (2°C)]
Below 14°F (–10°C): ±9°F (5°C)
T/C–IR differentials: ±[2.0% rdg + 5.4°F (3°C)] above 14°F (–10°C); ±11°F (6°C) below 14°F (–10°C)
Data logging No
USB interface No
Relative time clock Yes
Offset compensation Yes
Temp differential Yes
Data Hold Yes
Max/Min/Avg Yes
°C, °F, or K units Yes
Scan function No
Auto power-off Yes
Dimensions 8" x 3" x 2" (20.1 x 7.5 x 5 cm)
Power One 9 V battery
Accessories included One flexible type K probe (per input), carrying case, battery, and NIST-traceable certificate with data and uncertainties
